GN728 Cabinet U Shape Handle, Budget, Aluminium



Type A - mounting from the back (threaded blind bore)

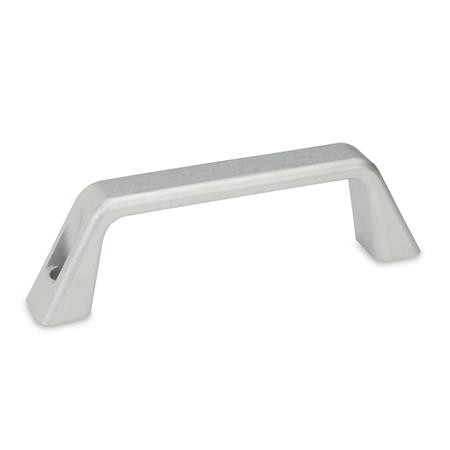

Type B - mounting from the operator's side

Select Values to Buy:

Tech Spec:



GN728 Cabinet U Shape Handle, Budget, Aluminium.

These cabinet U handles are a low cost variant in aluminium.

The installation can be carried out from the back (type A) as well as from the operators side (type B). The hole centre dimension is identical on all variants. As a result they can be mounted in pairs opposite each other.

Specification

Aluminium, pressure die casting

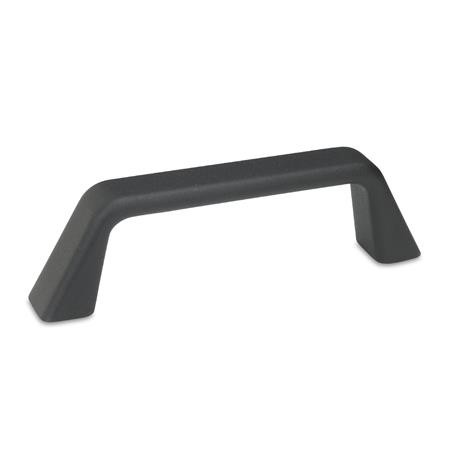

Plastic coated, black, RAL 9005, textured finish SW.

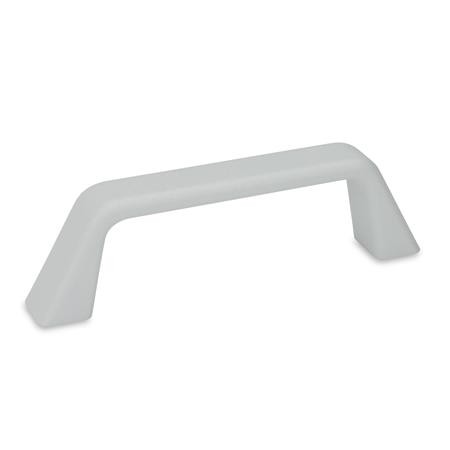

Plast coated, silver RAL 9006, textured finish SR

blank BL, tumbled.

RoHS compliant

Select / Deselect Visible Columns
PartCodel1TypeFinishbd1d2d3h1h2l2l3st1t2MaterialMass

GN728-120-A-SW120ASW22.5M66.41142.56.51471088106.5AL0.098
GN728-120-B-SW120BSW22.5M66.41142.56.51471088106.5AL0.14
GN728-120-A-BL120ABL22.5M66.41142.56.51471088106.5AL0.09
GN728-120-B-BL120BBL22.5M66.41142.56.51471088106.5AL0.08
GN728-120-A-SR120ASR22.5M66.41142.56.51471088106.5AL0.09
GN728-120-B-SR120BSR22.5M66.41142.56.51471088106.5AL0.08
GN728-180-A-SW180ASW27M88.413.547.57.521416510128.5AL0.192
GN728-180-B-SW180BSW27M88.413.547.57.521416510128.5AL0.174
GN728-180-A-BL180ABL27M88.413.547.57.521416510128.5AL0.18
GN728-180-B-BL180BBL27M88.413.547.57.521416510128.5AL0.19
GN728-180-A-SR180ASR27M88.413.547.57.521416510128.5AL0.18
GN728-180-B-SR180BSR27M88.413.547.57.521416510128.5AL0.17
