7116 Middle Pillar Die Sets, Pressfit Pillars and Bushes

Select Values to Buy:

Tech Spec:



7116 Middle Pillar Die Sets, Pressfit Pillars and Bushes

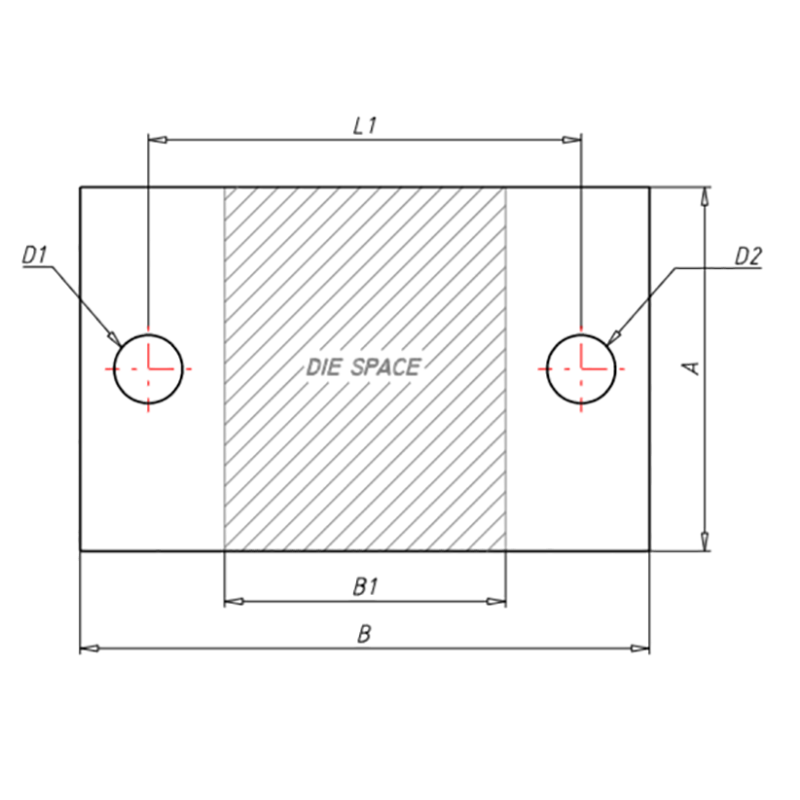

We are pleased to offer you a very simple ordering system for our standard die set range. By selecting your plate sizes + thickness you will then be prompted to select the pillar & bush lengths to suit. If you prefer to send us a drawing of your die set please send an email to our friendly sales team; alternatively give us a call.

Select Pressfit Pillars and Pressfit Bushes here.



Select / Deselect Visible Columns
Close
HideDie Space bShow
HideDie space AShow
HideDie Space BShow
HideTop Plate
Thickness
Show
HideBottom Plate
Thickness
Show
HideStripper PlateShow
HidePillar Diameter
d1
Show
HidePillar Diameter
d2
Show
HideL1Show
PartCodeDie Space bDie space ADie Space BTop Plate
Thickness
Bottom Plate
Thickness
Stripper PlatePillar Diameter
d1
Pillar Diameter
d2
L1Mass

7116-80-200-25-251158020025252019201506.28
7116-80-200-25-321158020025322019201507.16
7116-80-200-32-321158020032322019201508.04
7116-100-250-25-2514010025025252524251909.813
7116-100-250-25-32140100250253225242519011.18
7116-100-250-32-32140100250323225242519012.56
7116-125-250-32-32140125250323225242519015.7
7116-125-250-32-40140125250324025242519017.66
7116-125-250-40-40140125250404025242519019.6
7116-125-315-32-32190125315323225303124119.78
7116-125-315-32-40190125315324025303124122.53
7116-125-315-40-40190125315404025303124124.73
7116-125-355-32-32230125355323225303128122.29
7116-125-355-32-40230125355324025303128125.08
7116-125-355-40-40230125355404025303128127.87
7116-125-400-32-32275125400323225303132625.12
7116-125-400-32-40275125400324025303132628.26
7116-125-400-40-40275125400404025303132631.4
7116-160-250-32-32140160250323225242519020.1
7116-160-250-32-40140160250324025242519022.61
7116-160-250-40-40140160250404025242519025.12
7116-160-315-32-32190160315323225303124125.32
7116-160-315-32-40190160315324025303124128.49
7116-160-315-40-40190160315404025303124131.65
7116-160-355-32-32230160355323225303128128.54
7116-160-355-32-40230160355324025303128132.1
7116-160-355-40-40230160355404025303128135.67
7116-160-400-32-32275160400323225303132632.15
7116-160-400-32-40275160400324025303132636.17
7116-160-400-40-40275160400404025303132640.19
7116-160-450-32-32330160450323225303137636.17
7116-160-450-32-40330160450324025303137640.69
7116-160-450-40-40330160450404025303137645.22
7116-200-250-32-32140200250323225242519025.12
7116-200-250-32-40140200250324025242519028.26
7116-200-250-40-40140200250404025242519031.4
7116-200-315-32-32190200315323225303124131.65
7116-200-315-32-40190200315324025303124135.61
7116-200-315-40-40190200315404025303124139.56
7116-200-355-32-32230200355323225303128135.67
7116-200-355-32-40230200355324025303128140.13
7116-200-355-40-40230200355404025303128144.59
7116-200-400-32-32275200400323225303132640.19
7116-200-400-32-40275200400324025303132645.22
7116-200-400-40-40275200400404025303132650.24
7116-200-450-32-32325200450323225303137645.22
7116-200-450-32-40325200450324025303137650.87
7116-200-450-40-40325200450404025303137656.52
7116-250-250-32-32140250250323225242519031.4
7116-250-250-32-40140250250324025242519035.33
7116-250-250-40-40140250250404025242519039.25
7116-250-315-32-32190250315323225303124139.56
7116-250-315-32-40190250315324025303124144.51
7116-250-315-40-40190250315404025303124149.46
7116-250-355-32-32230250355323225303128144.59
7116-250-355-32-40230250355324025303128150.16
7116-250-355-40-40230250355404025303128155.74
7116-250-400-32-32275250400323225303132650.24
7116-250-400-32-40275250400324025303132656.52
7116-250-400-40-40275250400404025303132662.8
7116-250-450-32-32325250450323225303137656.52
7116-250-450-32-40325250450324025303137663.59
7116-250-450-40-40325250450404025303137670.65
7116-250-500-40-40350250500404032404140878.5
7116-250-500-40-50350250500405032404140888.31
7116-250-500-50-50350250500505032404140898.13
7116-315-315-32-32190315315323225303124149.85
7116-315-315-32-40190315315324025303124156.08
7116-315-315-40-40190315315404025303124162.31
7116-315-355-32-32230315355323225303128156.18
7116-315-355-32-40230315355324025303128163.2
7116-315-355-40-40230315355404025303128170.23
7116-315-400-32-32275315400323225303132663.3
7116-315-400-32-40275315400324025303132671.22
7116-315-400-40-40275315400404025303132679.13
7116-315-450-40-40300315450404032404135889.02
7116-315-450-40-503003154504050324041358100.15
7116-315-450-50-503003154505050324041358111.27
7116-315-500-40-40350315500404032404140898.91
7116-315-500-40-503503155004050324041408111.47
7116-315-500-50-503503155005050324041408124.03
7116-350-355-40-402203503554040~404128161.544
7116-355-400-40-40250355400404032404130889.18
7116-355-400-40-502503554004050324041308100.32
7116-355-400-50-502503554005050324041308111.47
7116-355-450-40-403003554504040324041358100.32
7116-355-450-40-503003554504050324041358112.86
7116-355-450-50-503003554505050324041358125.4
7116-355-500-40-403503555004040324041408111.47
7116-355-500-40-503503555004050324041408125.4
7116-355-500-50-503503555005050324041408139.34
7116-355-630-40-404803556304040324041538140.45
7116-355-630-40-504803556304050324041538158.01
7116-355-630-50-504803556305050324041538175.57
7116-400-400-40-402504004004040324041308100.48
7116-400-400-40-502504004004050324041308113.04
7116-400-400-50-502504004005050324041308125.6
7116-400-450-40-403004004504040324041358113.04
7116-400-450-40-503004004504050324041358127.17
7116-400-450-50-503004004505050324041358141.3
7116-400-500-40-403504005004040324041408125.6
7116-400-500-40-503504005004050324041408141.3
7116-400-500-50-503504005005050324041408157
7116-500-500-40-403505005004040324041408157
7116-500-500-40-503505005004050324041408176.63
7116-500-500-50-503505005005050324041408196.25
#38751.41~38754.1#

All Dimensions in mm



Pillars d1/d2
19/20 24/25 30/31 40/41
L 85
95
105
115 115 115
125 125 125
135 135 135
145 145 145 145
155 155 155 155
170 170 170 170
185 185 185 185
200 200 200 200
  225 225 225
  250 250 250
    275 275
    300 300
      325
      350
      400
Bushes d1
19/20 24/25 30/31 40/41
L 45 50 55 60
60 70 80 100
  100 100

Material A 50 (flame cut) Supplied as standard.
