7117: Middle Pillar Die Set

Close Next Previous

Demountable Pillar and Bush

7117: Middle Pillar Die Set

CAD Viewer

Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Based on your plate selection the pillar diameters are 18 and 19.

Please now select the length of pillar you require, the options available are based on the pillar diameter. The pillars you select will be fitted to the bottom plate.

Available Pillar Lengths:

70 80 90 100 110 120 130 140 150 160

Product Description

7117 Middle Pillar Die Set Demountable Pillars & Bushes

We are pleased to offer you a very simple ordering system for our standard die set range. By selecting your plate sizes + thickness you will then be prompted to select the pillar & bush lengths to suit. If you prefer to send us a drawing of your die set please contact our friendly sales team; alternatively give us a call.

Material A 50 (flame cut) Supplied as standard.

All Dimensions in mm

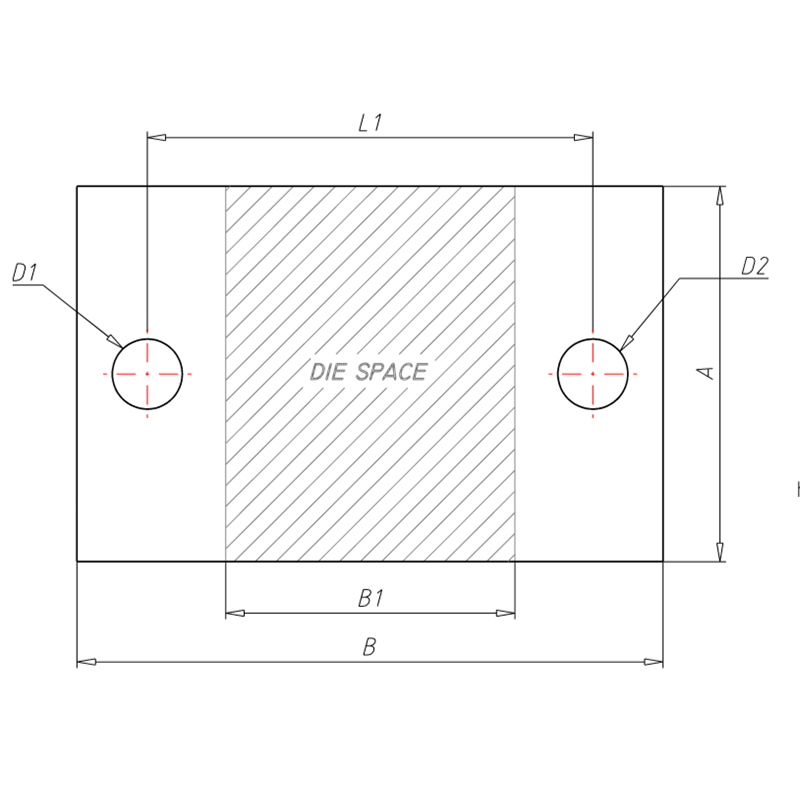

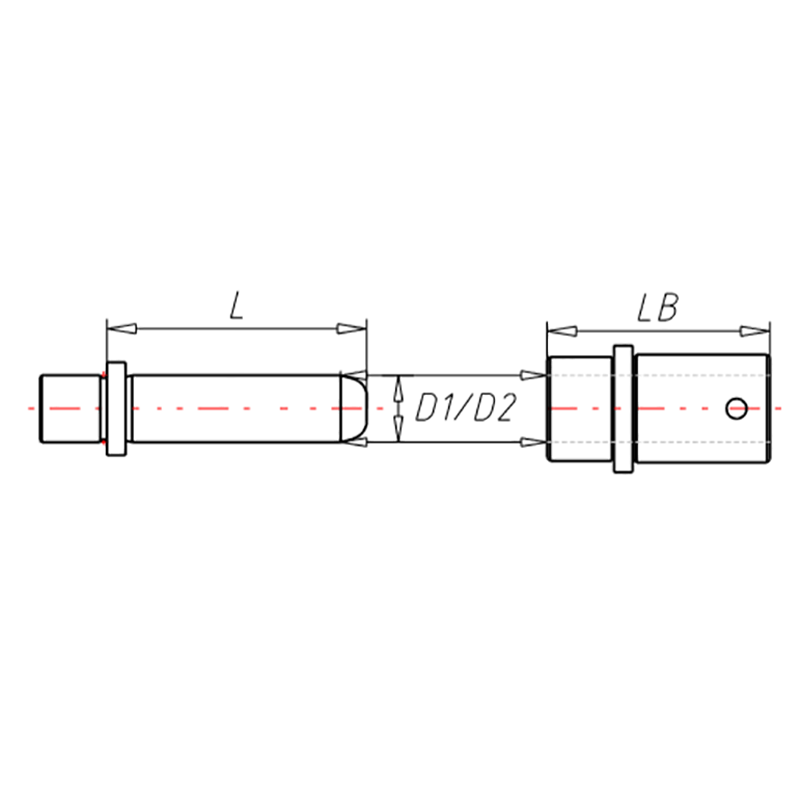

Pillars	D1/D2
Pillars	18/19	24/25	30/32	40/42
L	70	70
	80	80
	90	90
	100	100	100	100
	110	110	110	110
	120	120	120	120
	130	130	130	130
	140	140	140	140
	150	150	150	150
	160	160	160	160
		170	170	170
		180	180	180
			200	200
			220	220
			240	240
			280	280
Bushes	D1/D2
Bushes	18/19	24/25	30/32	40/42
LB	33	37	44	52
	50	55	60	67
	60	80	76	80
			90	100
