Die Sets & Press Tool Standard Parts > Die Sets
< Previous Product Next Product >

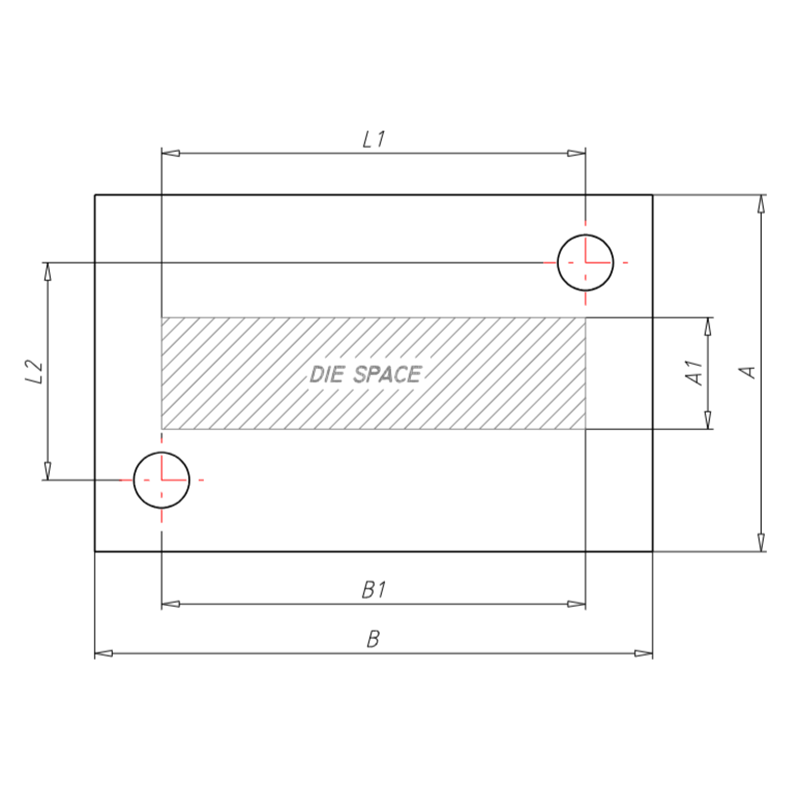

7126 Diagonal Pillar Die Sets - Pressfit Pillars & Bushes



images/300/7126_Diagonal_Pillar_Die_Set_Pressfit_Pillars___Bushes_drawing1_H.png

Select Values to Buy:

Tech Spec:



We are pleased to offer you a very simple ordering system for our standard die set range. By selecting your plate sizes + thickness you will then be prompted to select the pillar & bush lengths to suit. If you prefer to send us a drawing of your die set please send an email to our friendly sales team; alternatively give us a call.



Select Pressfit Pillars and Pressfit Bushes here.

Select / Deselect Visible Columns
Close
HideDie Space bShow
HideDie space AShow
HideDie Space BShow
HideDie Space aShow
HideTop Plate
Thickness
Show
HideBottom Plate
Thickness
Show
HideStripper PlateShow
HidePillar Diameter
d1
Show
HidePillar Diameter
d2
Show
HideL1Show
HideL2Show
PartCodeDie Space bDie space ADie Space BDie Space aTop Plate
Thickness
Bottom Plate
Thickness
Stripper PlatePillar Diameter
d1
Pillar Diameter
d2
L1L2Mass

7126-160-250-32-3214016025050323225242519010020.096
7126-160-250-32-4014016025050324025242519010022.61
7126-160-250-40-4014016025050404025242519010025.12
7126-200-250-32-3214020025090323225242519014025.12
7126-200-250-32-4014020025090324025242519014028.26
7126-200-250-40-4014020025090404025242519014031.4
7126-250-250-32-32140250250140323225242519019031.4
7126-250-250-32-40140250250140324025242519019035.33
7126-250-250-40-40140250250140404025242519019039.25
7126-250-315-32-32190250315115323225303124117639.56
7126-250-315-32-40190250315115324025303124117644.51
7126-250-315-40-40190250315115404025303124117649.46
7126-250-355-32-32220250355115323225303128117644.59
7126-250-355-32-40220250355115324025303128117650.16
7126-250-355-40-40220250355115404025303128117655.74
7126-250-400-32-32265250400115323225303132617650.24
7126-250-400-32-40265250400115324025303132617656.52
7126-250-400-40-40265250400115404025303132617662.8
7126-250-450-32-32315250450115323225303137617656.52
7126-250-450-32-40315250450115324025303137617663.59
7126-250-450-40-40315250450115404025303137617670.65
7126-315-315-32-32180315315180323225303124124149.85
7126-315-315-32-40180315315180324025303124124156.08
7126-315-315-40-40180315315180404025303124124162.31
7126-315-355-32-32220315355180323225303128124156.18
7126-315-355-32-40220315355180324025303128124163.2
7126-315-355-40-40220315355180404025303128124170.23
7126-315-400-32-32265315400180323225303132624163.3
7126-315-400-32-40265315400180324025303132624171.22
7126-315-400-40-40265315400180404025303132624179.13
7126-315-450-40-40283315450160404032404135822389.02
7126-315-450-40-502833154501604050324041358223100.15
7126-315-450-50-502833154501605050324041358223111.27
7126-315-500-40-40333315500160404032404140822398.91
7126-315-500-40-503333155001604050324041408223111.47
7126-315-500-50-503333155001605050324041408223124.03
7126-355-355-40-40220355355220404032303128128179.14
7126-355-355-40-50220355355220405032303128128189.04
7126-355-355-50-50220355355220505032303128128198.93
7126-355-400-40-40265355400220404032303132628189.18
7126-355-400-40-502653554002204050323031326281100.32
7126-355-400-50-502653554002205050323031326281111.47
7126-355-450-40-403153554502204040323031376263100.32
7126-355-450-40-503153554502204050323031376263112.86
7126-355-450-50-503153554502205050323031376263125.4
7126-355-500-40-403343555001884040324041408263111.47
7126-355-500-40-503343555001884050324041408263125.4
7126-355-500-50-503343555001885050324041408263139.34
7126-355-630-40-404643556301884040324041538263140.45
7126-355-630-40-504643556301884050324041538263158.01
7126-355-630-50-504643556301885050324041538263175.57
7126-400-400-40-402334004001884040324041308308100.48
7126-400-400-40-502334004001884050324041308308113.04
7126-400-400-50-502334004001885050324041308308125.6
7126-400-450-40-402834004502334040324041358308113.04
7126-400-450-40-502834004502334050324041358308127.17
7126-400-450-50-502834004502335050324041358308141.3
7126-400-500-40-403334005002334040324041408308125.6
7126-400-500-40-503334005002334050324041408308141.3
7126-400-500-50-503334005002335050324041408308157
7126-400-630-40-404634006302334040324041538308111.47
7126-400-630-40-504634006302334050324041538308100.32
7126-400-630-50-504634006302335050324041538308112.86
7126-450-450-40-402834504502834040324041358358125.4
7126-450-450-40-502834504502834050324041358358111.47
7126-450-450-50-502834504502835050324041358358125.4
7126-450-500-50-502944505002445050405051384334139.34
7126-450-500-50-632944505002445063405051384334140.45
7126-450-500-63-632944505002446363405051384334158.01
7126-450-630-50-504244506302445050405051384334175.57
7126-450-630-50-634244506302445063405051384334100.48
7126-450-630-63-634244506302446363405051384334113.04
7126-500-500-50-502945005002945050405051384384125.6
7126-500-500-50-632945005002945063405051384384113.04
7126-500-500-63-632945005002946363405051384384127.17
7126-500-630-50-504245006302945050405051514384141.3
7126-500-630-50-634245006302945063405051514384125.6
7126-500-630-63-634245006302946363405051514384141.3
#38816.88~38820.04#

All Dimensions in mm

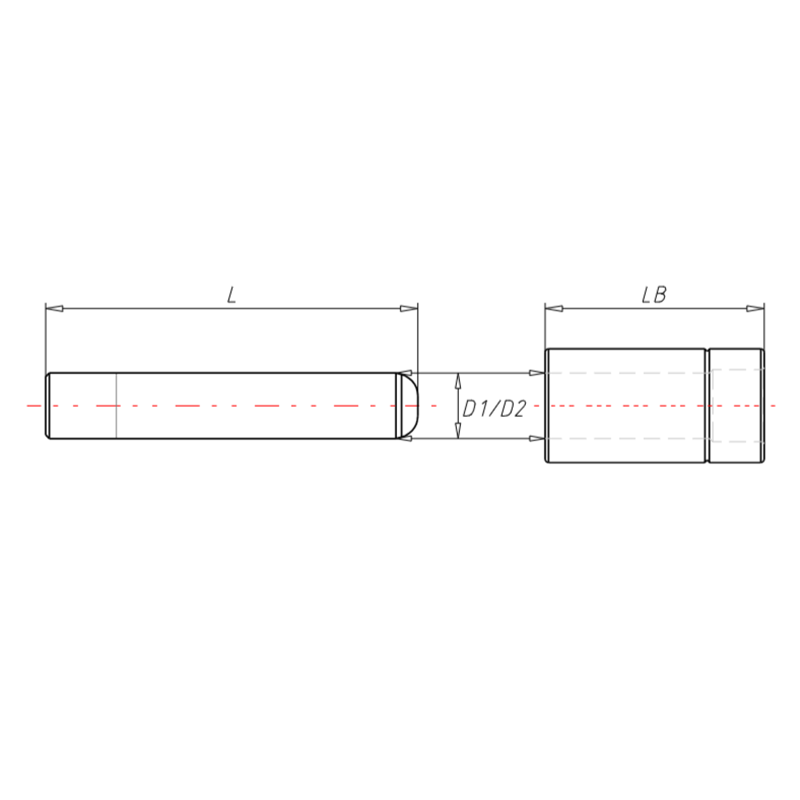

Pillars d1/d2
24/25 30/31 40/41 50/51
L 115 115
125 125
135 135
145 145 145
155 155 155
170 170 170 170
185 185 185 185
200 200 200 200
225 225 225 225
250 250 250 250
  275 275 275
  300 300 300
    325 325
    350 350
    400 400
Bushes d1/d2
24/25 30/31 40/41 50/51
L 50 55 60 60
70 80 100 100
100 100

Material A 50 (flame cut) Supplied as standard
