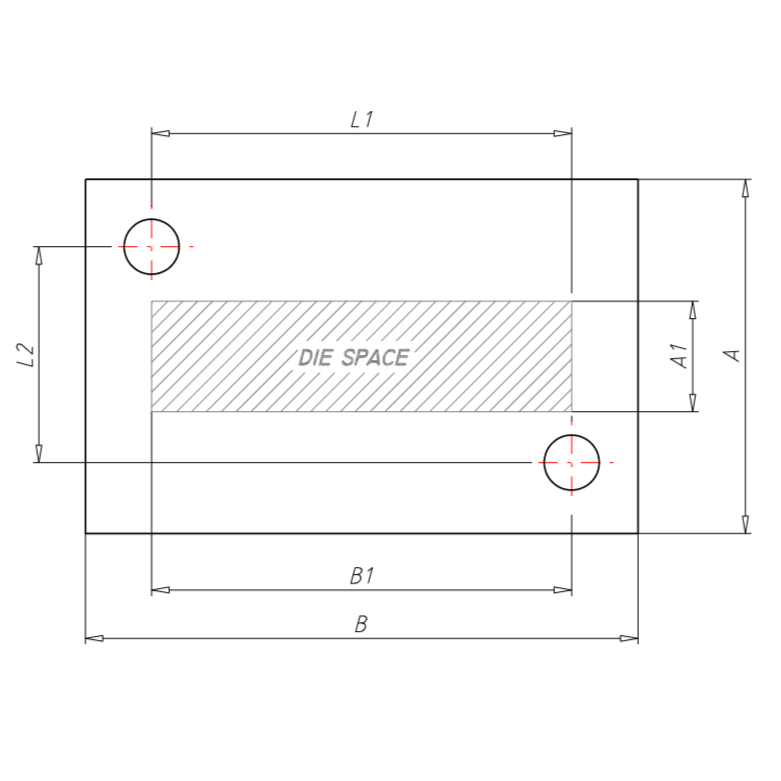

7137 Diagonal Pillar Die Set - Demountable Pillar & Bush



images/300/7137_Diagonal_Pillar_Die_Set_Demountable_Pillars_Bushes_drawing_H.png

Select Values to Buy:

Tech Spec:


7137 Diagonal Pillar Die Set  Demountable Pillars & Bushes

We are pleased to offer you a very simple ordering system for our standard die set range. By selecting your plate sizes + thickness you will then be prompted to select the pillar & bush lengths to suit. If you prefer to send us a drawing of your die set please send an email to our friendly sales team; alternatively give us a call.

Select Demountable Pillars and Steel Demountable Bushes or Bronze Demountable Bushes here.

Select / Deselect Visible Columns
Close
HideDie Space bShow
HideDie Space AShow
HideDie Space BShow
HideDie Space aShow
HideTop Plate
Thickness
Show
HideBottom Plate
Thickness
Show
HideStripper PlateShow
HidePillar Diameter
d1
Show
HidePillar Diameter
d2
Show
HideL1Show
HideL2Show
PartCodeDie Space bDie Space ADie Space BDie Space aTop Plate
Thickness
Bottom Plate
Thickness
Stripper PlatePillar Diameter
d1
Pillar Diameter
d2
L1L2Mass

7137-160-250-32-3214016025050323225242519010020.1
7137-160-250-32-4014016025050324025242519010022.61
7137-160-250-40-4014016025050404025242519010025.12
7137-200-250-32-3214020025090323225242519014025.12
7137-200-250-32-4014020025090324025242519014028.26
7137-200-250-40-4014020025090404025242519014031.4
7137-250-250-32-32140250250140323225242519019031.4
7137-250-250-32-40140250250140324025242519019035.33
7137-250-250-40-40140250250140404025242519019039.25
7137-250-315-32-32190250315115323225303224117639.56
7137-250-315-32-40190250315115324025303224117644.51
7137-250-315-40-40190250315115404025303224117649.46
7137-250-355-32-32220250355115323225303228117644.59
7137-250-355-32-40220250355115324025303228117650.16
7137-250-355-40-40220250355115404025303228117655.74
7137-250-400-32-32265250400115323225303232617650.24
7137-250-400-32-40265250400115324025303232617656.52
7137-250-400-40-40265250400115404025303232617662.8
7137-250-450-32-32315250450115323225303237617656.52
7137-250-450-32-40315250450115324025303237617663.59
7137-250-450-40-40315250450115404025303237617670.65
7137-315-315-32-32180315315180323225303224124149.85
7137-315-315-32-40180315315180324025303224124156.08
7137-315-315-40-40180315315180404025303224124162.31
7137-315-355-32-32220315355180323225303228124156.18
7137-315-355-32-40220315355180324025303228124163.2
7137-315-355-40-40220315355180404025303228124170.23
7137-315-400-32-32265315400180323225303232624163.3
7137-315-400-32-40265315400180324025303232624171.22
7137-315-400-40-40265315400180404025303232624179.13
7137-315-450-40-40283315450160404032404235822389.02
7137-315-450-40-502833154501604050324042358223100.15
7137-315-450-50-502833154501605050324042358223111.27
7137-315-500-40-40333315500160404032404240822398.91
7137-315-500-40-503333155001604050324042408223111.47
7137-315-500-50-503333155001605050324042408223124.03
7137-355-355-40-40220355355220404032303228128179.14
7137-355-355-40-50220355355220405032303228128189.04
7137-355-355-50-50220355355220505032303228128198.93
7137-355-400-40-40265355400220404032303232628189.18
7137-355-400-40-502653554002204050323032326281100.32
7137-355-400-50-502653554002205050323032326281111.47
7137-355-450-40-403153554502204040323032376281100.32
7137-355-450-40-503153554502204050323032376281112.86
7137-355-450-50-503153554502205050323032376281125.4
7137-355-500-40-403343555001884040324042408263111.47
7137-355-500-40-503343555001884050324042408263125.4
7137-355-500-50-503343555001885050324042408263139.34
7137-355-630-40-404643556301884040324042538263140.45
7137-355-630-40-504643556301884050324042538263158.01
7137-355-630-50-504643556301885050324042538263175.57
7137-400-400-40-402334004002334040324042308308100.48
7137-400-400-40-502334004002334050324042308308113.04
7137-400-400-50-502334004002335050324042308308125.6
7137-400-450-40-402834004502334040324042358308113.04
7137-400-450-40-502834004502334050324042358308127.17
7137-400-450-50-502834004502335050324042358308141.3
7137-400-500-40-403334005002334040324042408308125.6
7137-400-500-40-503334005002334050324042408308141.3
7137-400-500-50-503334005002335050324042408308157
7137-400-630-40-404634006302334040324042538308158.26
7137-400-630-40-504634006302334050324042538308178.04
7137-400-630-50-504634006302335050324042538308197.82
7137-450-450-40-402834504502834040324042358358127.19
7137-450-450-40-502834504502834050324042358358143.07
7137-450-450-50-502834504502835050324042358358158.96
7137-450-500-50-502944505002445050405052384334176.63
7137-450-500-50-632944505002445063405052384334199.59
7137-450-500-63-632944505002446363405052384334222.55
7137-450-630-50-504244506302445050405052384334222.55
7137-450-630-50-634244506302445063405052384334251.48
7137-450-630-63-634244506302446363405052384334280.41
7137-500-500-50-502945005002945050405052384384196.25
7137-500-500-50-632945005002945063405052384384221.76
7137-500-500-63-632945005002946363405052384384247.28
7137-500-630-50-504245006302945050405052514384247.28
7137-500-630-50-634245006302945063405052514384279.42
7137-500-630-63-634245006302946363405052514384311.57
#38806.77~38809.86#

All Dimensions in mm

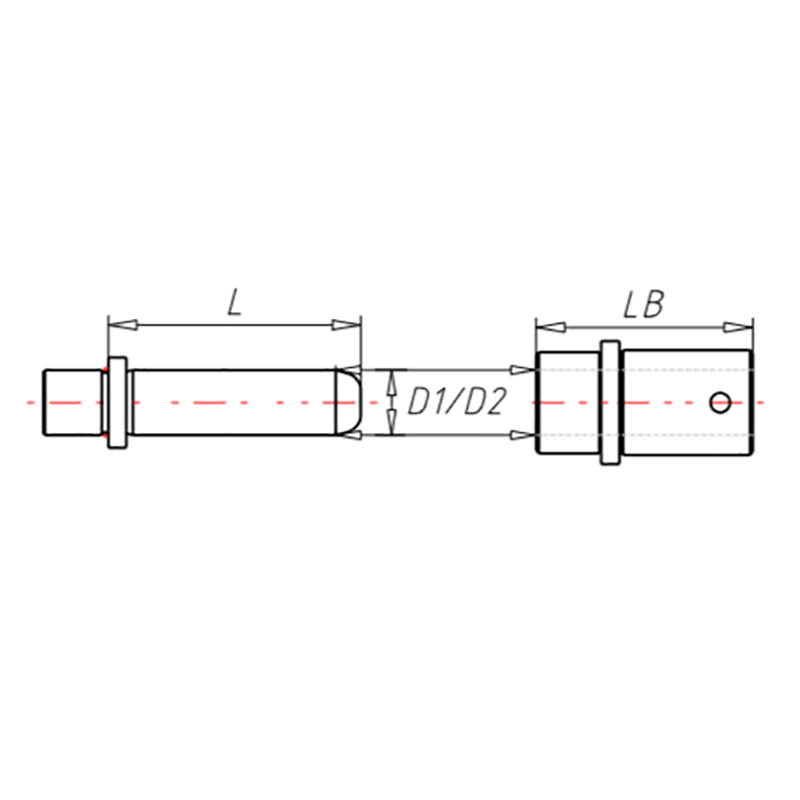

Pillars   d1/d2
24/25  30/32  40/42  50/52
L                     70
80
90
100  100  100
110  110  110   110
120  120  120  120
130  130  130  130
140  140  140  140
150  150  150  150
160  160  160  160
170  170  170  170
180  180  180  180
  200  200  200
  220  220  220
  240  240  240
  280  280  280
      320
      320
      400
Bushes   d1/d2
 24/25 30/32   40/42  50/52
L    37  44   52  62
55  60  67 75
80  90  100  110

Material A 50 (flame cut) Supplied as standard.
