7147 Rear Pillar Die Sets, Demountable Pillars & Bushes

Select Values to Buy:

Tech Spec:


7147 Rear Pillar Die Set Demountable Pillars & Bushes

We are pleased to offer you a very simple ordering system for our standard die set range. By selecting your plate sizes + thickness you will then be prompted to select the pillar & bush lengths to suit. If you prefer to send us a drawing of your die set please send an email to our friendly sales team; alternatively give us a call.

Select Demountable Pillars and Steel Demountable Bushes or Bronze Demountable Bushes here.

Select / Deselect Visible Columns
Close

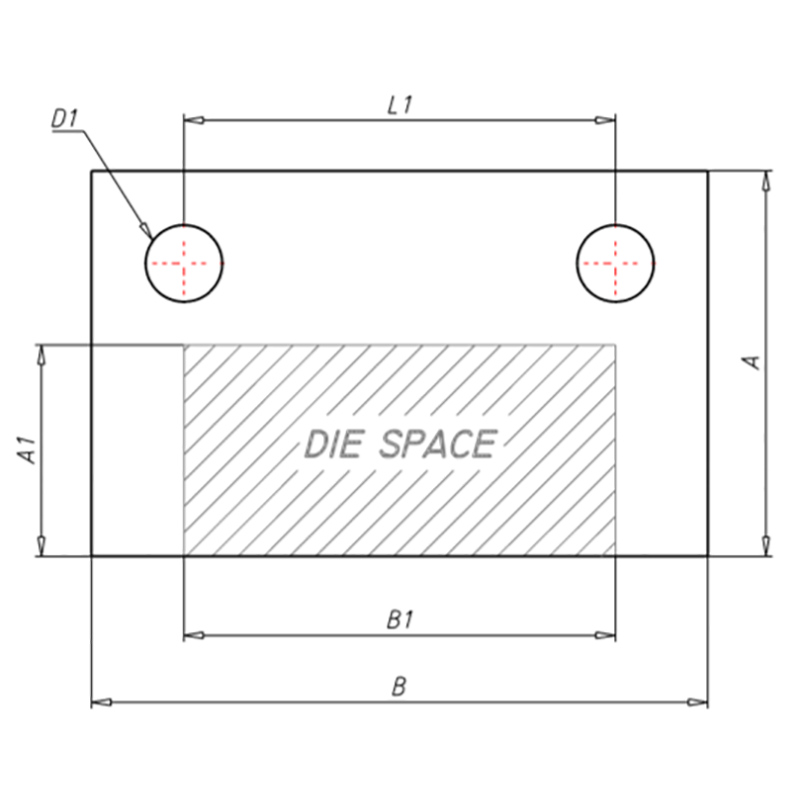

HideDie Space aShow
HideDie Space BShow
HideA Show
HideTop Plate
Thickness
Show
HideBottom Plate
Thickness
Show
HidePillar Diameter
d1
Show
HideL1Show
PartCodeDie Space aDie Space BA Top Plate
Thickness
Bottom Plate
Thickness
Pillar Diameter
d1
L1Mass

7147-160-100-25-25661601002525191126.28
7147-160-100-25-32661601002532191127.16
7147-160-100-32-32661601003232191128.04
7147-160-125-32-327016012532322510010.05
7147-160-125-32-407016012532402510011.3
7147-160-125-40-407016012540402510012.56
7147-200-100-25-25662001002525191527.85
7147-200-100-25-32662001002532191528.95
7147-200-100-32-326620010032321915210.05
7147-200-125-32-327020012532322514020.1
7147-200-125-32-407020012532402514022.61
7147-200-125-40-407020012540402514025.12
7147-200-160-32-3210520016032322514016.077
7147-200-160-32-4010520016032402514018.09
7147-200-160-40-4010520016040402514020.1
7147-200-200-32-3214520020032322514020.1
7147-200-200-32-4014520020032402514022.61
7147-200-200-40-4014520020040402514025.12
7147-250-125-32-327025012532322519015.7
7147-250-125-32-407025012532402519017.66
7147-250-125-40-407025012540402519019.63
7147-250-160-32-3210525016032322519020.1
7147-250-160-32-4010525016032402519022.61
7147-250-160-40-4010525016040402519025.12
7147-250-200-32-3214525020032322519025.12
7147-250-200-32-4014525020032402519028.26
7147-250-200-40-4014525020040402519031.4
7147-250-250-32-3219525025032322519031.4
7147-250-250-32-4019525025032402519035.33
7147-250-250-40-4019525025040402519039.25
7147-315-160-32-3210531516032322525525.32
7147-315-160-32-4010531516032402525528.49
7147-315-160-40-4010531516040402525531.65
7147-315-200-32-3214531520032323025031.65
7147-315-200-32-4014531520032403025035.61
7147-315-200-40-4014531520040403025039.56
7147-315-250-32-3219531525032322524139.56
7147-315-250-32-4019531525032402524144.51
7147-315-250-40-4019531525040402524149.46
7147-315-315-32-3226031531532323024149.85
7147-315-315-32-4026031531532403024156.08
7147-315-315-40-4026031531540403024162.31
7147-355-200-32-3214535520032323029035.67
7147-355-200-32-4014535520032403029040.13
7147-355-200-40-4014535520040403029044.59
7147-355-250-32-3219535525032323028144.59
7147-355-250-32-4019535525032403028150.16
7147-355-250-40-4019535525040403028155.74
7147-355-315-32-3226035531532323028156.18
7147-355-315-32-4026035531532403028163.2
7147-355-315-40-4026035531540403028170.23
7147-355-355-40-4028035535540404026379.14
7147-355-355-40-5028035535540504026389.04
7147-355-355-50-5028035535550504026398.93
7147-400-200-32-3214540020032323033540.19
7147-400-200-32-4014540020032403033545.22
7147-400-200-40-4014540020040403033550.24
7147-400-250-32-3219540025032323032650.24
7147-400-250-32-4019540025032403032656.52
7147-400-250-40-4019540025040403032662.8
7147-400-315-32-3226040031532323032663.3
7147-400-315-32-4026040031532403032671.22
7147-400-315-40-4026040031540403032679.13
7147-400-355-40-4028040035540404030889.18
7147-400-355-40-50280400355405040308100.32
7147-400-355-50-50280400355505040308111.47
7147-400-400-40-40325400400404040308100.48
7147-400-400-40-50325400400405040308113.04
7147-400-400-50-50325400400505040308125.6
7147-450-250-32-3219545025032323037656.52
7147-450-250-32-4019545025032403037659.66
7147-450-250-40-4019545025040403037662.8
7147-450-315-40-4024045031540404035889.02
7147-450-315-40-50240450315405040358100.15
7147-450-315-50-50240450315505040358111.27
7147-450-355-40-40280450355404040358100.32
7147-450-355-40-50280450355405040358112.86
7147-450-355-50-50280450355505040358125.4
7147-450-400-40-40325450400404040358113.04
7147-450-400-40-50325450400405040358127.17
7147-450-400-50-50325450400505040358141.3
7147-500-315-40-4024050031540404040898.91
7147-500-315-40-50240500315405040408111.27
7147-500-315-50-50240500315505040408123.64
7147-500-355-40-40280500355404040408111.47
7147-500-355-40-50280500355405040408125.4
7147-500-355-50-50280500355505040408139.34
7147-500-400-40-40325500400404040408125.6
7147-500-400-40-50325500400405040408141.3
7147-500-400-50-50325500400505040408157
7147-630-315-40-40240630315404040538124.63
7147-630-315-40-50240630315405040538140.2
7147-630-315-50-50240630315505040538155.78
7147-630-355-40-40280630355404040538140.45
7147-630-355-40-50280630355405040538158.01
7147-630-355-50-50280630355505040538175.57
7147-630-400-40-40325630400404040538158.26
7147-630-400-40-50325630400405040538178.04
7147-630-400-50-50325630400505040538197.82
#47826.73~47829.05#

All Dimensions in mm

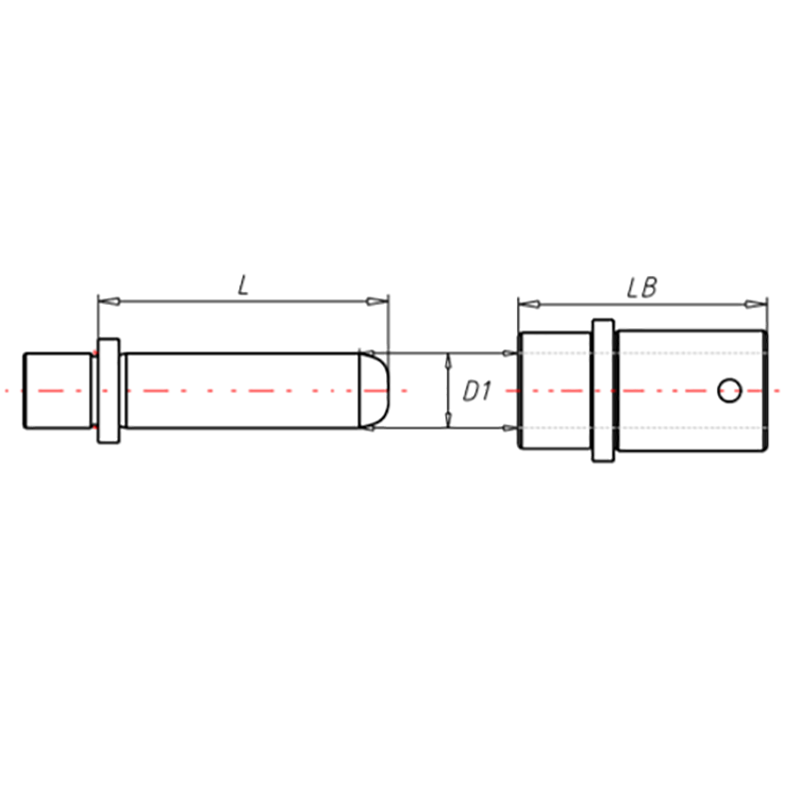

Pillars d1
19 25 30 40
L 70 70
80 80
90 90
100 100 100 100
110 110 110 110
120 120 120 120
130 130 130 130
140 140 140 140
150 150 150 150
160 160 160 160
  170 170 170
  180 180 180
    200 200
    220 220
    240 240
    280 280
Bushes d1
19 25 30 40
L 31 37 44 52
50 55 60 67
60 80 90 100

Material A 50 (flame cut) Supplied as standard.
