7157 4-Pillar Die Set - Demountable Pillar & Bush

Close Next Previous

7157: 4 Pillar Die Set

Close Next Previous

Demountable Pillar and Bush

7157: 4 Pillar Die Set

CAD Viewer

Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Based on your plate selection the pillar diameter is 25.

Please now select the length of pillar you require, the options available are based on the pillar diameter. The pillars you select will be fitted to the bottom plate.

Available Pillar Lengths:

70 80 90 100 110 120 130 140 150 160 170 180 200

Product Description

7157 4-Pillar Die Set Demountable Pillars & Bushes

We are pleased to offer you a very simple ordering system for our standard die set range. By selecting your plate sizes + thickness you will then be prompted to select the pillar & bush lengths to suit. If you prefer to send us a drawing of your die set please contact our friendly sales team; alternatively give us a call.

Select Demountable Pillars and Steel Demountable Bushes or Bronze Demountable Bushes here.
Material A 50 (flame cut) Supplied as standard.

All Dimensions in mm

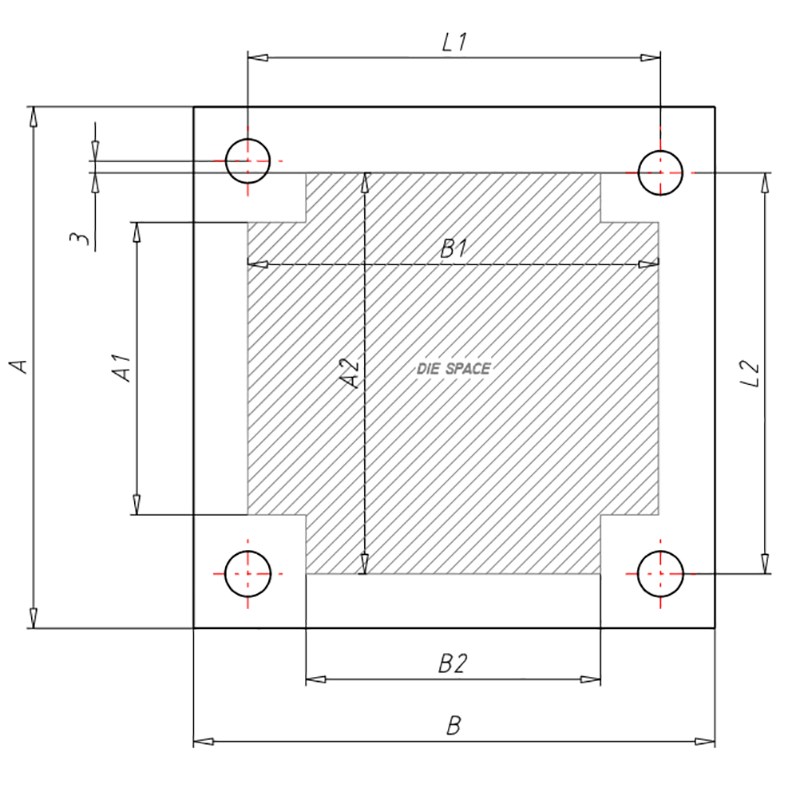

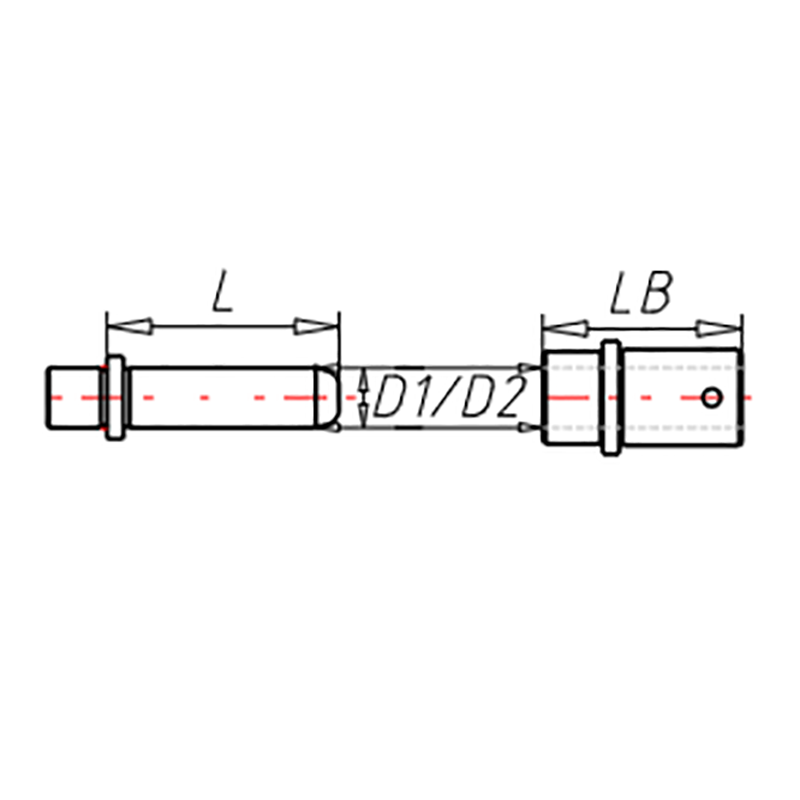

Pillars	D1
Pillars	25	30	40
L	70
	80
	90
	100	100	100
	110	110	110
	120	120	120
	130	130	130
	140	140	140
	150	150	150
	160	160	160
	170	170	170
	180	180	180
		200	200
		220	220
		240	240
		280	280
			320
			360
			400
Bushes	D1
Bushes	25	30	40
LB	37	44	52
	55	60	67
	80	76	80
		90	100
