SL / SLR Light Load Spring JIS B 5012 Japanese Standard

CloseNextPrevious



CloseNextPrevious



CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

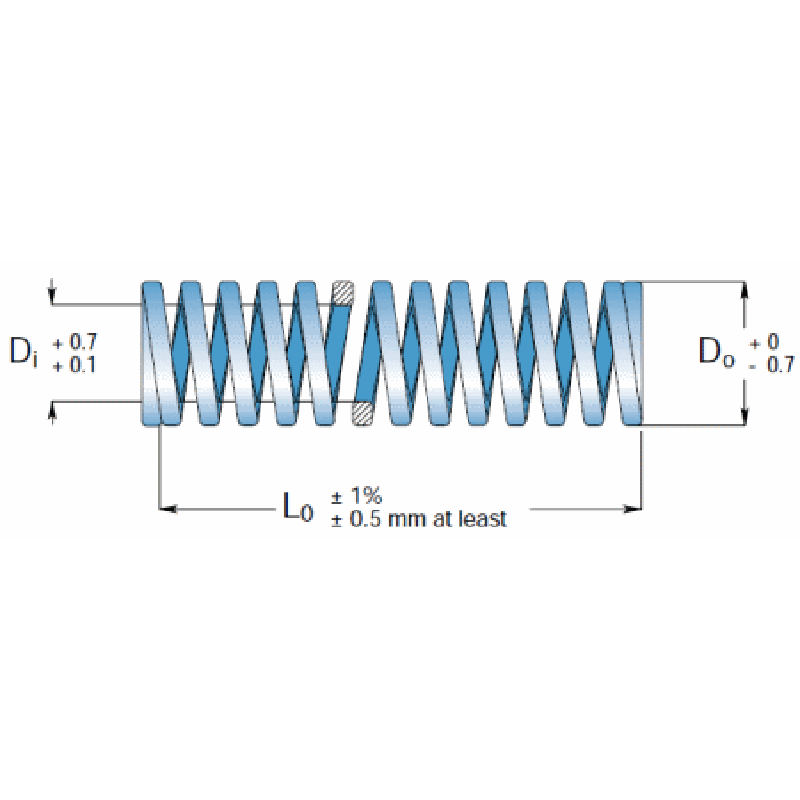

SL / SLR - Light Load Spring JIS B 5012 Japanese Standard

Die spring, for light loads. Rectangular wire high force compression spring, manufactured to JIS (Japanese Industrial Standards) and RoHS compliant.

High quality and long lasting, these springs are temperature tolerant from -30°C to 120°C.

Springs are supplied in packs sizes, varying between 2-50 pieces dependant on size chosen. Prices shown for each part – the pack size will be recalculated in your basket. Alternatively, for smaller quantities please contact our sales team for a quotation 01732 763377.

Custom made springs are available, please contact us for further details

Specification

High grade alloy spring steel with characteristics to be found in automotive engine valve springs. Laboratory and dynamically performance tested.

Both ends closed and ground square to the axis.

All springs are compressed to solid to eliminate initial free length reduction.

Shot peened to reduce stress levels and improve working life.

On Request

Epoxy resin coating as standard - Delta Tone 9000 coating.



Do

mm

Lo

mm

1,000,000

Cycles

500,000

Cycles

300,000

Cycles

10 20-80 images/300/SL_light_load_spring_32__Lo_W.png images/300/SL_light_load_spring_36__Lo_W.png images/300/SL_light_load_spring_40__Lo_W.png
12 20-80
14 25-90
16 25-150
18 25-150
20 25-150
22 25-150
25 25-175
27 25-175
30 25-100
35 25-100
40 25-150
50 25-150
60 25-175
