DIN6335 Star Knobs Cast Iron Blind Bore plastic coated threaded plain DIN 6335

Standard Parts for Clamping & Operating & Machine Fixtures > Hand Knobs, Star Knobs, Wing & Knurled Thumb Screws & Nuts > Hand Knobs
Next Product >

DIN6335 Star Knob, Cast Iron, Through & Blind Bore

Type B - with plain through bore, Tol. H7

Type C - with plain blind bore, Tol. H7

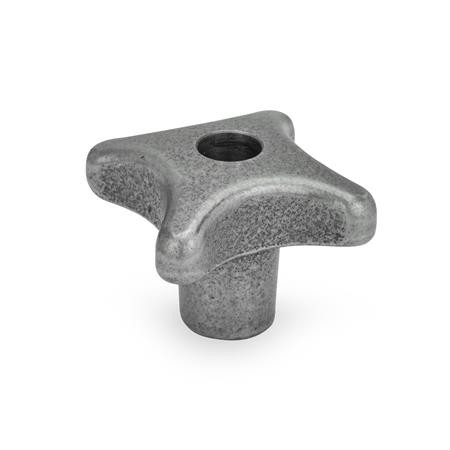

Type D - with threaded through bore

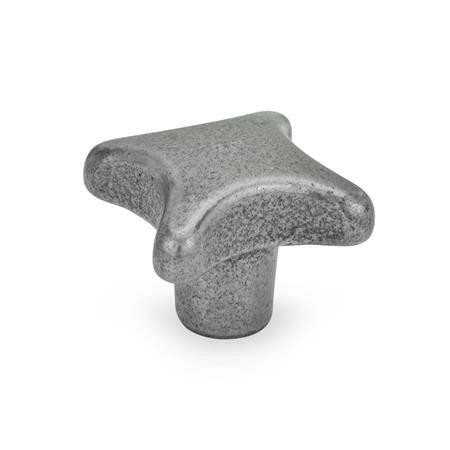

Type E - with threaded blind bore



Select Values to Buy:

Tech Spec:


DIN 6335 Star Knob, Cast Iron, Through & Blind Bore

These star knobs are ideal for many uses including clamping and machine adjustment. The 4 lobed shape provides a firm grip to easily achieve high torques whilst remaining comfortable to use. They are available threaded or plain, and in through or blind bores, and can be plastic coated on request.

Specification

Cast iron GG fettled and tumbled.

RoHS compliant

Plastic coated available on request.

Select / Deselect Visible Columns
PartCodeMateriald1d2
Thread
d3
Bore
d4h1h2t1
Min.
t2TypeMass

DIN6335-GG-32-B6-BGG32B6122091210B0.031
DIN6335-GG-32-B6-CGG32B6122091210C0.029
DIN6335-GG-32-M6-DGG32M6122091210D0.033
DIN6335-GG-32-M6-EGG32M6122091210E0.034
DIN6335-GG-40-B8-BGG40B81425131512B0.047
DIN6335-GG-40-B8-CGG40B81425131512C0.05
DIN6335-GG-40-M8-DGG40M81425131512D0.053
DIN6335-GG-40-M8-EGG40M81425131512E0.051
DIN6335-GG-50-B10-BGG50B101832181816B0.099
DIN6335-GG-50-B10-CGG50B101832181816C0.103
DIN6335-GG-50-M10-DGG50M101832181816D0.1
DIN6335-GG-50-M10-EGG50M101832181816E0.1
DIN6335-GG-63-B12-BGG63B122040232220B0.158
DIN6335-GG-63-B12-CGG63B122040232220C0.169
DIN6335-GG-63-M12-DGG63M122040232220D0.17
DIN6335-GG-63-M12-EGG63M122040232220E0.2
DIN6335-GG-80-B16-BGG80B162550282830B0.332
DIN6335-GG-80-B16-CGG80B162550282830C0.341
DIN6335-GG-80-M16-DGG80M162550282830D0.3
DIN6335-GG-80-M16-EGG80M162550282830E0.35
DIN6335-GG-100-B20-BGG100B203263363638B0.682
DIN6335-GG-100-B20-CGG100B203263363638C0.682
DIN6335-GG-100-M20-DGG100M203263363638D0.6
DIN6335-GG-100-M20-EGG100M203263363638E0.77
