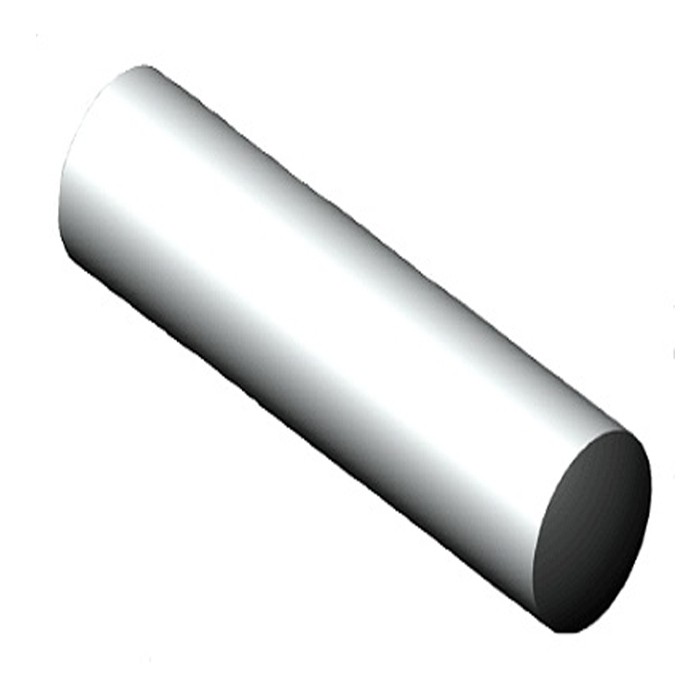

ISO8735A Extractable Dowel Pin, Through Hardened DIN 7979
Choose your Part
Please select desired options to reveal part number, price and availability
D Diameter
4,0 5,0 6,0 8,0 10,0 12,0 13,0 14,0 16,0 18,0 20,0
L Length
8 10 12 14 16 18 20 24 28 30 32 36 40 45 50 55 60 70 80 90 100 120 140 160
Stock Availability
Up to 184 for dispatch on 09/11/2026
Product Description
ISO8735A Extractable Dowel Pin, Through Hardened DIN 7979
Made to ISO 8735 standards, these extractable dowel pins have an internal thread which is used to help extract the pin after installation. These hardwearing pins are ideal for accurate positioning and locating of parts in press tool, mould making, jigs, fixtures and machinery and also to provide a reference point.
Other sizes available on request.
Specification
Fully hardened, tempered and fine ground, finished to ISO tolerance m6 with an air vent flap.
Hardness 60±2 HRC
CAD Viewer
Technical Data
