Please select desired options to reveal part number, price and availability
Type K - Quick renewable drill bushes, bayonet joint right.
Type L - Renewable drill bushes.
Product Description

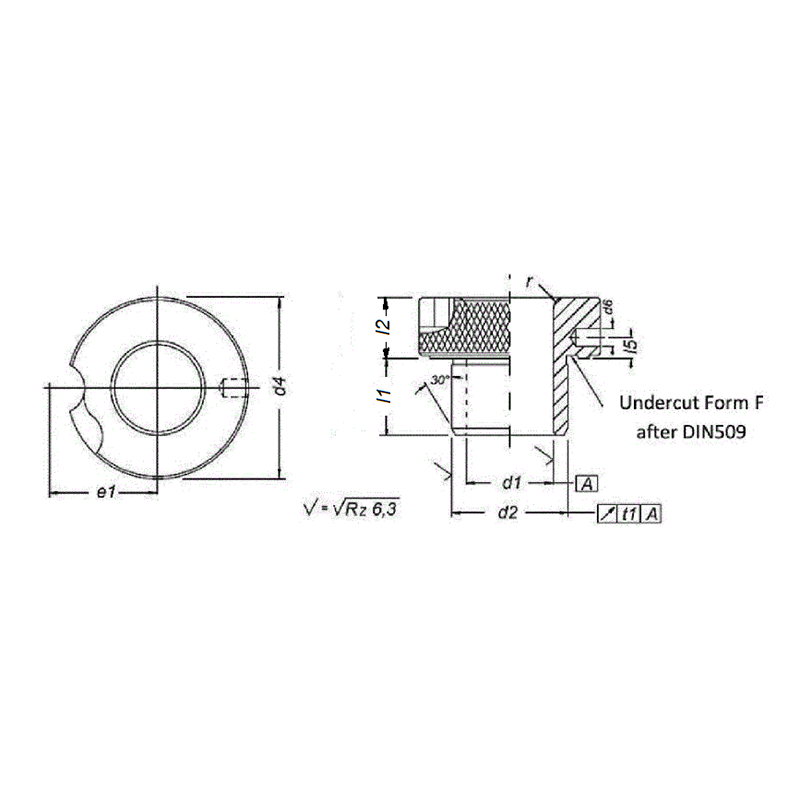

DIN 173K/DIN 173L Renewable Drill Bush, Slip & Fixed
Hardened and wear-proof, made from best quality special case-hardening steel.
The renewable bush Type K is used as a quick change bush. The register used for the stop pin takes the form of a dowel pin in conjunction with locking screw DIN 173.
For use with DIN 172A /DIN 179A liner bush.
Limited stock at prices shown. Please contact us if your require a greater quantity, or if the size you require is not listed.
Specification
Hardened, wear-proof, special case-hardening steel, ground internally and externally.
Hardness - (740 +/- 80) HV 10
Tolerance - For bore d1 = F 7 For outside dia. d2 = m 6
CAD Viewer
Technical Data
