Please select desired options to reveal part number, price and availability
Type G - headed
Type H - headless
Product Description

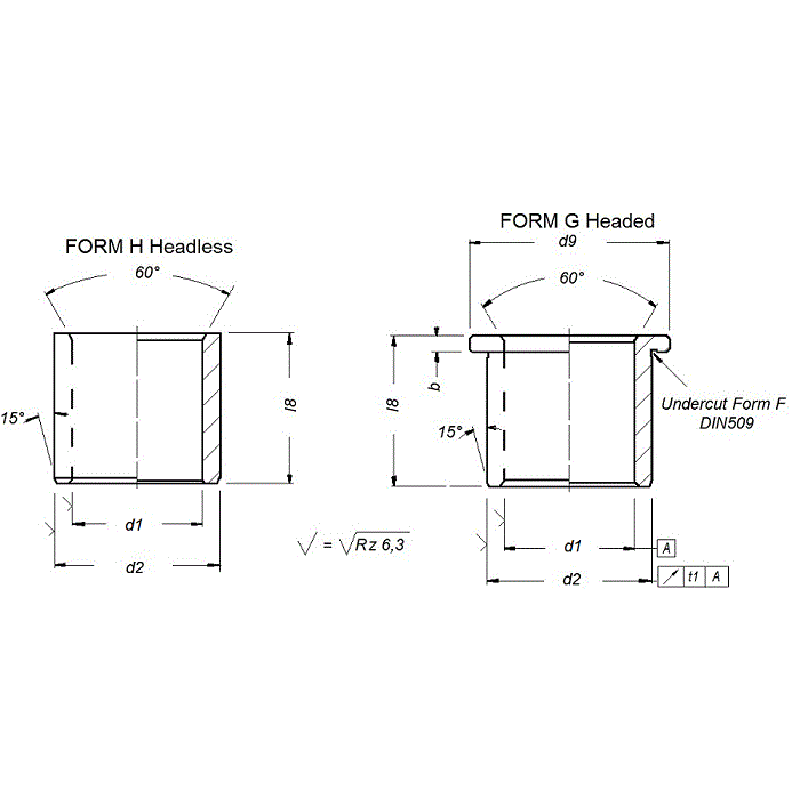

DIN 173G & DIN 173H Liner Bush, Headed & Headless
Liner bush, made from best quality case-hardening steel.
Please contact us if the size you require is not listed.
Specification
Type G - headed and H - headless, hardened and ground, case hardening steel, ground internally and externally.
Hardness - (780 +/- 40) HV 10
Tolerance - For bore d2 = H 7 For outside dia. d8 = m 6
| Part Code |
|---|
| DIN173G 8-8 |
| DIN173H 28-32 |
| DIN173H 22-25 |
| DIN173G 35-32 |
| DIN173G 8-12,5 |
| DIN173H 22-16 |
| DIN173H 15-12,5 |
| DIN173H 8-12,5 |
CAD Viewer
Technical Data
