GN918.2 Clamping Bolts downward releasing long movement rapid

Standard Machine Elements > Eccentrical Cams, Clamping Bolts, Clamping Units > Cam Point Levers
< Previous Product Next Product >

GN918.2 Clamping Bolt, Downward Clamping






Type KV - with ball lever, angular serrations

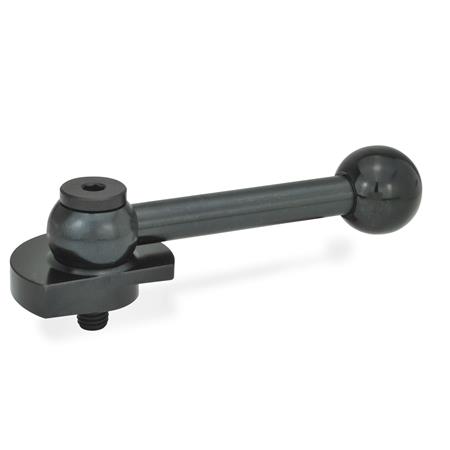

Type GV - with ball lever, straight serrations

Type SK - with hexagon

Clamping direction L - anti-clockwise rotation, (drawn version)

Clamping direction R - clockwise rotation

Select Values to Buy:

Tech Spec:

Product Description

GN918.2 Clamping Bolt, Downward Clamping

These clamping bolts are fitted with a rotating helix. They allow rapid and safe clamping and releasing with a relatively long movement and high clamping force. The small rising angle of the helix makes it self arresting.

The ball handle is linked with the clamping mechanism via a serrated ratchet thus allowing an individual positioning of the hand lever.

Clamping bolts offer the advantage that they can be rotated away from the clamping area after release.

Clamping bolts can also be used as stepless adjustable end stops. If the washer is removed the bolt can be clamped direct to its support.

Ball point screws GN605 with flattened ball are recommended for use with these clamping bolts.

Specification

Steel, blackened

Clamping bolt and washer, case hardened.

Screw bolt nitrided, Tensile strength 800 N/mm2.

Ball knob DIN319 plastic, Duroplast, black, shiny finish.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1TypeClamping
direction
Materiald2d3d4h1h2h3h4h5l1l2A/FMass

GN918.2-40-KV-R40KVRSTM8242510312155318100150.179
GN918.2-40-KV-L40KVLSTM8242510312155318100150.18
GN918.2-40-GV-R40GVRSTM8242510312155318100150.177
GN918.2-40-GV-L40GVLSTM8242510312155318100150.178
GN918.2-40-SK-R40SKRSTM8242510312155318100150.086
GN918.2-40-SK-L40SKLSTM8242510312155318100150.087
GN918.2-50-KV-R50KVRSTM1028301234.524623611116190.32
GN918.2-50-KV-L50KVLSTM1028301234.524623611116190.31
GN918.2-50-GV-R50GVRSTM1028301234.524623611116190.306
GN918.2-50-GV-L50GVLSTM1028301234.524623611116190.308
GN918.2-50-SK-R50SKRSTM1028301234.524623611116190.157
GN918.2-50-SK-L50SKLSTM1028301234.524623611116190.154
