Standard Machine Elements > Eccentrical Cams, Clamping Bolts, Clamping Units > Cam Point Levers
< Previous Product Next Product >

GN918.5 Eccentrical Cam, Stainless Steel

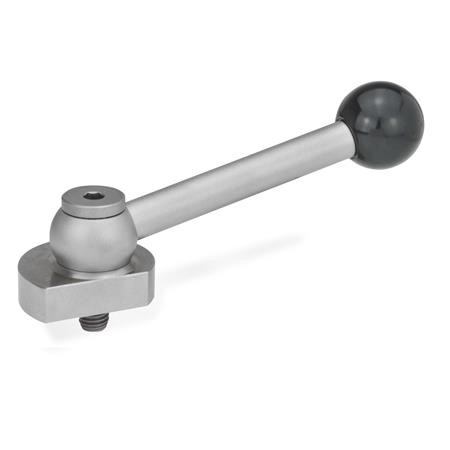

Type KV - with ball lever, angular serrations.

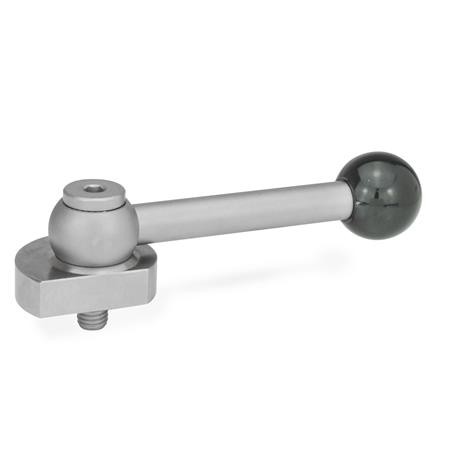

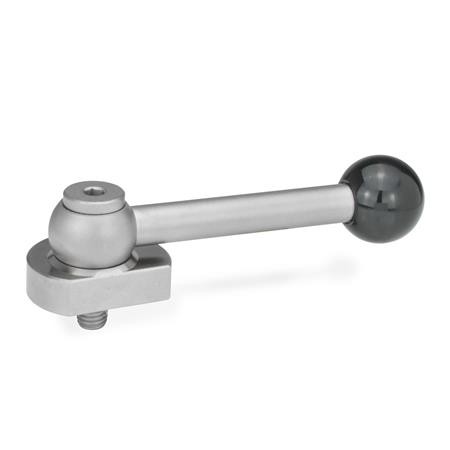

Type GV - with ball lever, straight serrations.

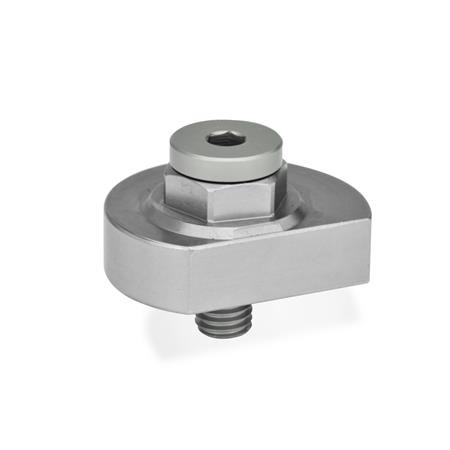

Type SK - with hexagon.

Clamping direction L - anti-clockwise rotation, (drawn version).

Clamping direction R - clockwise rotation.

Select Values to Buy:

Tech Spec:

Product Description

GN918.5 Eccentrical Cam, Stainless Steel.

These eccentrical cams with a relatively long movement and high clamping force give rapid and safe clamping and release. The cam offers the advantage of the clamping force acting over the entire clamping area i.e. it maintains the clamping force in all angular positions, and at the same time it is self arresting in any position.

The ball lever is linked with the eccentrical cam via a serrated ratchet thus allowing an individual positioning of the hand lever.

Clamping bolts offer the advantage that they can be rotated away from the clamping area after release.

Screw bolt and washer are matched to allow an effortless release from the clamped position. The washer "saves" special requirements to the execution of the thread and the clamping bolt can therefore also be used on T-Nuts on machine beds.

Clamping bolts can also be used as stepless adjustable end stops. If the washer is removed the bolt can be clamped direct to its support.

Specification

Eccentrical cam - Stainless steel NI, German Material No. 1.4305, chemically nickel plated

Screw bolt and washer - Stainless steel NI, German Material No. 1.4021 tempered, chemically nickel plated.

Ball lever (type KV) - Stainless steel NI, German Material No. 1.4305, matt shot-blasted.

Ball knob DIN319 plastic, Duroplast, black, shiny finish.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1TypeClamping
direction
Materiald2d3d4h1h2h3h4h5l1l2A/FMass

GN918.5-40-KV-R40KVRNIM8242510312155318100150.179
GN918.5-40-KV-L40KVLNIM8242510312155318100150.179
GN918.5-40-GV-R40GVRNIM8242510312155318100150.177
GN918.5-40-GV-L40GVLNIM8242510312155318100150.177
GN918.5-40-SK-R40SKRNIM8242510312155318100150.09
GN918.5-40-SK-L40SKLNIM8242510312155318100150.088
GN918.5-50-KV-R50KVRNIM1028301234.524623611116190.31
GN918.5-50-KV-L50KVLNIM1028301234.524623611116190.31
GN918.5-50-GV-R50GVRNIM1028301234.524623611116190.312
GN918.5-50-GV-L50GVLNIM1028301234.524623611116190.312
GN918.5-50-SK-R50SKRNIM1028301234.524623611116190.154
GN918.5-50-SK-L50SKLNIM1028301234.524623611116190.154
