GN918.6 Clamping Bolts upward stainless steel rapid safe releasing relatively long movement high force

All Stainless Steel Products
Standard Machine Elements > Eccentrical Cams, Clamping Bolts, Clamping Units > Cam Point Levers
< Previous Product Next Product >

GN918.6 Clamping Bolt, Upward Clamping, Stainless Steel

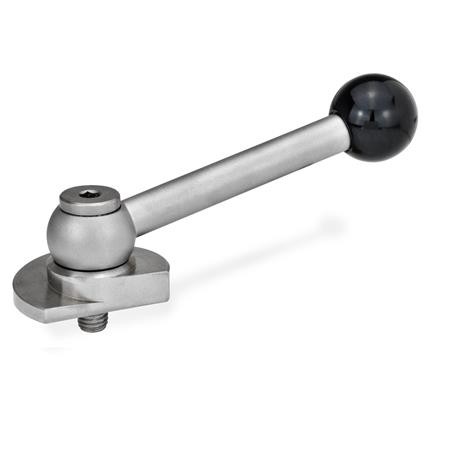

Type KV - with ball lever, angular serrations.

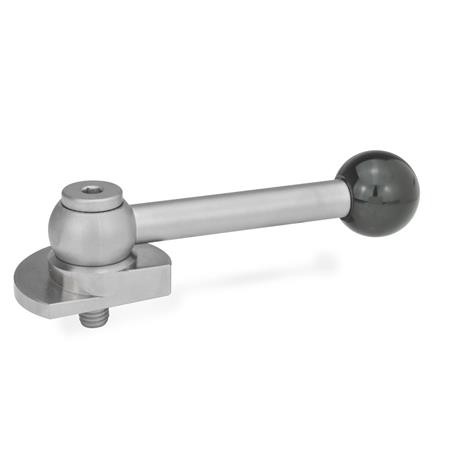

Type GV - with ball lever, straight serrations.

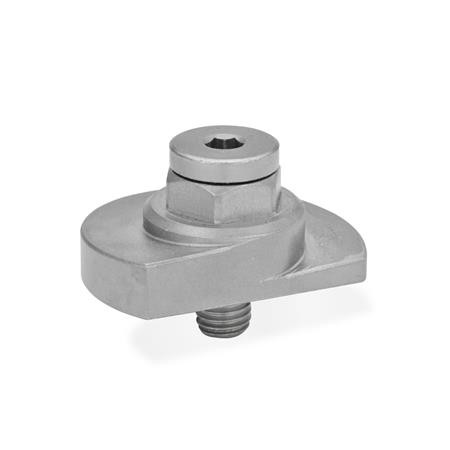

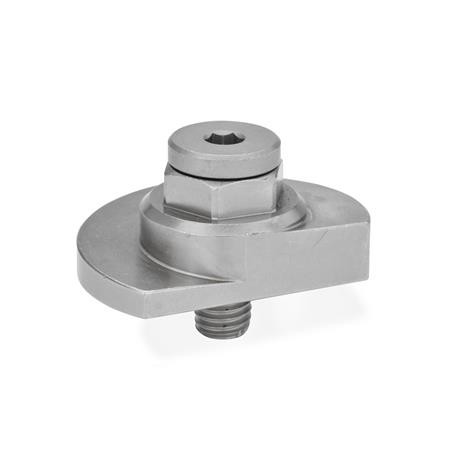

Type SK - with hexagon.

Clamping direction L - anti-clockwise rotation, (drawn version).

Clamping direction R - clockwise rotation.

Select Values to Buy:

Tech Spec:

Product Description

GN918.6 Clamping Bolt, Upward Clamping, Stainless Steel.

These clamping bolts are fitted with a rotating helix. They allow rapid and safe clamping and releasing with a relatively long movement and high clamping force. The small rising angle of the helix makes it self arresting.

The ball handle is linked with the clamping mechanism via a serrated ratchet thus allowing an individual positioning of the hand lever.

Bolt and washer are matched to allow an effortless release from the clamped position. The washer "saves" special requirements to the execution of the female thread and the clamping bolt can therefore also be used on T-Nuts on machine beds.

Clamping bolts offer the advantage that they can be rotated away from the clamping area after release.

Clamping bolts can also be used as stepless adjustable end stops. If the washer is removed the bolt can be clamped direct to its support.

Ball point screws GN605 with flattened ball are recommended in connection with these clamping bolts.

Specification

Eccentrical cam - Stainless steel NI, German Material No. 1.4305, chemically nickel plated

Screw bolt and washer - Stainless steel NI, German Material No. 1.4021 tempered, chemically nickel plated.

Ball lever (type KV) - Stainless steel NI, German Material No. 1.4305, matt shot-blasted.

Ball knob DIN319 plastic, Duroplast, black, shiny finish.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1TypeClamping
direction
Materiald2d3d4h1h2h3h4h5l1l2A/FMass

GN918.6-40-KV-R40KVRNIM8242510312155318100150.179
GN918.6-40-KV-L40KVLNIM8242510312155318100150.178
GN918.6-40-GV-R40GVRNIM8242510312155318100150.177
GN918.6-40-GV-L40GVLNIM8242510312155318100150.177
GN918.6-40-SK-R40SKRNIM8242510312155318100150.087
GN918.6-40-SK-L40SKLNIM8242510312155318100150.087
GN918.6-50-KV-R50KVRNIM1028301234524623611116190.305
GN918.6-50-KV-L50KVLNIM1028301234524623611116190.31
GN918.6-50-GV-R50GVRNIM1028301234524623611116190.304
GN918.6-50-GV-L50GVLNIM1028301234524623611116190.307
GN918.6-50-SK-R50SKRNIM1028301234524623611116190.154
GN918.6-50-SK-L50SKLNIM1028301234524623611116190.154
#83556.45~83560.15#
