GN9190 Side Clamps with Eccentrical Cam Lever

Choose your Part

Please select desired options to reveal part number, price and availability

Options

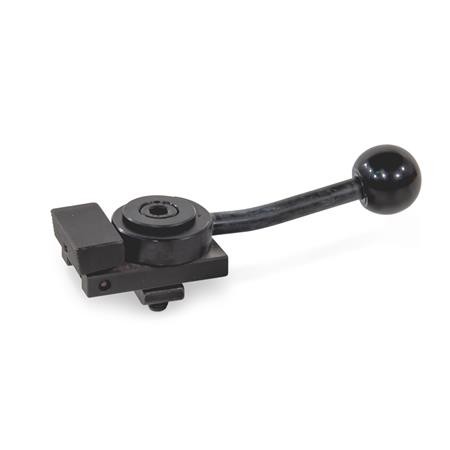

Type E - With serrated clamping jaw

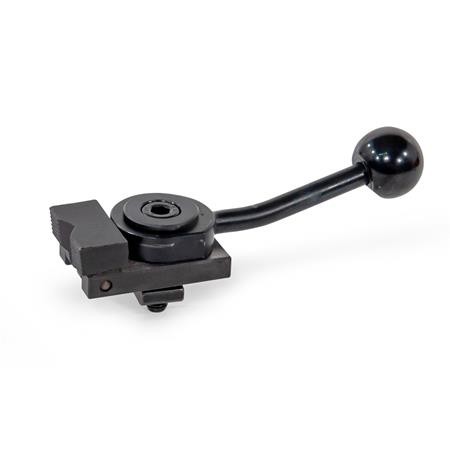

Type P - With prism clamping jaw

Code R - Clamping by clockwise rotation

Code L - Clamping by anti-clockwise rotation

Product Description

GN9190 Side Clamps with Eccentrical Cam Lever

With side clamps GN 9190, workpieces are clamped with a pivoted clamping jaw. The clamping force acts laterally and from above to pull down on the workpiece and clamp it against fixed stops and the supporting surface.

The clamping stroke of the clamping jaw results from the swivel movement of the eccentrical cam lever. When the lever is released, the clamping jaw is returned by spring force. The low overall height of the side clamps allow full surface machining of the workpiece.

Side clamps can be screwed in directly, e.g. in a mounting plate, or fastened to machine tables with T-slots. In addition, they can be mounted in any position perpendicular to the T-slot using the slotted support blocks GN9190.3, which are available as an accessory.

Specification

Clamping mechanisms - Steel, case-hardened, blackened

Ball knob DIN319 - Plastic, Duroplast, black, shiny finish

For slot width a = 10 / 14 - Nut for T-slots DIN508. Socket cap screw DIN912 - Steel, blackened

For slot width a = 12 - T-slot bolt DIN787. Hexagon nut DIN934 - Steel, blackened

Accessory

Slotted Support Blocks GN9190.3
