Please select desired options to reveal part number, price and availability
Options
Type A - Stainless steel contact plate with setting nut.

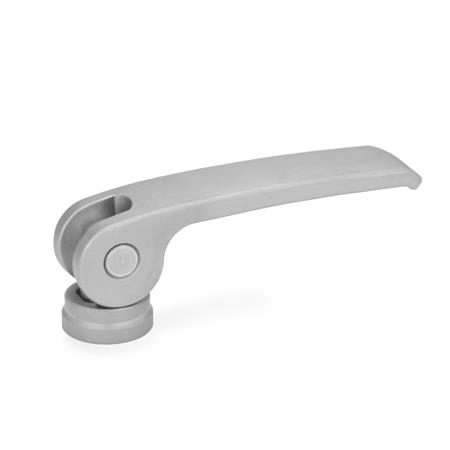

Type B - Stainless steel contact plate without setting nut.
Product Description
GN927.7 Stainless Steel Clamping Lever, Eccentrical Cam, with Stainless Steel Contact Plate.
These stainless steel clamping levers, GN 927.7, with eccentrical cam are used for rapid clamping and releasing. Unlike clamping operation using a thread, these levers permit a torque-free clamping.
The lever has been designed to ensure that its movement cannot exceed the maximum clamping force.
There are no loose components since they are all assembled and mounted in their correct order.
Type A has additional advantages in that the distance between the lever cam and the clamping surface is adjustable via a fine pitch thread, allowing the clamping position to be set easily with maximum clamping force. Also, the position of the lever relative to the clamping axis can be determined.
With these clamping levers with eccentrical cam, clamping forces of up to 8 kN can be reached.
Specification
Lever - Stainless Steel NI, AISI CF-8
Axis, lag nut, setting nut - Stainless Steel NI, AISI 303
Contact plates - Stainless Steel NI, Super Duplex 255, hardened.
On request
Clamping surface free of grease.
CAD Viewer
Technical Data
