Please select desired options to reveal part number, price and availability
Options

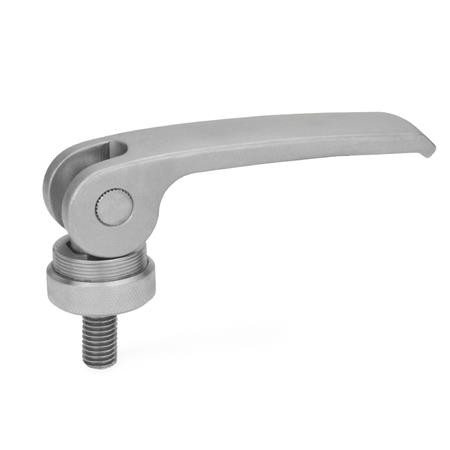

Type A - Stainless steel contact plate with setting nut.
Type B - Stainless steel contact plate without setting nut.
Product Description
GN927.7 Clamping Lever, Stainless Steel, Eccentrical Cam
These stainless steel clamping levers, GN 927.7, are used for rapid clamping and releasing. Unlike clamping operation via a thread, these levers are used for rapid clamping and releasing, allowing for a torque-free clamping.
The lever has been designed to ensure that its movement cannot exceed the maximum clamping force.
There are no loose components since they are all assembled and mounted in their correct order.
Type A has additional advantages in that the distance between the lever cam and the clamping surface is adjustable via a fine pitch thread, allowing the clamping position to be set easily with maximum clamping force. Also, the position of the lever relative to the clamping axis can be determined.
With these clamping levers, clamping forces of up to 8 kN can be reached.
Specification
Lever - Stainless Steel NI, AISI CF-8
Axis, lag screw, setting screw - Stainless Steel NI, AISI 303
Contact plates - Stainless Steel NI, Super Duplex 255, hardened.
On Request
Non-greased clamping surface.
CAD Viewer
Technical Data
