Product Description

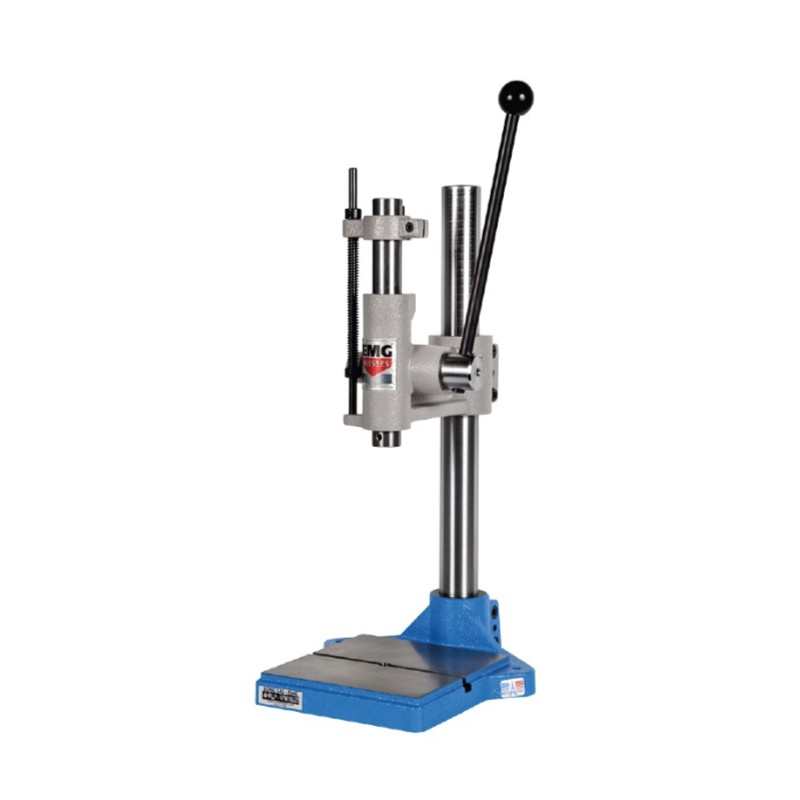

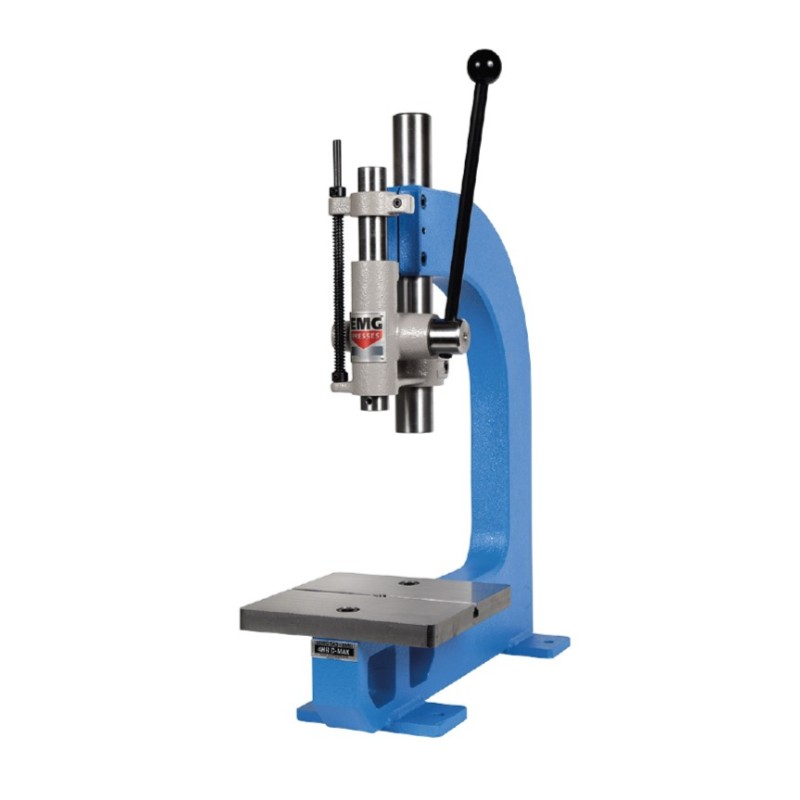

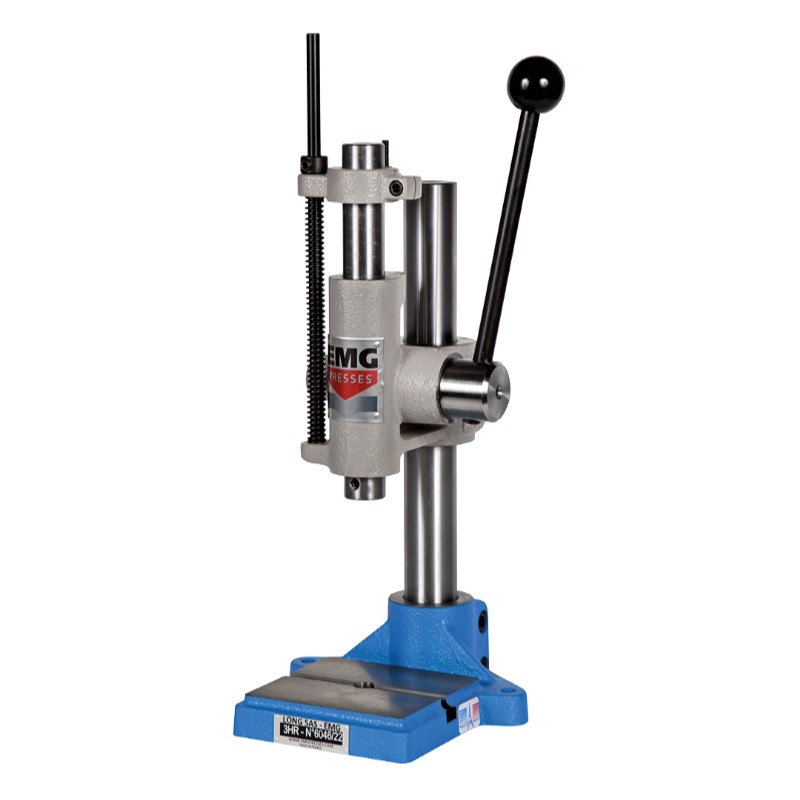

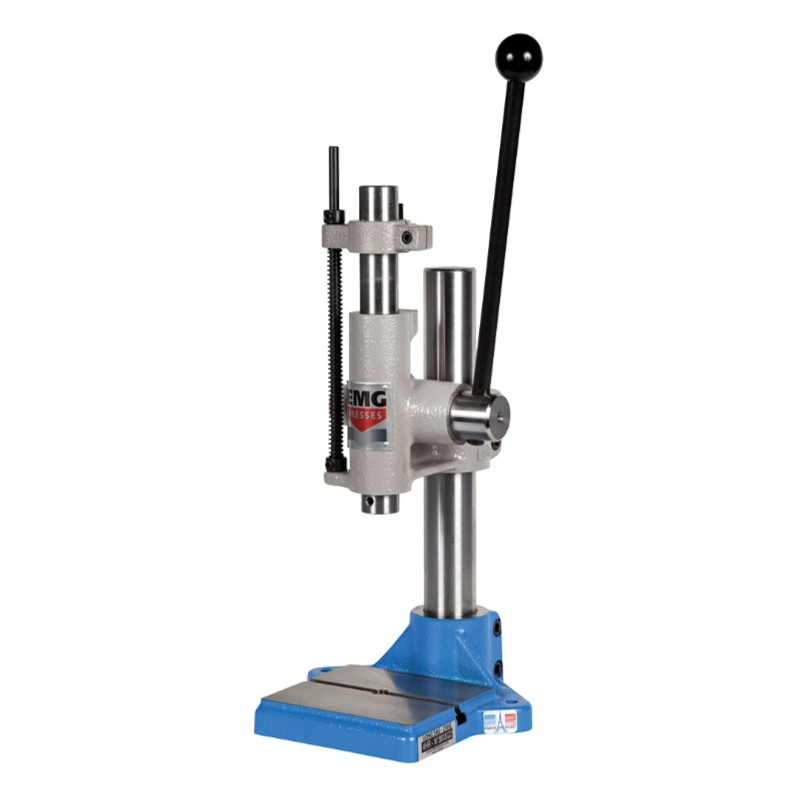

EMG Manual Rack Presses from 200kg to 600kg - 2HR - 3HR - 4HR - 4HRLP

Presses are an essential tool in any workshop. Strong, reliable and safe, these benchtop presses provide linear power over the entire travel duration to the applied load on the lever. The ergonomic design, easily powered by hand, makes this industrial rack press ideal for a range of machine tasks including punching, pressing, stamping, assembly, connections, small forms various crimping operations and many more tasks, and it's maintenance free.

• Slider adjusted and locked for rotation, ensuring longevity and precision.
• Automatic raising of the slider by spring (adjustable tension, except 2HR)
• Quick and reliable adjustment of the clear height.
• Accurate adjustment of bottom dead center by a mechanical stop ensuring the repetitiveness of the cycle.
• Adjustment of the starting position of the lever in order to optimize ergonomy of the press.
• Base support and press head made of FGL 250 cast iron, thus ensuring robustness and rigidity.
• Predisposition for fixation on a bench.
• No maintenance, no greasing.
• Paint: Frame in sky blue, RAL 5015 platinum grey, RAL 7036.

Additional Options

• On request: special bores, press head only.
• Special RAL paint.
• Locking of the press head on the column for rotation.
• Engage the press when in position and release by lever.
• Special services on request (press modifications, small tooling and fitting).

Specification

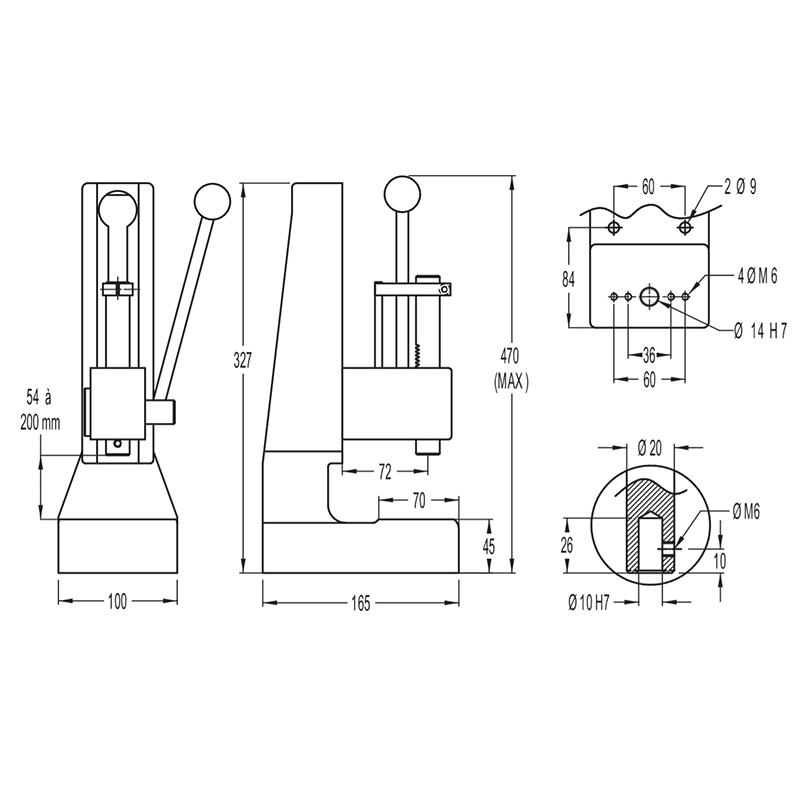

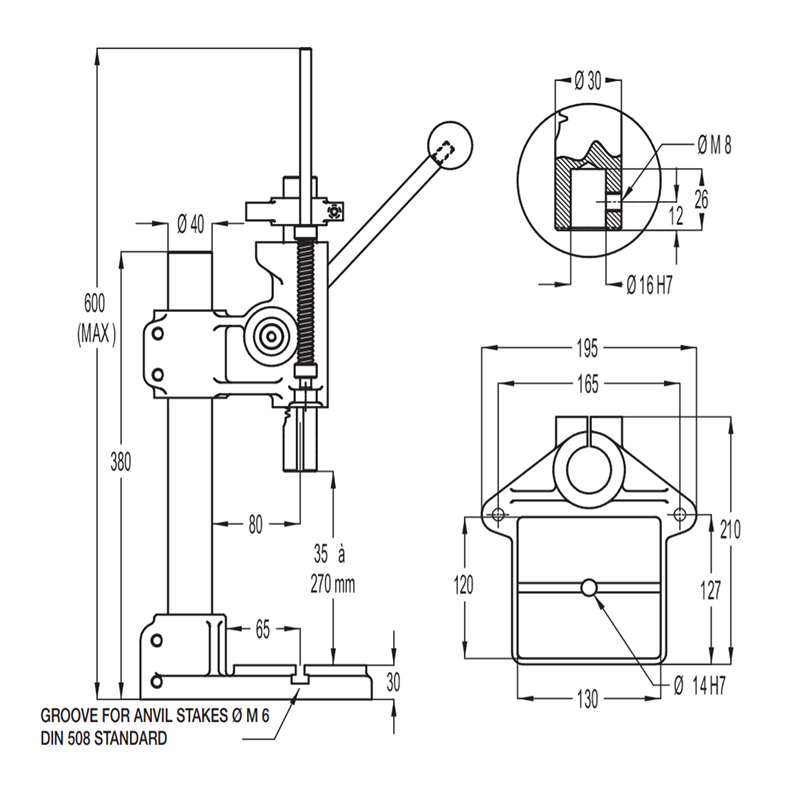

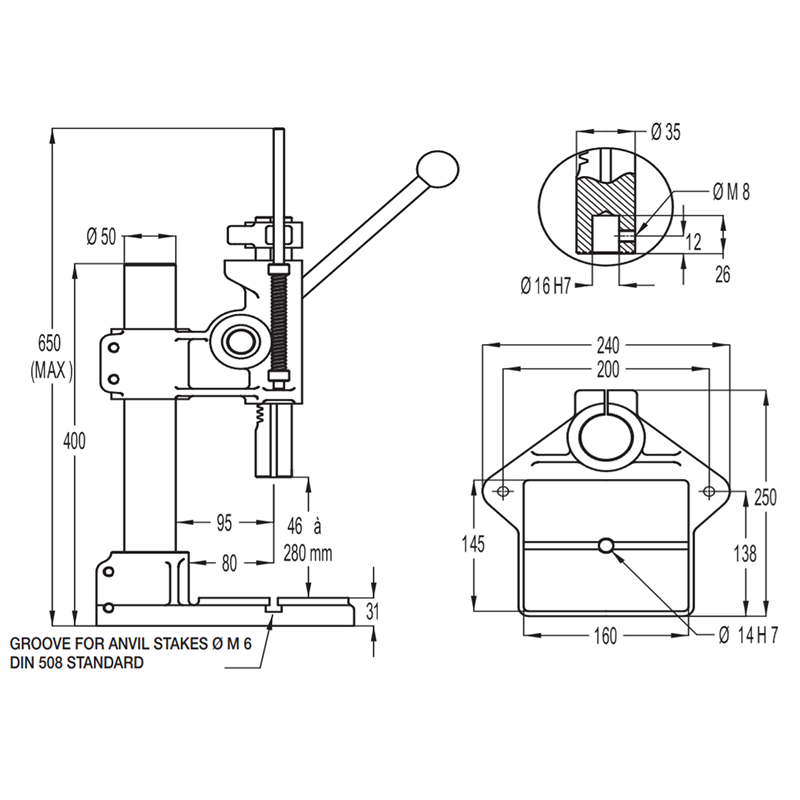

Each press is delivered with an operating manual, EC conformity statement, and drawings. They make a cost effective investment and come with a one year total warranty for parts, labour and travel as standard.
