E40 296x396 Risers - Die Mould Bases

CloseNextPrevious



CloseNextPrevious



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

CAD Viewer Technical Data

Product Description

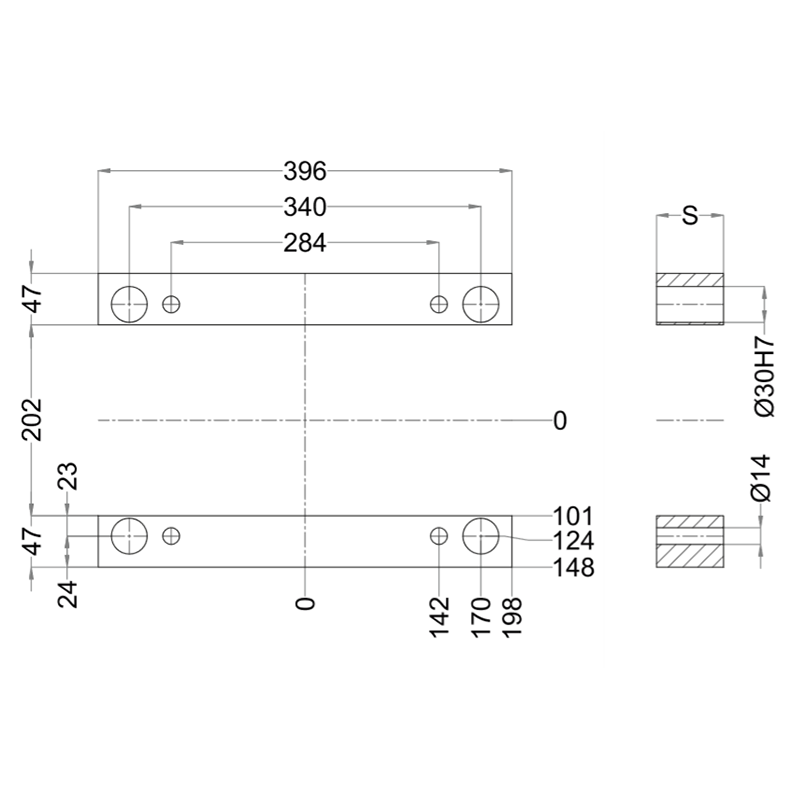

E40-296-396 Risers Die Mould Bases

We have combined the best of both worlds - these plates provide complete European standard interchangeability using the most popular plates in the world and the extreme precision of our unique plate centring edge that guarantees high quality results, every time.

Specification

Tool Steel 1.1730 as standard, other materials on request.

Tool Steel 1.1730 is a steel with high workability and micro structural consistency, with a uniform hardness less than 207HB. Prior to processing, the plates are stress relieved in order to reduce internal stresses and create the best conditions for processing with limited deformation. All materials are heat treated in a bell furnace and kept at 580°C for at least 5 hours and then slowly cooled with a ramp of 35 c/h, to room temperature.
