*rCu reserve of stroke **S piston working size
Product Description
3LB Nitrogen Stripper Unit

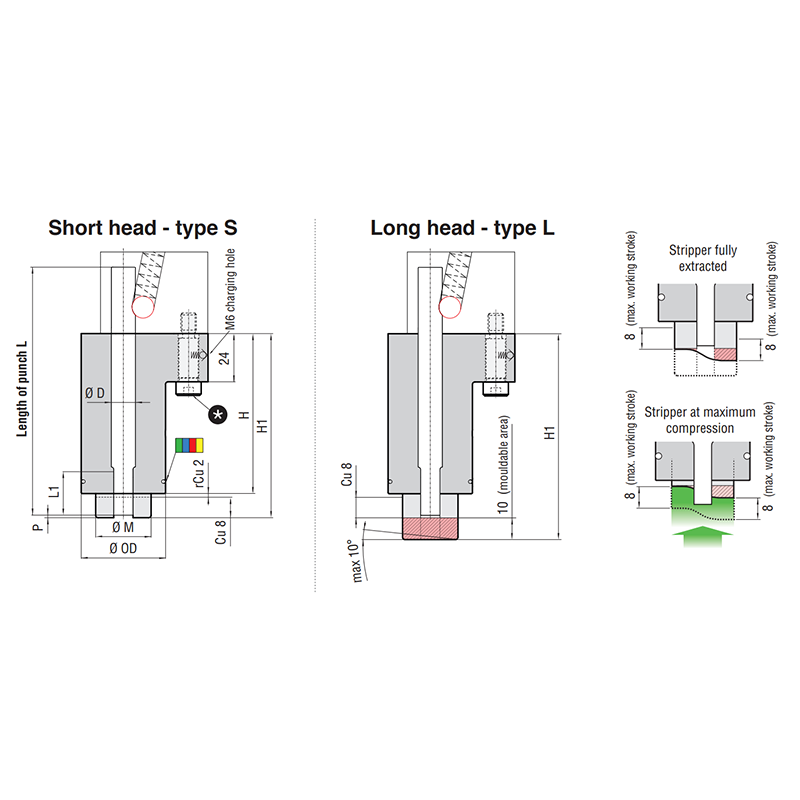

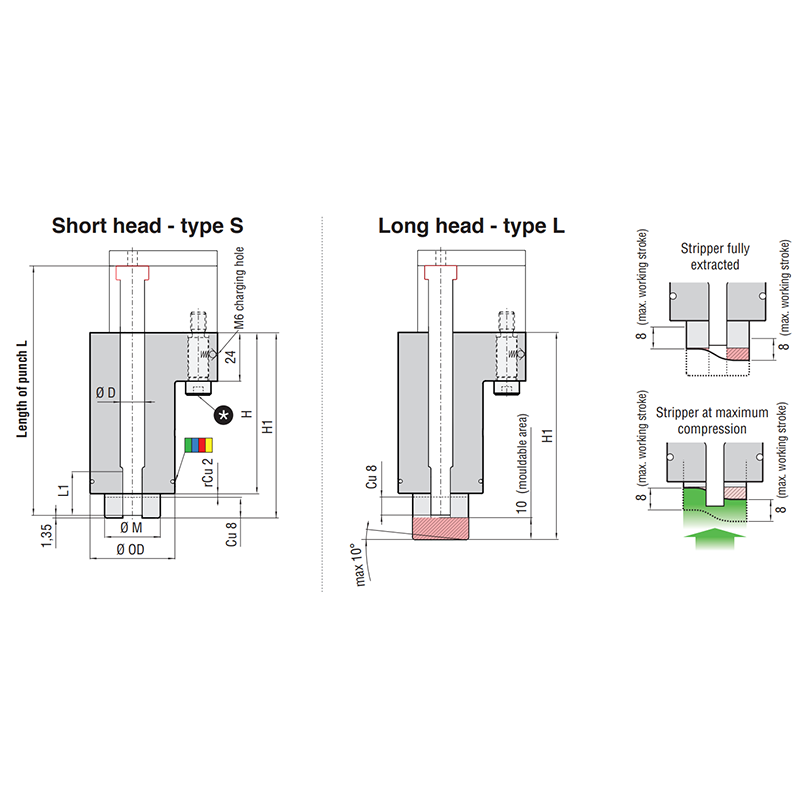

Heavy duty adjustable force nitrogen gas stripper unit 3LB allows for direct mounting to standard retainers for ball-lock and ISO headed punches.
The unit is either available with basic stripper head (no punch point guiding shape built-in) or with punch point built-in. These are removable and machinable.
Always secure the NITRO STRIP on the punch retainer using thread lock and tightening torque 24 Nm
Features:
- Anti - rotation head with 8 mm stroke
- Contact force as high as 1880 daN
- Stripping force as high as 3200 daN
- Adjustable stripping force
- Linkable to other NITRO STRIP units for versatility
- Compact design
