Product Description

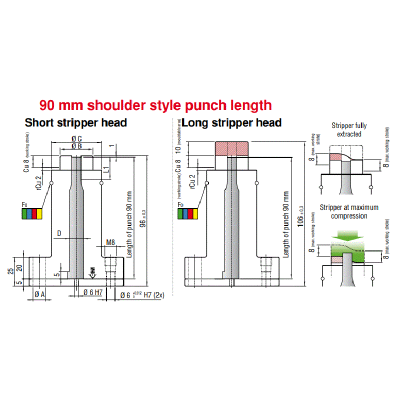

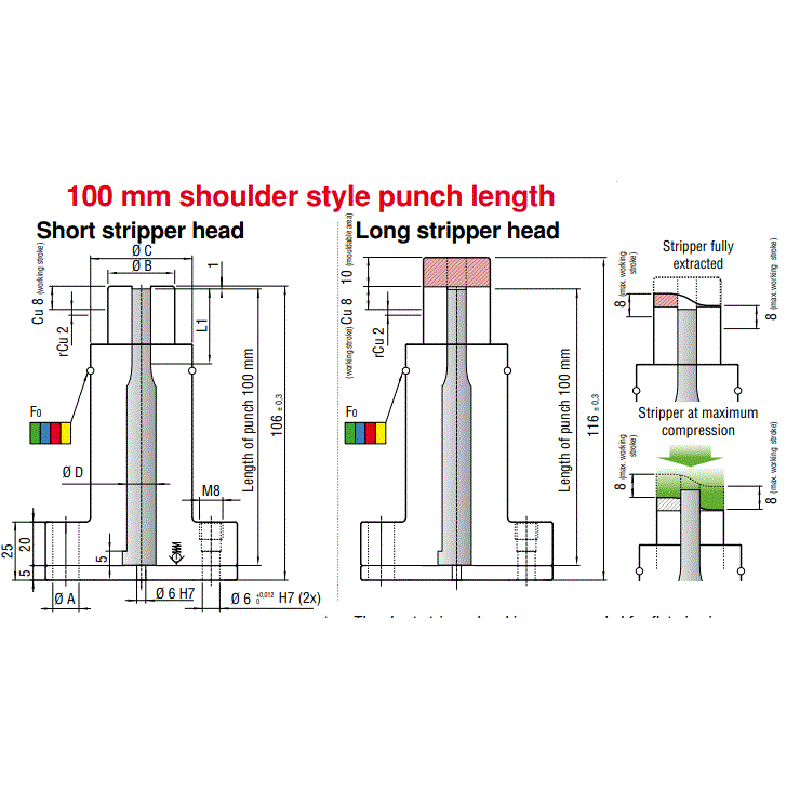

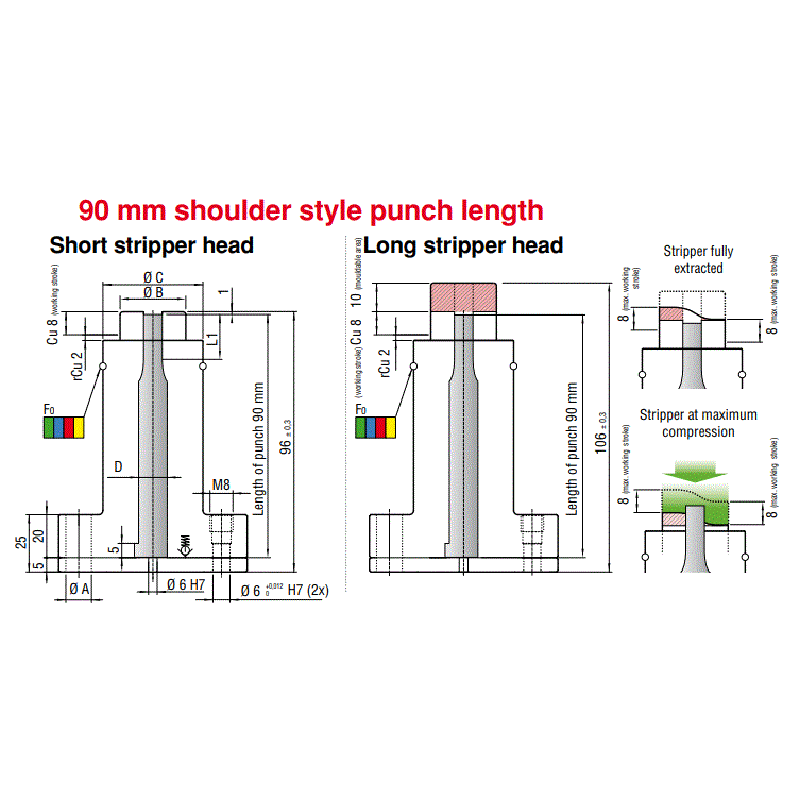

3LMP Stripper Head Clamp for Nitrogen Punching Unit
The stripper head is removable and mouldable with a high and adjustable holding and stripping force. Doesn't require the use of standard retainer and ideal for combined use with cam unit.
Suitable for ISO8020 shoulder style punch
| Reference to Nitrogen Unit code | Stripper head Clamp Jig code |
|---|---|
| 3L P01A (GR/BU ...) | 3L MP01A |
| 3L P02A (GR/BU ...) | 3L MP02A |
| 3L P03A (GR/BU ...) | 3L MP03A |
| 3L P04A (GR/BU ...) | 3L MP04A |
| 3L P05A (GR/BU ...) | 3L MP05A |
| 3L P06A (GR/BU ...) | 3L MP06A |
| 3L P07A (GR/BU ...) | 3L MP07A |
To view assembly and disassembly instructions please turn to page 6 of the PDF that is available in the Tech spec section above for further information.
