Please select desired options to reveal part number, price and availability
Product Description

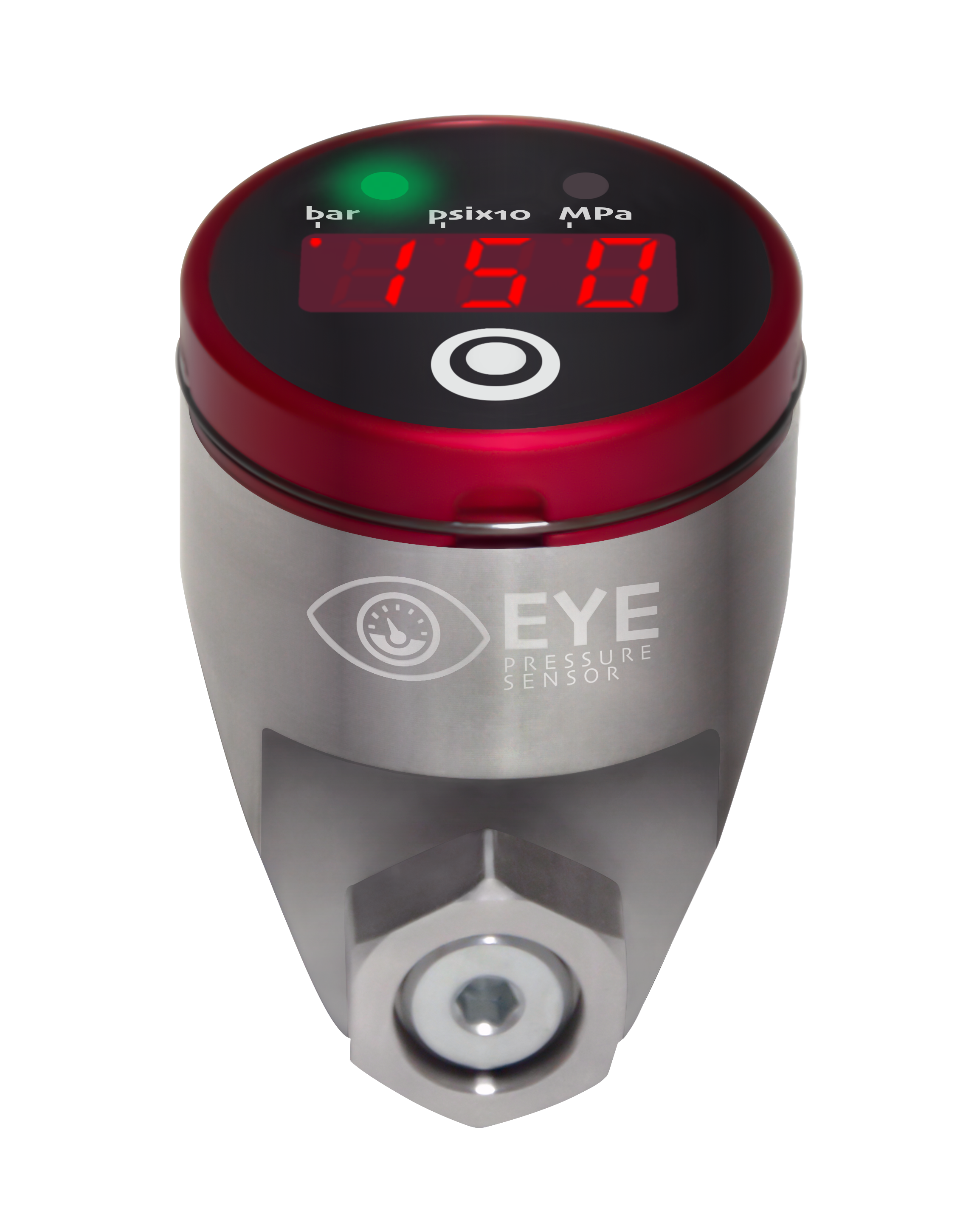

SPB Eye Pressure Sensor
Battery-powered digital system Eye Pressure Sensors quickly measure the pressure of self-contained gas springs on demand. Red light activates, when measuring, if pressure drops below the minimum set value. Digital display in bar, psi or Mpa. Has a simple interface and long-lasting battery.
Specification
Measuring range (relative) - 0 ÷ 600 bar / 8700 psi / 60 MPa
Visualisation - 3 digit display + 2 led
Measurement unit - bar, psix10, MPa
Resolution - 1 bar, 10 psi, 1 MPa
Accuracy - ±1,0% f.s. or ±1 digit, whichever is greater
Working temperature - 0 ÷ 80°C
Compatible fluids - Nitrogen
Battery - Maxell CR2032-3V, 220mAh*
Material - Stainless steel/Aluminum alloy
Connection - G 1/8
Alarms - Min. pressure (adjustable), Pressure over 450 bar / 6530 psi / 45 MPa, Sensor malfunction, Low battery
Battery lifetime - > 2000 readings Protection Grade: IP65
| Part Code |
|---|
| SPB-01A |
CAD Viewer
Technical Data
