GN1024 Spring Connectors, Stainless Steel

CAD Viewer Technical Data

Series Selector

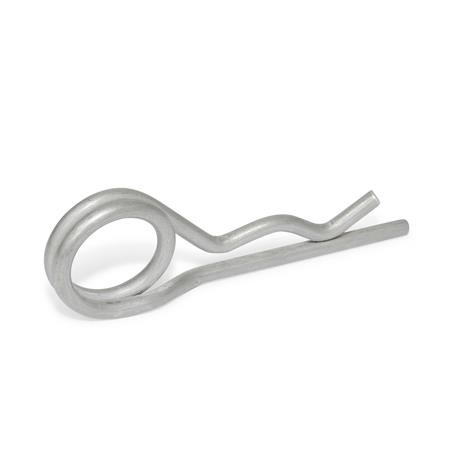

Type D - with double winding

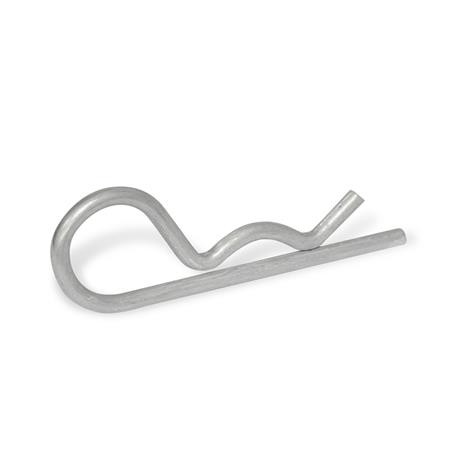

Type E - with single winding

CAD Viewer Technical Data

Product Description

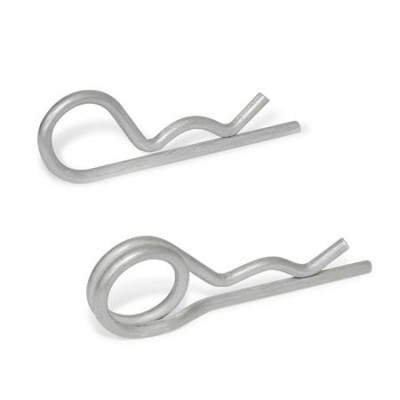

GN1024 Spring Connectors, Stainless Steel

Spring connectors or cotter pins, in stainless steel, GN1024 are used for the axial fixing of bolts and axes and as distortion guards, e.g. for crown nuts DIN935.

Being made of stainless steel, they are ideal for use in clean room environments, such as found in the food, medical & pharmaceutical industries. They are also useful for longer life in challenging conditions, for example salty or corrosive environments.

Owing to their double winding, spring connectors Type D have a flatter spring characteristic and are therefore easier to install. Also, a retaining rope including a key ring can be attached to the double winding to safeguard the spring connector against loss.

Also available in steel GN1024


Stainless Steel NI AISI 303
