Please select desired options to reveal part number, price and availability
Options
Type A - With Threaded Stud

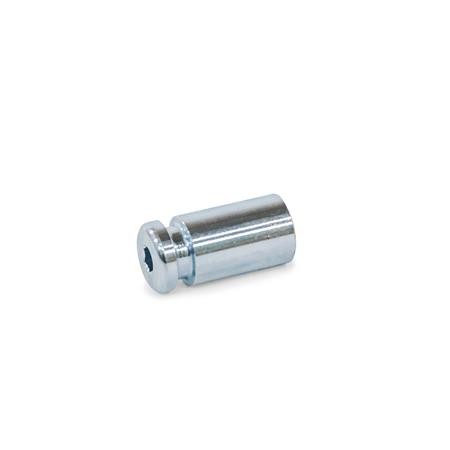

Type I - With Internal Thread
Product Description
GN1050.1 Studs for Quick Release Couplings GN1050 and Flanges GN1050.2
Studs GN 1050.1 position and attach components without tools using quick release couplings GN1050 for a tight and repeatable fit. The dimensions and material properties of the studs have been precisely adapted to the couplings to ensure proper functionality.
The studs can be purchased individually so that multiple studs can be paired with a coupling in alternation, such as to efficiently position fixtures in different locations depending on the workpiece. The studs are fastened with threaded stud or internal thread, depending on the type.
To achieve the indicated load capacities, threaded holes on the application or inserted nuts and screws must meet at least property class 8.
Flanges GN1050.2 are available as an accessory for mounting the studs and provide additional attachment options.
Specification
Steel ST, tempered, zinc plated, blue passivated.
