GN111.2 Retaining Cables, with Tab or Key Ring, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

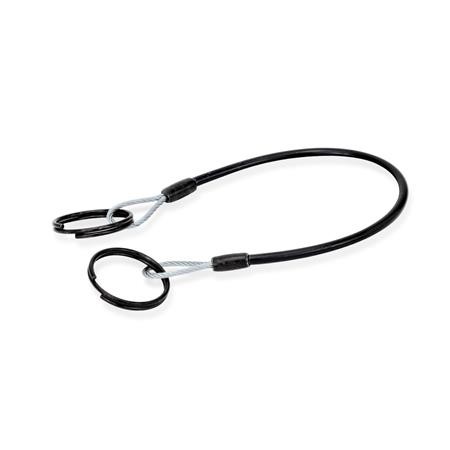

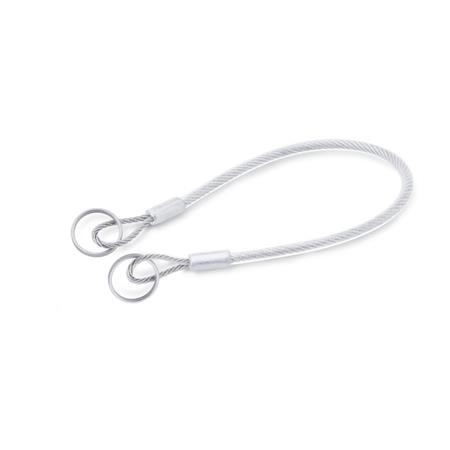

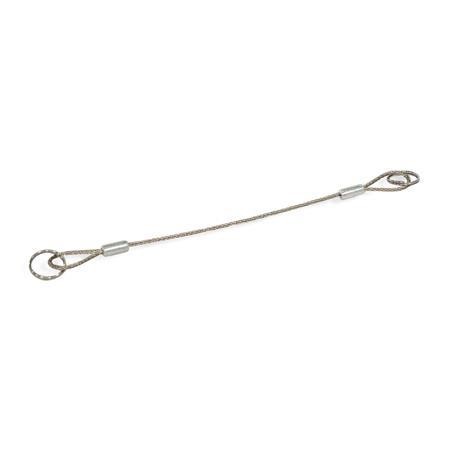

Type A - with 2 key rings

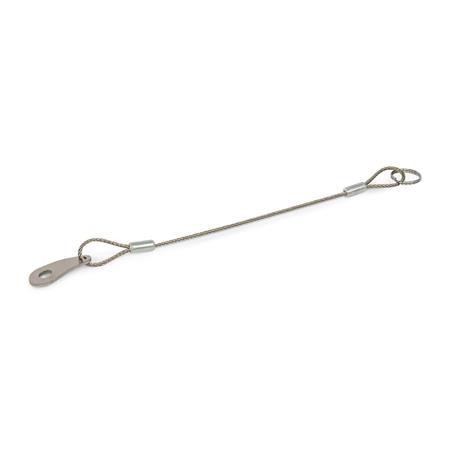

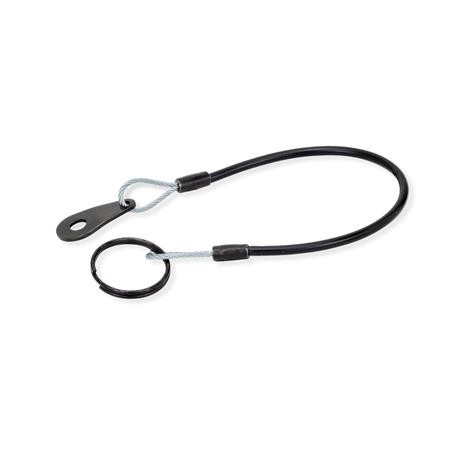

Type B - with fastening tab and key ring

Product Description

GN111.2 Retaining Cables, with Tab or Key Ring, Stainless Steel

Retaining cables GN 111.2 can be used for numerous different applications eg. securing a device and as a connection for fasterning cables including in connection with ball lock and axial pins to prevent loss.

The black design is visually discreet and is particularly beneficial where minimal surface reflection is required.

The key rings are supplied fixed to the Stainless Steel retaining cable. If two rings are chosen, type A, both rings have the same d1.

For all types the loops are reversed laterally and attached parallel to each other. The details on load-bearing capacity are guide values given without warranty.

Types A & B are suitable for ball lock pins and locking pins with axial lock:

*
- GN113.11, GN113.12 for pins Ø 5, Ø 6
- GN113.1, GN113.3, GN113.4, GN113.7, GN113.8, GN113.9, GN113.10, GN214.2, GN214.3, GN214.6 for pins Ø 5, Ø 6, Ø 8
- GN113.5, GN113.6, GN114.2, GN114.3, GN114.6, GN124.1, GN124.2 for all pins

**
- GN113.11, GN113.12, GN314 for pins Ø 8, Ø 10, Ø 12
- GN113.1, GN113.3, GN113.4, GN113.7, GN113.8, GN113.9, GN113.10, GN214.2, GN214.3, GN214.6 for pins Ø 10, Ø 12, Ø 16, Ø 20, Ø 25

***
- GN113.11, GN113.12, GN314 for pins Ø 16, Ø 20, Ø 25

Specification

• Static Load without Keyring 1800N
• Retaining cable- Stainless Steel AISI 304
• Plain finish BL
• Plastic coated (PVC)
• Transparent TR
• Black SW
• Mounting Tab - Stainless steel AISI 304
  • Plaing (for BL / TR)
  • Zinc plated, blue passivated (for SW)
• Key ring - Stainless steel AISI 301
  • Plain, ground (for BL / TR)
  • Zinc plated, black passivated (for SW)
• Press Sleeves - Aluminium
  • Plain (for BL / TR)
  • Black anodized (for SW)

Accessory

Spare key rings - GN111.3
