Product Description

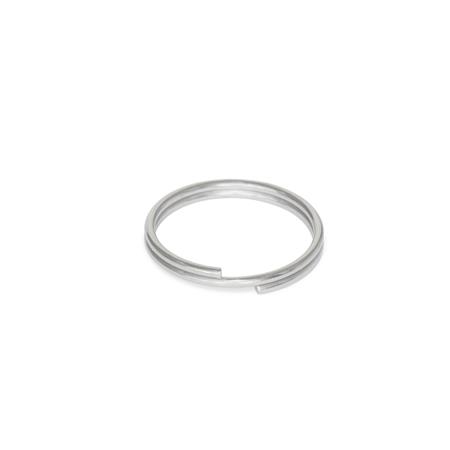

GN111.3 Key Ring, Stainless Steel, for Ball Chains

Key rings GN 111.3 are suitable as universal connection elements for traction cables, ball chains, retaining straps etc. where light loads are possible. The black design is visually discreet and is also used in situations where the reflections on the surface are to be minimized.

The locking pins and ball lock pins listed in the table have location holes, which the key rings are threaded into. Furthermore, key rings can also be used to supplement retaining cables and ball chains as part of a loss protection system. Thus, it is very easy to secure several elements at the same time from any loss.

The details on load-bearing capacity are guide values given without warranty.

Suitable for ball lock pins and locking pins with axial lock:

* GN113.11, GN113.12 for pins Ø 5, Ø 6 - GN113.1, GN113.3, GN113.4, GN113.7, GN113.8, GN113.9, GN113.10, GN214.2, GN214.3, GN214.6 for pins Ø 5, Ø 6, Ø 8 - GN113.5, GN113.6, GN114.2, GN114.3, GN114.6, GN124.1, GN124.2 for all pins

** GN113.11, GN113.12, GN314 for pins Ø 8, Ø 10, Ø 12 - GN113.1, GN113.3, GN113.4, GN113.7, GN113.8, GN113.9, GN113.10, GN214.2, GN214.3, GN214.6 for pins Ø 10, Ø 12, Ø 16, Ø 20, Ø 25

*** GN113.11, GN113.12, GN314 for pins Ø 16, Ø 20, Ø 25

Specification

• Stainless steel AISI 301
• Plain finish, tumbled BL
• Zinc plated, black passivated SW
• Stainless steel AISI 316Ti A4
• Plain finish, tumbled BL.
