GN111.8 Retaining Cables, with Key Rings or Key Ring & Tab, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - with 2 key rings

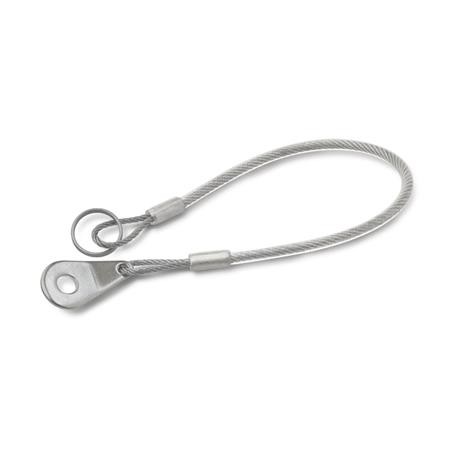

Type B - with mounting tab and key ring

Product Description

GN111.8 Retaining Cables, with Key Rings or Key Ring & Tab, Stainless Steel

Stainless steel retaining cables GN 111.8 are available in 3 different types and can therefore be used in a wide range of applications, e.g. for loss protection or as connecting and mounting cables.

Due to the selection of materials, these stainless steel retaining cables are suitable for use in highly corrosive environments.

On delivery the key rings are already mounted on the stainless steel retaining cable. With type A, both rings have the same diameter d₁.

For all types the loops are reversed laterally and attached parallel to each other, which is not entirely considered in the simplified drawing. The load values given in the table are non-binding guide values and rule out any liability.

Types A & B are suitable for ball lock pins and locking pins with axial lock:

* GN113.11, GN113.12 for pin sizes Ø 5, Ø 6
* GN113.1, GN113.3, GN113.4, GN113.7, GN113.8, GN113.9, GN113.10, GN113.30, GN214.2, GN214.3, GN214.6 for pin sizes Ø 5, Ø 6, Ø 8
* GN113.5, GN113.6, GN114.2, GN114.3, GN114.6, GN124.1, GN124.2 for all pin diameters

** GN113.11, GN113.12, GN314 for pin sizes Ø 8, Ø 10, Ø 12
** GN113.1, GN113.3, GN113.4, GN113.7, GN113.8, GN113.9, GN113.10, GN113.30, GN214.2, GN214.3, GN214.6 for pin sizes Ø 10, Ø 12, Ø 16, Ø 20, Ø 25

*** GN113.11, GN113.12, GN314 for pin sizes Ø 16, Ø 20, Ø 25

Specification

Retaining cable - Stainless Steel AISI 316 coated with clear plastic (PVC) Transparent TR

Mounting tab -  Stainless Steel AISI 316, Plain

Key ring - Stainless Steel AISI 316 Ti Plain, tumbled

Press sleeves - Stainless Steel AISI 316
