GN1410 Telescopic slides full extension load capacity up to 510N

Standard Machine Elements > Guides, Spindles, Ball Rollers, Slide Units, Guide Rails & Linear Actuators > Telescopic Slides
< Previous Product Next Product >

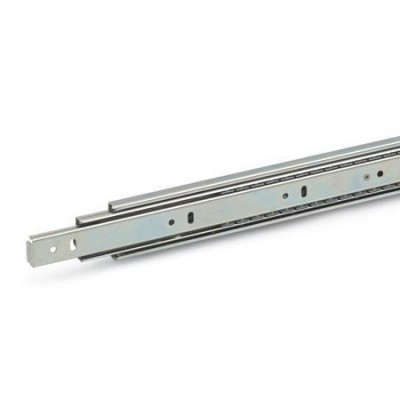

GN1410 Telescopic Slides, Full Extension, Load Capacity up to 510N



images/300/GN1410-Telescopic-slides-with-full-extension-load-capacity-up-to-510N-drawing_H.png



Type F - with rubber stop, locking device in back, detach function

Id no. 1 - Fastening using through holes

Select Values to Buy:

Tech Spec:



GN1410 Telescopic Slides, Full Extension, Load Capacity up to 510N

Telescopic slides GN 1410 are installed vertically and in pairs. The stroke reaches ≈ 100 % of the nominal length l1 (full extension).

The telescopic slides are delivered in pairs. They can be installed on the extension on either the left or right side due to the mechanics. All mounting holes are easy to reach through auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.

Specification

Slide profile - Steel, zinc plated, blue passivated   ZB

Bearings - Roller bearing steel, hardened

Ball cage, outer slide - Plastic

Ball cage, inner slide - Steel, zinc plated

Rubber stop and detach function - Plastic / Elastomer

Operating temperature -20 °C to 100 °C

On Request Other attachment options. Other surfaces

RoHS compliant

Select / Deselect Visible Columns
Close
Hidel1Show
HideType Show
HideId NoShow
HideFinishShow
Hidel2Show
Hidel3Show
HideFs per pair in N
at 10,000 cycles
Show
HideFs per pair in N
at 100,000 cycles
Show
HideMaterialShow
PartCodel1Type Id NoFinishl2l3Fs per pair in N
at 10,000 cycles
Fs per pair in N
at 100,000 cycles
MaterialMass

GN1410-250-F-1-ZB250F1ZB250500450320ST0.7
GN1410-300-F-1-ZB300F1ZB300600460340ST0.88
GN1410-350-F-1-ZB350F1ZB350700480360ST1.04
GN1410-400-F-1-ZB400F1ZB400800510390ST1.2
GN1410-450-F-1-ZB450F1ZB450900510390ST1.48
GN1410-500-F-1-ZB500F1ZB5001000480360ST1.52
GN1410-550-F-1-ZB550F1ZB5501100460340ST1.63
GN1410-600-F-1-ZB600F1ZB6001200440340ST1.84
GN1410-650-F-1-ZB650F1ZB6501300420320ST2.04
GN1410-700-F-1-ZB700F1ZB7001400420320ST2.16
GN1410-750-F-1-ZB750F1ZB7501500400300ST2.25
GN1410-800-F-1-ZB800F1ZB8001600400300ST2.4
