GN146.1 Flanged Linear Actuator Connector, Aluminium

CloseNextPrevious



CloseNextPrevious

GN146.1: Flanged Linear Actuator
Connector - Bore d1: B50



CloseNextPrevious

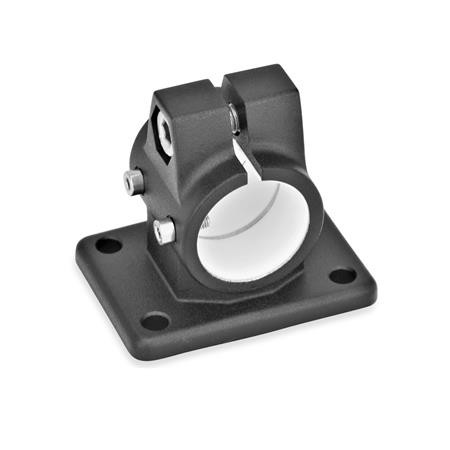

GN146.1: Flanged Linear Actuator
Connector - Bore d1: G50



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Identification no. 2 - with socket cap screw DIN912, stainless steel

Bore B - without sleeve bearing

Bore G - with sleeve bearing

CAD Viewer Technical Data

Product Description

GN146.1 Flanged Linear Actuator Connector, Aluminium, with 4 Mounting Holes

Flanged linear actuator connectors GN 146.1 are used in connection with a mounted linear actuator and for function control and are based on flanged connector clamps. The additional mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.

With the screw location z, the play of the guide bores d1 can be adjusted or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screw can be replaced by the adjustable hand levers GN911 listed in the table as accessories.

Specification

Aluminium, powder coated, black, RAL 9005, textured finish SW

Slide insert - Plastic PTFE

Socket cap screws DIN912 - Stainless Steel, AISI 304

Hexagon nuts DIN985 - Stainless Steel, AISI 304, self locking via polyamide ring

Accessory

Adjustable hand lever GN911
