GN148.4 Vibration Damping Elements, for Tensile / Compressive Load, Rubber, Steel Flange

Choose your Part

Please select desired options to reveal part number, price and availability

Options

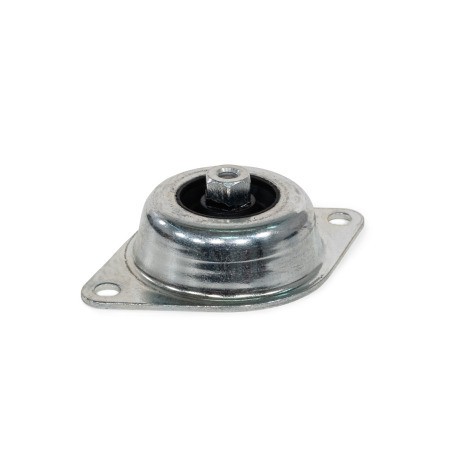

Type A - for two hole flange (d₁ = 60/90/113)

Type B - for four hole flange (d₁ = 60/90/113)

Product Description

GN148.4 Vibration Damping Elements, for Tensile / Compressive Load, Rubber, Steel Flange

Vibration damping elements GN 148.4 absorb vibrations to protect the environment of a machine from vibrations and / or noise.

Type B is designed primarily for tensile loads, making it suitable for overhead applications, and in combination with type A, it can also be mounted on the side (see application example).

Specification

• Vibration damping element - natural rubber (NR), vulcanised, black, operating temperature -40 degrees C to +80 degrees C
• Hardness Shore A ±5
• Soft 40
• Medium 60
• Hard 70
• Contact plate / Threaded insert - steel ST
