Type E - with clamping lever with eccentrical cam
Type K - with adjustable hand lever

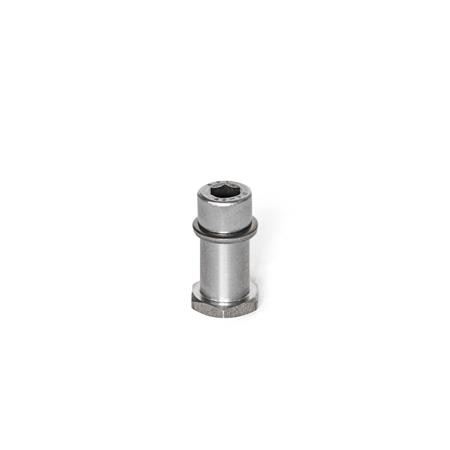

Type S - with socket head cap screw DIN912
Product Description
GN187.6 Locking Joint Sets, for Locking Plates GN187.5
Locking joint sets GN 187.6 can be used to combine Stainless Steel-Locking heads GN187.5 to form locking joints. Thanks to the hexagonal shoulder, which creates a form-locking connection that prevents the part from also turning, the centering threaded bushing allows fast and easy mounting. In the unlocked state, it forms the axis that positions the locking heads center to center.
The use of Stainless Steel-Thrust springs GN187.2 allows the locking heads to be cleanly separated from each other.
Type E and K is used in applications requiring frequent and tool-free adjustment of the locking joints.
The parts of the respective type are delivered loose in the set.
Specification
Type E - Eccentric lever Stainless Steel AISI CF-8, Contact surface Stainless Steel AISI 431
Type K - Hand lever, Zinc die casting, plastic coated, black, RAL 9005, textured finish
Type S - Socket cap screw DIN 912, Stainless Steel A2
Countersunk screw DIN 7991 / Washer - Stainless Steel A2
Other parts - Stainless Steel AISI 303
