GN192.15 T-Angle Linear Actuator Connector, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - without seals

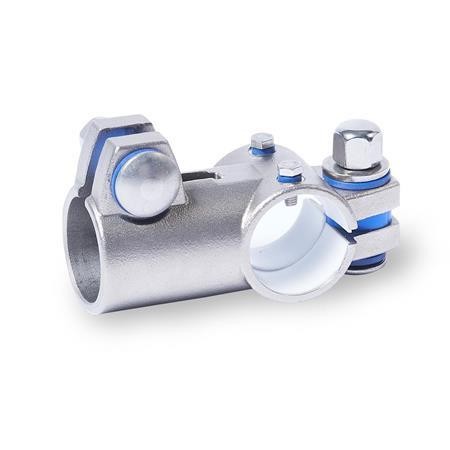

Type B - with seals

Identification no. 4 with cap nut DIN917, stainless steel

Product Description

GN192.15 T-Angle Linear Actuator Connector, Stainless Steel

T-angle linear actuator connectors GN 192.15 are based on T-angle connector clamps. The additional mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.

With the screw locations z2, the play of the guide bore d1 can be adjusted or the linear actuator connectors can be clamped after adjustment. TypeB is equipped with seals at the screw locations.

For quick clamping without tools, the cap nuts can be replaced by the adjustable hand levers GN 911.3 listed in the table as accessories.

Specification

• Stainless steel AISI CF-8, matte shot blasted
• Sleeve bearing - plastic (PTFE)
• Carriage bolt DIN603 - stainless steel
• Cap nuts DIN917 / Washers - stainless steel
• Seals
  • Sealing disks - Plastic (polyacetal POM)
  • Spacer ring - Silicon, 40-60 Shore A
