GN192.9 T-Angle Connector Clamp, Plastic

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Identification no. 2 - with 2 cap nuts DIN 912, stainless steel

Product Description

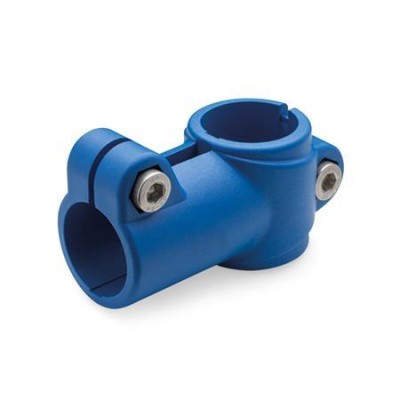

GN192.9 T-Angle Connector Clamp, Plastic

The clamping bores axes of the T-angle tube connector clamps GN 192.9 lie in the same plane, arranged in a T-shape. They hold typical construction tubes with full surface contact over the entire cross-section of the bore.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping. Adapter bushings GN290 can be used to reduce the bore cross-sections to a smaller diameter.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN911.9 listed in the table as accessories.

Specification

• Plastic, technopolymer (Polyamide PA), glass fibre reinforced, temerature resistant up to 100º C, matte finish.
• Black, RAL 9005, S
• Grey, RAL 7040, G
• Blue, RAL 5005, FDA compliant plastic granulate, visually detectable, V
• Socket cap screws, DIN912 - stainless steel AISI 304
• Hex nuts DIN985 - stainless steel AISI 304, self locking with a polyamide ring
