GN2260 Rigid Couplings, Slotted, For High Torques, Steel / Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

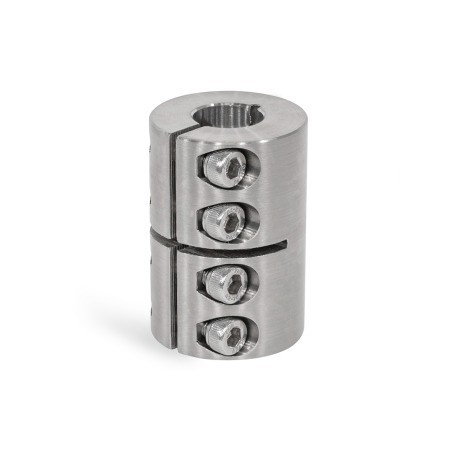

Bore Code B - without keyway

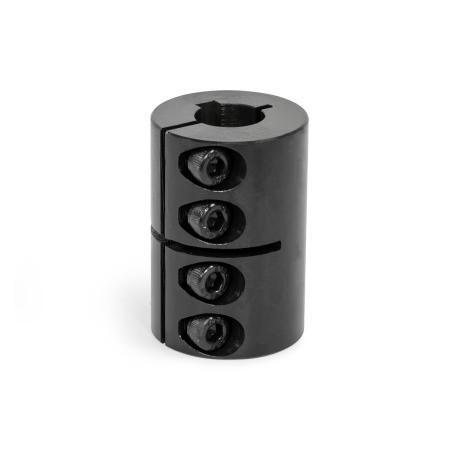

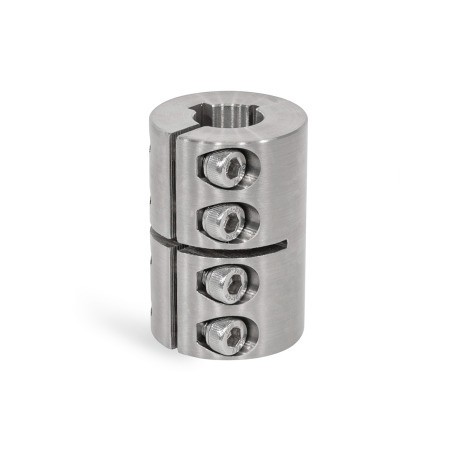

Bore Code K - with keyway DIN 6885-1 P9

Product Description

GN2260 Rigid Couplings, Slotted, For High Torques, Steel / Stainless Steel

Rigid couplings GN 2260 connect supported shafts or are used as couplings for shaft extensions. They transmit angular positions and high torques precisely and with zero backlash, without compensating for alignment errors and runout tolerances. The slotted design makes them very easy to install.

For the bore code K, the keyway is always integrated into both bores d₂ and d₃. For applications with strong vibrations, thread locking is recommended for the clamping screws.

Specification

• Coupling, operating temperature -40 degrees C to +175 degrees C.
• Steel - blackened, ST
• Stainless steel SIS303 - plain finish NI
• Socket cap screws ISO4762
• Steel, blackened for ST
• Stainless steel for NI
