GN22892 Heavy Duty Castors, Polyamide, Heavy Version
CloseNextPreviousGN22892 Heavy Duty Castors, Polyamide
Bearing Type, K Type B, Material ST
CloseNextPreviousGN22892 Heavy Duty Castors, Polyamide
Bearing Type, K Type L, Material ST
CloseNextPreviousGN22892 Heavy Duty Castors, Polyamide
Bearing Type, K Type LF, Material ST
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Bearing Type K - Ball bearing

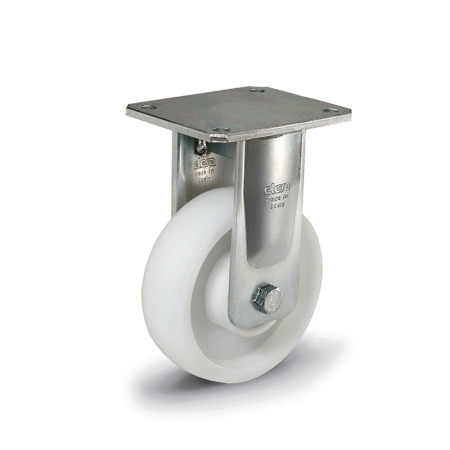

Type B - Rigid bracket

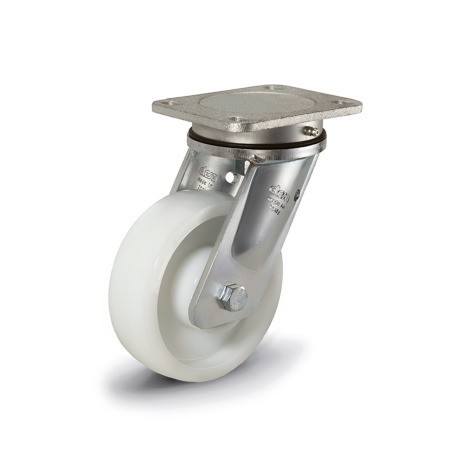

Type L - Swivel bracket with mounting plate

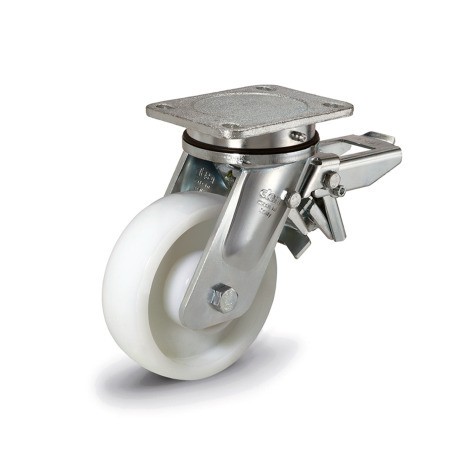

Type LF - Swivel bracket with mounting plate, with total lock brake
Code H - Heavy version
Product Description
GN22892 Heavy Duty Castors, Polyamide, Heavy Version
Heavy duty casters GN 22892 are used in industrial and public indoor areas for moving heavy carts.
The wheel tread offers low rolling resistance as well as good wear and tear resistance.
The low wear on the ball bearing increases the service life, and the mounting to the inner ring can be accomplished with zero axial backlash.
Specification
- Wheel tread / Wheel core
- Plastic, polyamide (PA), single part, white, hardness 70 Shore D
- Bracket
- Welded steel design, zinc plated ST
- Swivel head bracket
- Ball thrust / tapered roller bearing, grease lubricated
- Relubrication possible
- Operating temperature -30º C to +80º C
CAD Viewer
Technical Data
