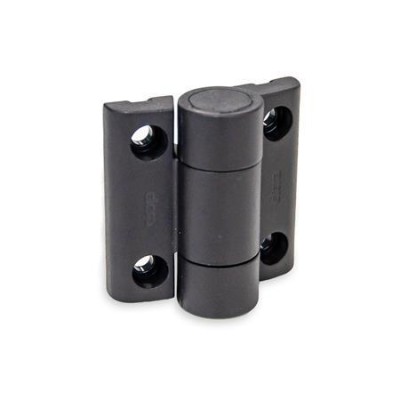

GN233.4 Hinges, Plastic, With Detent

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - Indexing Positions -70°, -7° and 80°

Type B Indexing Positions -70°,-7° and 115°

Type C Indexing Positions -70°, -7° and 150°

Identification Number 1 - Low Holding Torque

Identification Number 2 - Medium Holding Torque

Identification Number 3 - High Holding Torque

Product Description

GN233.4 Hinges, Plastic, With Detent

Hinges GN 233.4, with detent, hold doors and flaps in the predefined indexing position without additional mechanics.

This is particularly advantageous when machines and systems must be frequently opened and closed for loading and unloading, and it is also useful for maintenance and repair work. Unwanted, automatic closing or opening is thus prevented.

The -7° position of the hinges also ensures that the door or cover presses slightly against the housing frame when closed.

Specification

• Plastic Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 80 °C, black, matt finish, SW.
• UV Resistant
• Compression spring - Stainless steel
