Product Description

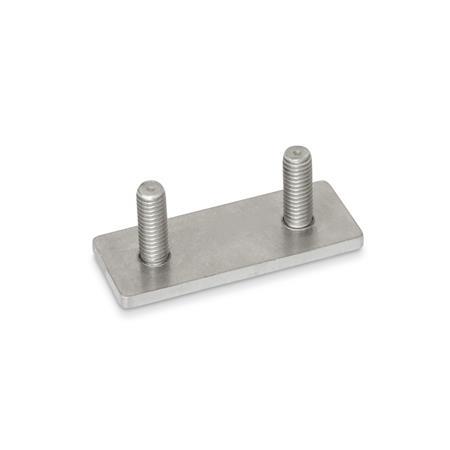

GN3276 Hinge Plates with Threaded Studs, Stainless Steel, for Hinges GN7237 & GN235
Stainless steel hinge plates with threaded studs, GN 2376, are designed as accessories for stainless steel multiple joint hinges GN7237 as well as hinges GN235. They make additional threads, bolts, nuts and washers unnecessary during installation. This eliminates the labor-intensive pre-installation of such parts as well as the need to hold them in place during tightening or loosening.
The plates are fastened from the outside via through-holes in the housing wall or alternatively by welding to the inside of the wall. This results in effective protection against vandalism, and the outsides of the housing remain free of attachments that do not match the design or that should be avoided entirely in the interests of easy cleaning.
Specification
Stainless Steel NI AISI 304, matt, ground MT
Threaded studs - Stainless Steel AISI 304, pressed in
On Request
Other threaded studs
Other plate sizes
Other plate geometries
