GN238 Hinges with Adjustable Alignment Zinc Die Casting frames patented system compensate

Standard Machine Elements > Hinges, Latches and Locks for Doors, Cupboards, Drawers, Hatches and Covers > Hinges, adjustable
Next Product >

GN238 Hinge, Zinc Die Cast, plastic Coated with Adjustable Alignment

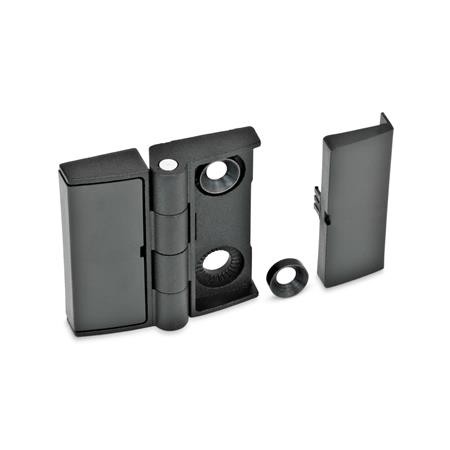

Form BJ - adjustable on both sides.

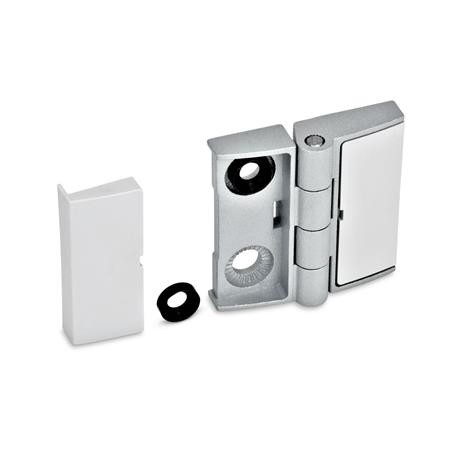

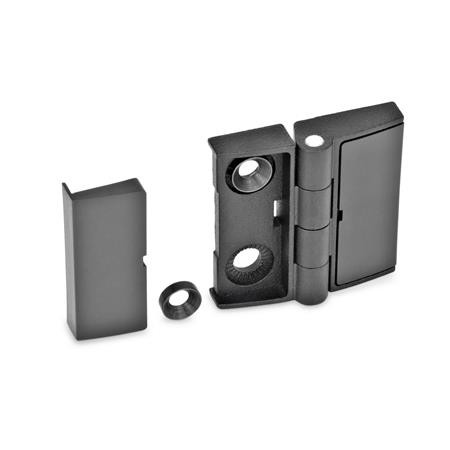

Form EJ - one-sided adjustable.

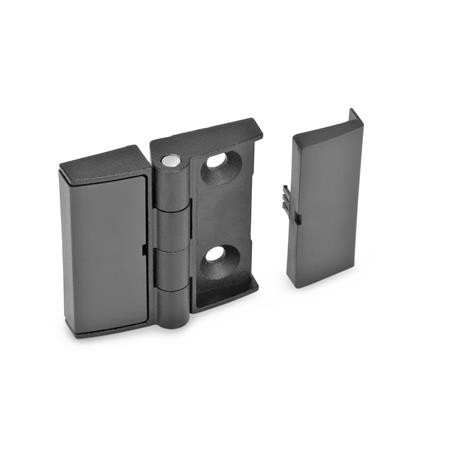

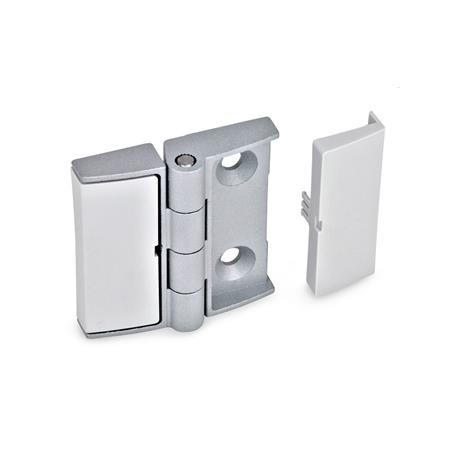

Form NJ - not adjustable.

Select Values to Buy:

Tech Spec:



GN238 Hinge, Zinc Die Cast, plastic Coated with Adjustable Alignment

These adjustable hinges allow perfect positioning and alignment of doors in their frames.

These hinges have adjusting disks made of tempered steel underneath the plastic cap, the disks, fitted with a cutting ring in the underside which cuts into the radial ribs of the die-cast zinc wings. When the countersunk screw is tightened a rigid and stable form-lock is created. This functional principle is patented and is capable of compensating dimensional variances in the fixing hole of as much as 1.5 mm (adjustment range). This is a substantial advantage during installation.

The cover conceals the adjusting screw and the fixing screw, and provides extra protection from dust and dirt particles.It has an attractive appearance.

We offer three different design variants, in two colours (black and silver) - adjustable on both sides, adjustable on one side and with normal holes for countersunk screws (non-adjustable).

Specification

Zinc die casting, plastic coated.

Black, RAL 9005, textured finish SW. Silver, RAL 9006, textured finish SR

Adjusting disc - Steel, hardened.

Cover - Plastic, black grey for type SW, light grey for type SR

Pin - Stainless Steel, AISI 303

RoHS compliant
