GN21
Levelling Foot, Stainless Steel, Turned Foot Plate
We are closed for the Bank Holiday. All orders placed over the weekend will be processed on Tuesday 27th May.
We are closed for the Bank Holiday. All orders placed over the weekend will be processed on Tuesday 27th May.
Please select desired options to reveal part number, price and availability
Options
Type D0 - Fine turned, without rubber underlay.
Type D1 - Fine turned, with rubber underlay, inlaid, black.

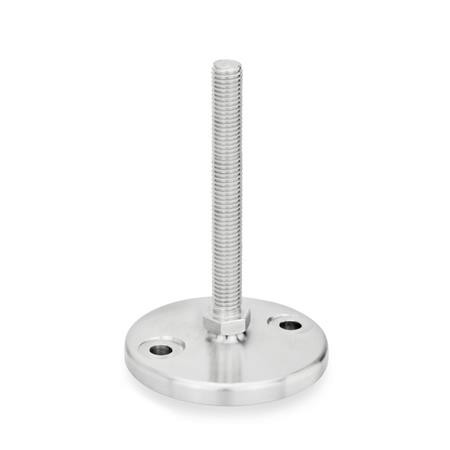

Version S - Without nut, external hexagon below.

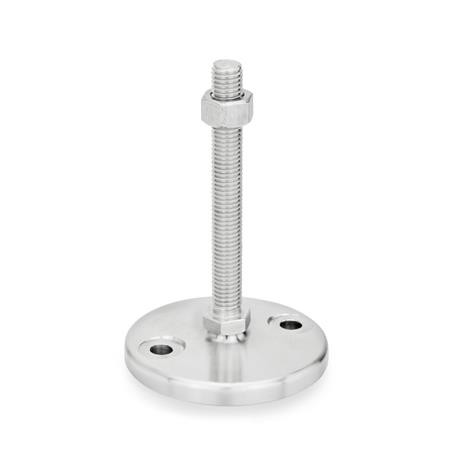

Version SK - With nut, external hexagon below.

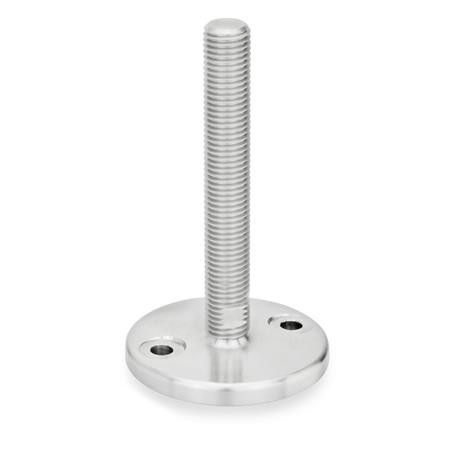

Version T - Without nut, wrench flat below.

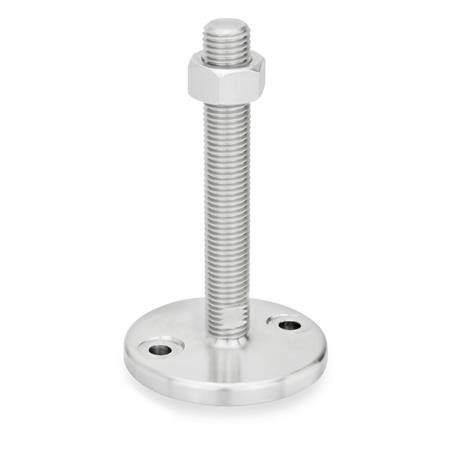

Version TK - With nut, wrench flat below.

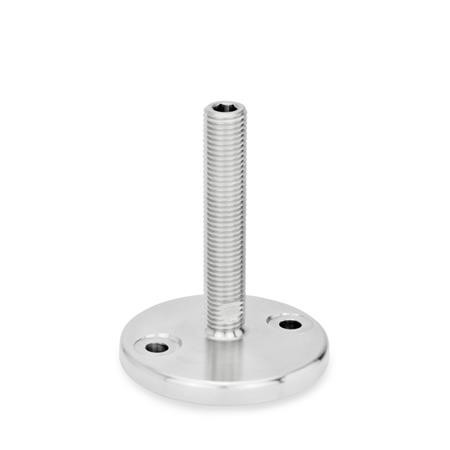

Version U - Without nut, wrench flat below, hexagon socket above.

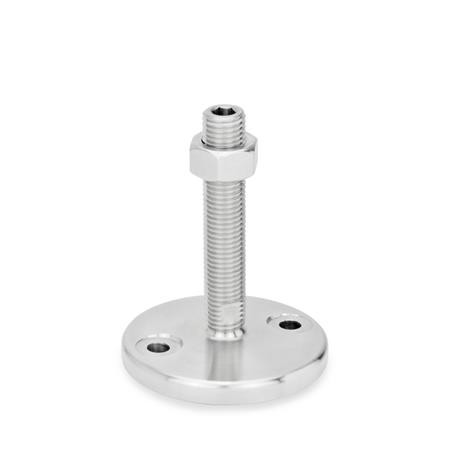

Version UK - With nut, wrench flat below, hexagon socket above.
Version V - Without nut, wrench flat below external hexagon above.
Version VK - With nut, wrench flat below, external hexagon above.

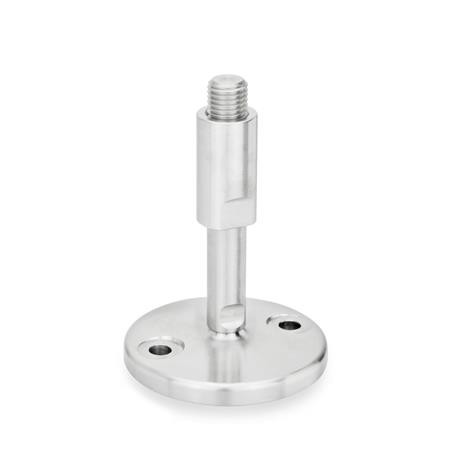

Version W - With adjustable sleeve, covered thread, wrench flat below.

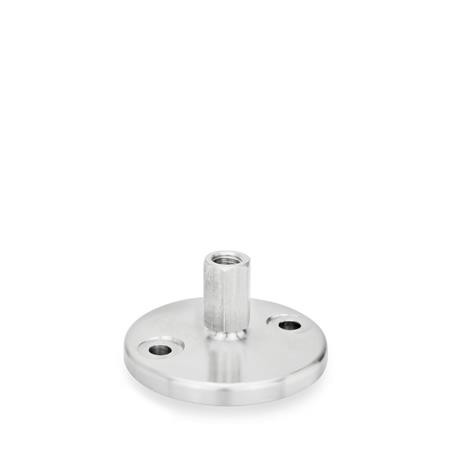

Version XV - External hexagon, female thread.
Product Description

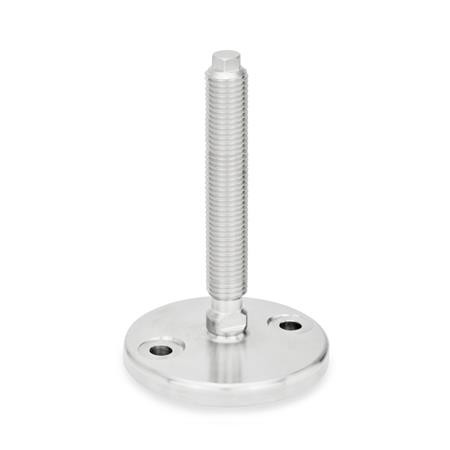

GN23 Levelling Foot, Stainless Steel, Turned Foot Plate & Fixing Bores.
This stainless steel levelling foot, GN 23, with fixing bores in the foot, is ideal for use in cleanrooms, e.g. in the food & medical industries.
Levelling feet on machinery or equipment provide an ideal solution to vibration, wear and noise problems. They are used to provide a stable, firm base and prevent tipping and movement of machinery during use.
These levelling feet will be delivered mounted and are not removable.
Specification
Base plate - Stainless Steel, AISI 304
Threaded stem - Stainless Steel, AISI 303
Hexagon nut ISO 4032 - Stainless Steel, AISI 304
Rubber inlay - Inlaid, Perbunan (NBR), 70 Shore A
