GN3136 Folding Handles, Steel, Stainless Steel
Choose your Part
Please select desired options to reveal part number, price and availability
Product Description
GN3136 Folding Handles, Steel, Stainless Steel
Folding handles GN 3136 are used for pulling out drawers or lifting boxes and containers. When in use, the swivel handle strikes the sheet metal housing at around 90 and then returns to its rest position by gravity.
Due to the simple design, the stamped and bent parts can have larger tolerances. Appropriate compensation measures should therefore be considered in the design.
Specification

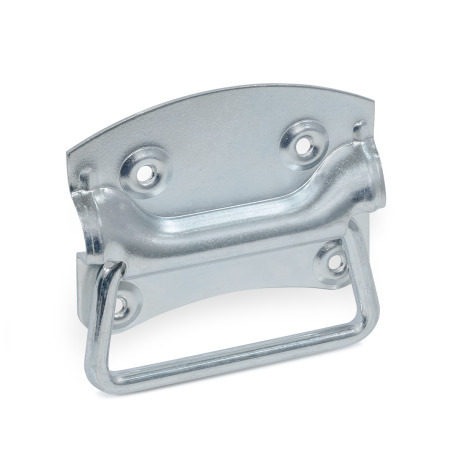

- Steel, zinc plated, blue passivates, ST

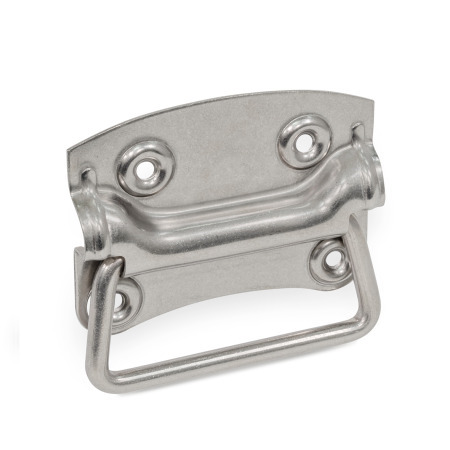

- Stainless steel AISI 304, plain finish NI
CAD Viewer
Technical Data
