GN313 Spring Bolt, Stainless Steel, Plastic Knob

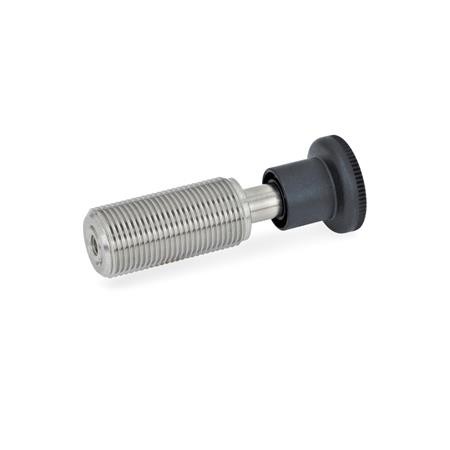

Type A - without lock nut, with knob.

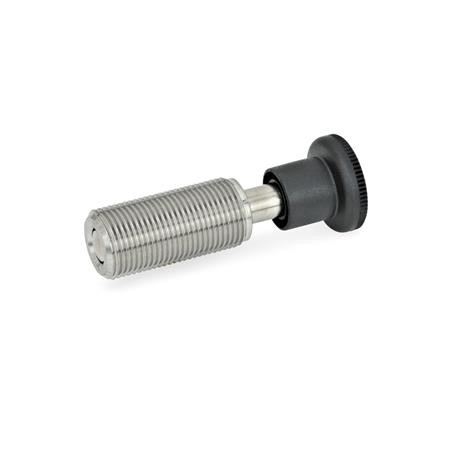

Type AK - with lock nut, with lifting knob.

Type D - without lock nut, without knob.

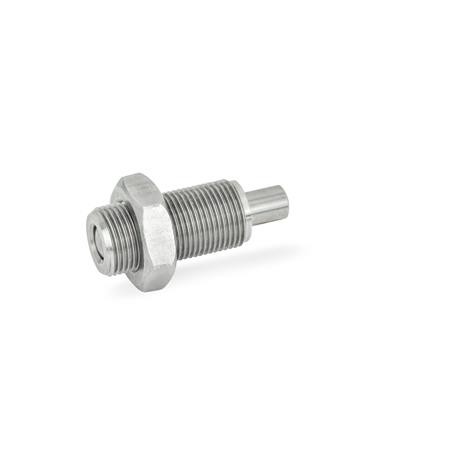

Type DK - with lock nut, without knob.

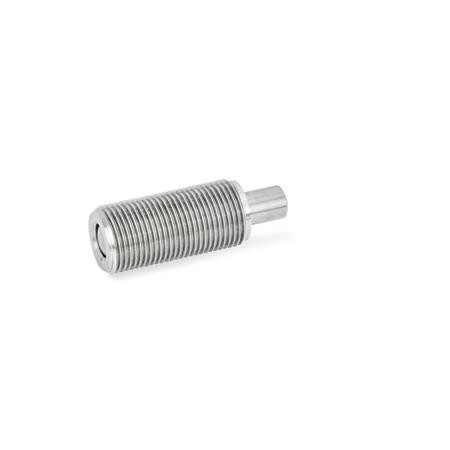

Identification 1 Pin without internal thread.

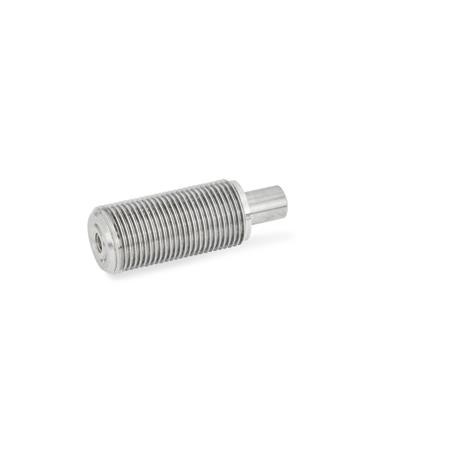

Identification 2 Pin with internal thread.

Select Values to Buy:

Tech Spec:



GN313 Spring bolts, Stainless Steel, Plastic Knob

The plunger of the these stainless steel spring bolts does not protrude in the inoperative position.

They can be operated manually or in Type D and DK mechanically (pneumatic cylinder, cam plate, etc.) when it will protrude only as long as it is operated.

Using the internal thread at identification 2 on the pressure side, special pressure bolts or a rod arrangement can be operated, for example.

Specification

Threaded socket - Stainless Steel NI, blackened.

Plunger - Stainless Steel NI AISI 303, chemically nickel plated.

Knob - Plastic (Polyamide PA), matt black, not removable.

Select / Deselect Visible Columns
Close
Hided1Show
HideTypeShow
HideId. No.Show
HideMaterialShow
Hided2Show
Hided3Show
Hided4Show
Hidel1Show
Hidel2Show
Hidel3Show
Hidel4Show
HidetShow
HideSpring load in N initialShow
HideSpring load in N endShow
PartCoded1TypeId. No.Materiald2d3d4l1l2l3l4tSpring load in N initialSpring load in N endMass

GN313-5-A-1-NI5A1NIM10x1M316622422977180.013
GN313-5-AK-1-NI5AK1NIM10x1M316622422977180.01
GN313-5-D-1-NI5D1NIM10x1M316622422977180.011
GN313-5-DK-1-NI5DK1NIM10x1M316622422977180.01
GN313-5-A-2-NI5A2NIM10x1M316622422977180.013
GN313-5-AK-2-NI5AK2NIM10x1M316622422977180.001
GN313-5-D-2-NI5D2NIM10x1M316622422977180.011
GN313-5-DK-2-NI5DK2NIM10x1M316622422977180.15
GN313-6-A-1-NI6A1NI"M12x1,5"M419726493578210.021
GN313-6-AK-1-NI6AK1NI"M12x1,5"M419726493578210.02
GN313-6-D-1-NI6D1NI"M12x1,5"M419726493578210.018
GN313-6-DK-1-NI6DK1NI"M12x1,5"M419726493578210.01
GN313-6-A-2-NI6A2NI"M12x1,5"M419726493578210.02
GN313-6-AK-2-NI6AK2NI"M12x1,5"M419726493578210.03
GN313-6-D-2-NI6D2NI"M12x1,5"M419726493578210.017
GN313-6-DK-2-NI6DK2NI"M12x1,5"M419726493578210.03
GN313-8-A-1-NI8A1NI"M16x1,5"M5239346548911320.049
GN313-8-AK-1-NI8AK1NI"M16x1,5"M5239346548911320.06
GN313-8-D-1-NI8D1NI"M16x1,5"M5239346548911320.043
GN313-8-DK-1-NI8DK1NI"M16x1,5"M5239346548911320.06
GN313-8-A-2-NI8A2NI"M16x1,5"M5239346548911320.047
GN313-8-AK-2-NI8AK2NI"M16x1,5"M5239346548911320.065
GN313-8-D-2-NI8D2NI"M16x1,5"M5239346548911320.042
GN313-8-DK-2-NI8DK2NI"M16x1,5"M5239346548911320.06
GN313-10-A-1-NI10A1NI"M20x1,5"M628114378571218430.1
GN313-10-AK-1-NI10AK1NI"M20x1,5"M628114378571218430.13
GN313-10-D-1-NI10D1NI"M20x1,5"M628114378571218430.086
GN313-10-DK-1-NI10DK1NI"M20x1,5"M628114378571218430.12
GN313-10-A-2-NI10A2NI"M20x1,5"M628114378571218430.092
GN313-10-AK-2-NI10AK2NI"M20x1,5"M628114378571218430.12
GN313-10-D-2-NI10D2NI"M20x1,5"M628114378571218430.083
GN313-10-DK-2-NI10DK2NI"M20x1,5"M628114378571218430.11
