GN342.1 Levelling Foot, Steel, Anti Vibration Mounting

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type SV with vibration absorbing insert Sylomer V12

CAD Viewer Technical Data

Product description

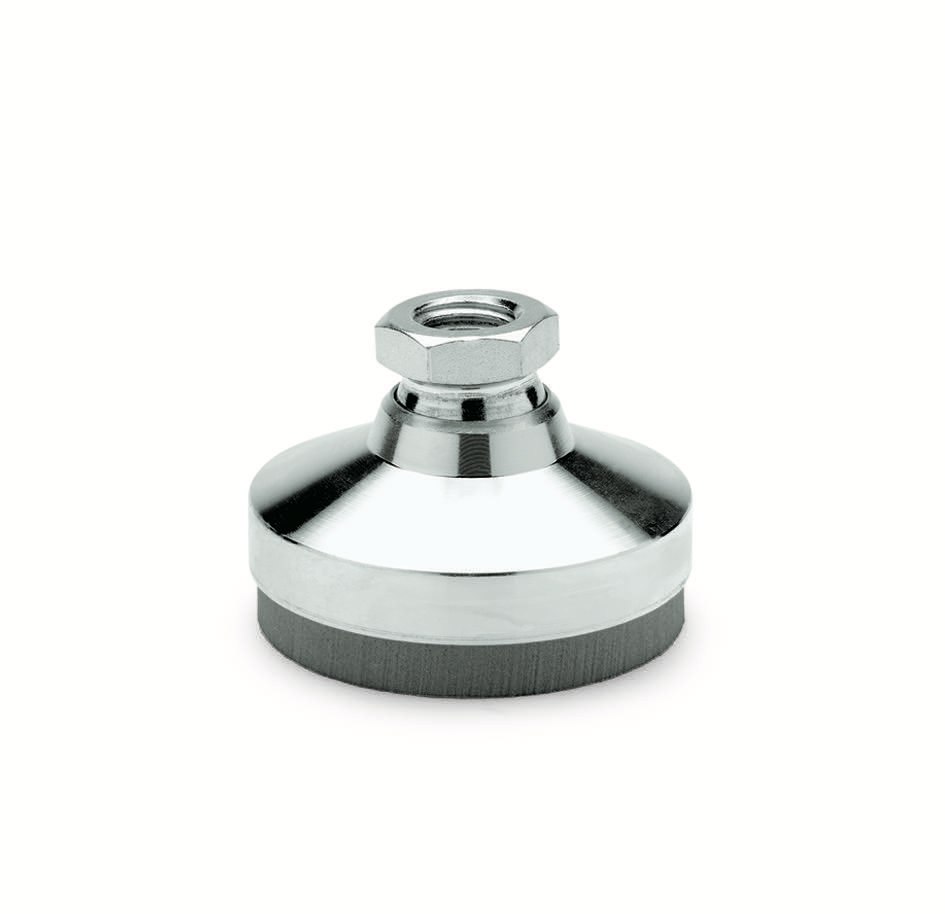

GN342.1 Levelling Foot, Steel, Anti Vibration Mounting

The specified load in the above table is a recommendation up to which the damping insert can be permanently subjected.

This static load equals a thrust on the area of 0,4 N/mm2, at which the damping material reaches its optimum dynamic damping ability.
This also takes into account an additional load up to 0,6 N/mm2 in the event of a dynamic load.

Specification

Steel Tensile strength 500 N/mm2
zinc plated, blue passivated
Damping element, PUR-elastomer (Sylomer V12) anti-slip, grey, glued in housing, oil resistant, operating range from -30C up to + 70C

Hexagon nut ISO 4032 steel, zinc plated

SELECT HasTableOnOff FROM Series WHERE SeriesID=341
