GN343.1 Levelling Foot, Threaded Bush, Steel, Optional Plastic Cap

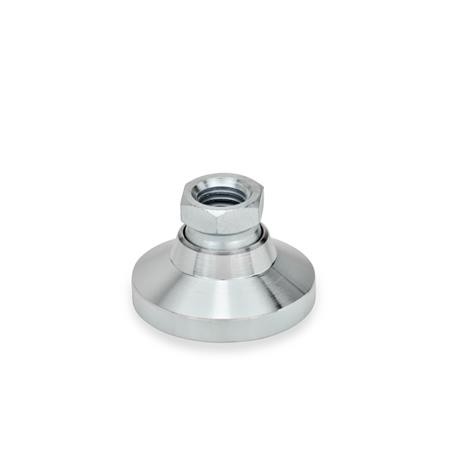

Type OS - without plastic cap

Type KS - with plastic cap, gliding

Type KR - with plastic cap, non-gliding

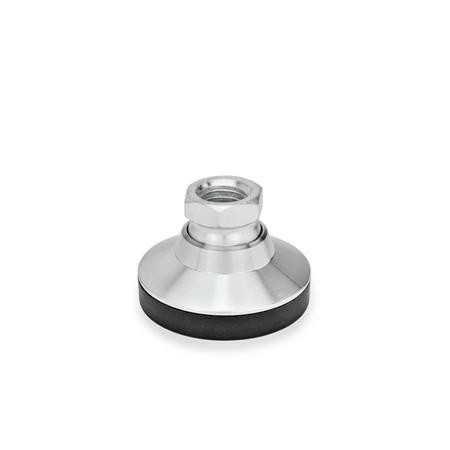

Type KSE - with plastic cap, gliding, electrically conductive (antistatic)

Type KRE - with plastic cap, non-gliding, electrically conductive (antistatic)

Select Values to Buy:

Tech Spec:



GN 343.1 Levelling Foot, Threaded Bush, Steel, Optional Plastic Cap

GN343.1 is a levelling foot with smaller dimensions, ideal for use in restricted spaces or for smaller machinery.

The static load of the levelling feet GN343.1 is limited by the load capacity of the ball joint (tensile strength class 5.8).

The static load values (only valid for type OS, KS and KSE) in the below table refer to a net vertical load in relation to the levelling foot. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.

Levelling feet GN 343.1 cannot be disassembled.

Specification

Steel, tensile strength class 5.8, zinc plated, blue passivated.

Type KS/KSE - Plastic cap polyacetal (POM), KS: white (natural color) RAL 9001, KSE: black, electrically conductive, surface resistivity < 106Ω, volume resistivity < 107Ω, DIN EN 61340-5-1 / 61340-2-3

Type KR/KRE - Plastic cap elastomer (TPE), 78 Shore A ≈ KR: black. KRE: black, electrically conductive, surface resistivity < 106Ω, volume resistivity < 107Ω, DIN EN 61340-5-1 / 61340-2-3

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2Typel2l3l4l5A/Ft Min.MaterialMass

GN343.1-25-M6-OS25M6OS1920.545.5129ST0.034
GN343.1-25-M6-KS25M6KS1920.545.5129ST0.031
GN343.1-25-M6-KR25M6KR1920.545.5129ST0.031
GN343.1-25-M6-KSE25M6KSE1920.545.5129ST0.031
GN343.1-25-M6-KRE25M6KRE1920.545.5129ST0.031
GN343.1-25-M8-OS25M8OS1920.545.5129ST0.03
GN343.1-25-M8-KS25M8KS1920.545.5129ST0.032
GN343.1-25-M8-KR25M8KR1920.545.5129ST0.029
GN343.1-25-M8-KSE25M8KSE1920.545.5129ST0.03
GN343.1-25-M8-KRE25M8KRE1920.545.5129ST0.03
GN343.1-32-M8-OS32M8OS2324.556.5129ST0.06
GN343.1-32-M8-KS32M8KS2324.556.5129ST0.05
GN343.1-32-M8-KR32M8KR2324.556.5129ST0.05
GN343.1-32-M8-KSE32M8KSE2324.556.5129ST0.011
GN343.1-32-M8-KRE32M8KRE2324.556.5129ST0.011
GN343.1-32-M10-OS32M10OS2324.556.51510.5ST0.065
GN343.1-32-M10-KS32M10KS2324.556.51510.5ST0.065
GN343.1-32-M10-KR32M10KR2324.556.51510.5ST0.06
GN343.1-32-M10-KSE32M10KSE2324.556.51510.5ST0.065
GN343.1-32-M10-KRE32M10KRE2324.556.51510.5ST0.06
GN343.1-40-M10-OS40M10OS2627.567.51510.5ST0.1
GN343.1-40-M10-KS40M10KS2627.567.51510.5ST0.019
GN343.1-40-M10-KR40M10KR2627.567.51510.5ST0.101
GN343.1-40-M10-KSE40M10KSE2627.567.51510.5ST0.019
GN343.1-40-M10-KRE40M10KRE2627.567.51510.5ST0.1
GN343.1-40-M12-OS40M12OS2627.567.51711.5ST0.11
GN343.1-40-M12-KS40M12KS2627.567.51711.5ST0.105
GN343.1-40-M12-KR40M12KR2627.567.51711.5ST0.1
GN343.1-40-M12-KSE40M12KSE2627.567.51711.5ST0.11
GN343.1-40-M12-KRE40M12KRE2627.567.51711.5ST0.11
GN343.1-50-M10-OS50M10OS2829.578.51510.5ST0.18
GN343.1-50-M10-KS50M10KS2829.578.51510.5ST0.18
GN343.1-50-M10-KR50M10KR2829.578.51510.5ST0.166
GN343.1-50-M10-KSE50M10KSE2829.578.51510.5ST0.2
GN343.1-50-M10-KRE50M10KRE2829.578.51510.5ST0.166
GN343.1-50-M12-OS50M12OS2829.578.51711.5ST0.16
GN343.1-50-M12-KS50M12KS2829.578.51711.5ST0.175
GN343.1-50-M12-KR50M12KR2829.578.51711.5ST0.162
GN343.1-50-M12-KSE50M12KSE2829.578.51711.5ST0.175
GN343.1-50-M12-KRE50M12KRE2829.578.51711.5ST0.162
GN343.1-60-M12-OS60M12OS3637.58.5101711.5ST0.34
GN343.1-60-M12-KS60M12KS3637.58.5101711.5ST0.03
GN343.1-60-M12-KR60M12KR3637.58.5101711.5ST0.32
GN343.1-60-M12-KSE60M12KSE3637.58.5101711.5ST0.03
GN343.1-60-M12-KRE60M12KRE3637.58.5101711.5ST0.32
GN343.1-60-M16-OS60M16OS3637.58.5102416ST0.32
GN343.1-60-M16-KS60M16KS3637.58.5102416ST0.32
GN343.1-60-M16-KR60M16KR3637.58.5102416ST0.3
GN343.1-60-M16-KSE60M16KSE3637.58.5102416ST0.32
GN343.1-60-M16-KRE60M16KRE3637.58.5102416ST0.325
