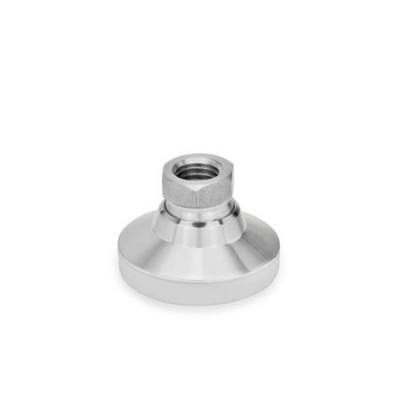

GN343.5 Levelling Foot, Stainless Steel, Threaded Bush





Type OS - without plastic cap

Type KS - with plastic cap, gliding

Type KR - with plastic cap, non-gliding

Type KSE - with plastic cap, gliding, electrically conductive (antistatic)

Type KRE - with plastic cap, non-gliding, electrically conductive (antistatic)



Select Values to Buy:

Tech Spec:



GN 343.5 Levelling Foot, Stainless Steel, Threaded Bust

The static load of the levelling feet GN343.5 is limited by the load capacity of the ball socket (AISI 303).

The static load values in the attached pdf table refer to a net vertical load in relation to the ball socket. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.

For higher loads levelling feet GN343.5 should be used in conjunction with screws of higher tensile strength. We recommend DIN 915 threaded studding with pressure pad. This pressure pad must be seated squarely at the bottom of the threaded hole, which will increase the load capacity of the ball in the socket.  Otherwise the load values apply only to types OS and KS.

Specifcation

Stainless Steel, AISI 303 fine turned.

Plastic caps:

Type KS - Technopolymer Polyacetal (POM) cream/white RAL 9001.

Type KR - Thermoplastic rubber (TPE) 73 Shore hardness, black.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1d2l2l3l4l5A/FtFormMass

GN343.5-25-M6-OSNI25M619205455129OS0.033
GN343.5-25-M6-KRNI25M619205455129KR0.03
GN343.5-25-M6-KSNI25M619205455129KS0.033
GN343.5-25-M6-KSENI25M619205455129KSE0.04
GN343.5-25-M6-KRENI25M619205455129KRE0.03
GN343.5-25-M8-OSNI25M819205455129OS0.035
GN343.5-25-M8-KRNI25M819205455129KR0.025
GN343.5-25-M8-KSNI25M819205455129KS0.029
GN343.5-25-M8-KSENI25M819205455129KSE0.029
GN343.5-25-M8-KRENI25M819205455129KRE0.03
GN343.5-32-M8-OSNI32M823245565129OS0.06
GN343.5-32-M8-KRNI32M823245565129KR0.057
GN343.5-32-M8-KSNI32M823245565129KS0.05
GN343.5-32-M8-KSENI32M823245565129KSE0.05
GN343.5-32-M8-KRENI32M823245565129KRE0.058
GN343.5-32-M10-OSNI32M102324556515105OS0.064
GN343.5-32-M10-KRNI32M102324556515105KR0.06
GN343.5-32-M10-KSNI32M102324556515105KS0.063
GN343.5-32-M10-KSENI32M102324556515105KSE0.065
GN343.5-32-M10-KRENI32M102324556515105KRE0.065
GN343.5-40-M10-OSNI40M102627567515105OS0.11
GN343.5-40-M10-KRNI40M102627567515105KR0.11
GN343.5-40-M10-KSNI40M102627567515105KS0.1
GN343.5-40-M10-KSENI40M102627567515105KSE0.1
GN343.5-40-M10-KRENI40M102627567515105KRE0.11
GN343.5-40-M12-OSNI40M122627567517115OS0.11
GN343.5-40-M12-KRNI40M122627567517115KR0.099
GN343.5-40-M12-KSNI40M122627567517115KS0.11
GN343.5-40-M12-KSENI40M122627567517115KSE0.11
GN343.5-40-M12-KRENI40M122627567517115KRE0.099
GN343.5-50-M10-OSNI50M102829578515105OS0.17
GN343.5-50-M10-KRNI50M102829578515105KR0.16
GN343.5-50-M10-KSNI50M102829578515105KS0.021
GN343.5-50-M10-KSENI50M102829578515105KSE0.021
GN343.5-50-M10-KRENI50M102829578515105KRE0.16
GN343.5-50-M12-OSNI50M122829578517115OS0.177
GN343.5-50-M12-KRNI50M122829578517115KR0.175
GN343.5-50-M12-KSNI50M122829578517115KS0.175
GN343.5-50-M12-KSENI50M122829578517115KSE0.175
GN343.5-50-M12-KRENI50M122829578517115KRE0.161
GN343.5-60-M12-OSNI60M1236375851017115OS0.34
GN343.5-60-M12-KRNI60M1236375851017115KR0.32
GN343.5-60-M12-KSNI60M1236375851017115KS0.03
GN343.5-60-M12-KSENI60M1236375851017115KSE0.301
GN343.5-60-M12-KRENI60M1236375851017115KRE0.32
GN343.5-60-M16-OSNI60M163637585102416OS0.325
GN343.5-60-M16-KRNI60M163637585102416KR0.305
GN343.5-60-M16-KSNI60M163637585102416KS0.325
GN343.5-60-M16-KSENI60M163637585102416KSE0.325
GN343.5-60-M16-KRENI60M163637585102416KRE0.305
