GN343.7 Levelling Feet Foot Plastic High Load

Standard Machine Elements > Levelling Feet, Lifting Gear and Rubber Elements > Levelling Feet
< Previous Product Next Product >

GN343.7 Levelling Foot, Plastic, Threaded Bush, High Load, Anti Slip

Type A without rubber underlay

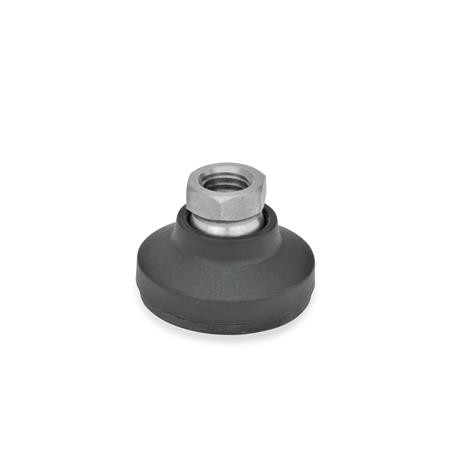

Type G with rubber underlay

Select Values to Buy:

Tech Spec:



GN343.7 Levelling Foot, Plastic, Threaded Bush, High Load, Anti Slip

Levelling feet GN343.7 are capable of withstanding high static loads through the use of a high density plastic material coupled with a design which distributes the load over a larger area.

Exceeding the static values specified in the above table could lead to failure of the plastic component.

The above values have been arrived at by a series of load tests whereby a defined number of levelling feet were subjected to a vertical load over a defined period.

Depending on the application and load a safety margin has to be taken into account to ensure that the load is less than the permitted values given in the table. We cannot, however entertain any claims for damage caused by the use of these levelling feet.

Specification

Foot - Plastic Technopolymer (Polyamide PA) glass fibre reinforced, black, matt, resistance up to 100°C

Threaded stud - Stainless Steel AISI 303

Hexagon nut - Stainless Steel AISI 304

Rubber underlay NBR (PERBUNAN) 70 Shore hardness black

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2Typel2l3A/FtStatic load in kNMaterialMass

GN343.7-25-M6-A25M6A18.541295PA0.014
GN343.7-25-M6-G25M6G18.541295PA0.018
GN343.7-25-M8-A25M8A18.541295PA0.014
GN343.7-25-M8-G25M8G18.541295PA0.016
GN343.7-32-M8-A32M8A22.551297PA0.015
GN343.7-32-M8-G32M8G22.551297PA0.02
GN343.7-32-M10-A32M10A22.551510.57PA0.022
GN343.7-32-M10-G32M10G22.551510.57PA0.026
GN343.7-40-M10-A40M10A25.561510.510PA0.026
GN343.7-40-M10-G40M10G25.561510.510PA0.035
GN343.7-40-M12-A40M12A25.561711.510PA0.033
GN343.7-40-M12-G40M12G25.561711.510PA0.039
GN343.7-50-M10-A50M10A27.571510.510PA0.024
GN343.7-50-M10-G50M10G27.571510.510PA0.044
GN343.7-50-M12-A50M12A27.571711.510PA0.039
GN343.7-50-M12-G50M12G27.571711.510PA0.049
GN343.7-60-M12-A60M12A35.58.51711.514PA0.039
GN343.7-60-M12-G60M12G35.58.51711.514PA0.068
GN343.7-60-M16-A60M16A35.58.5241614PA0.078
GN343.7-60-M16-G60M16G35.58.5241614PA0.085
