GN41 Levelling Feet Foot Stainless Steel GN440.5

All Stainless Steel Products
Standard Machine Elements > Levelling Feet, Lifting Gear and Rubber Elements > Levelling Feet
< Previous Product Next Product >

GN41 Levelling Foot, Stainless Steel, Optional and Lock Nut

images/300/GN41_drawing_H.png

Type D0 - blank, ground, without rubber underlay

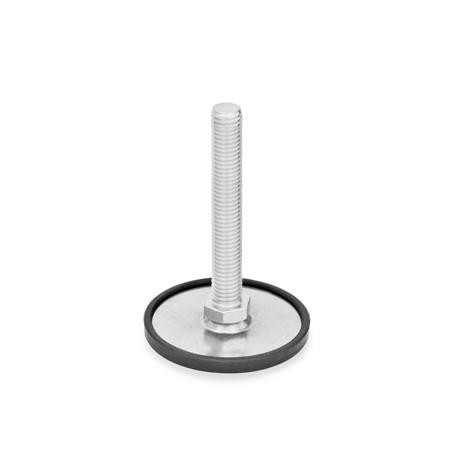

Type D1 - blank, ground, rubber clipped on, black

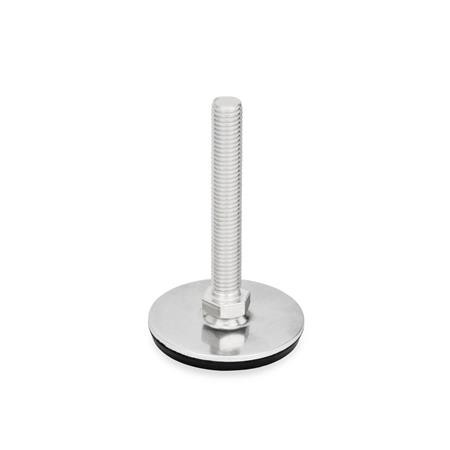

Type D3 - blank, ground, rubber vulcanised, black

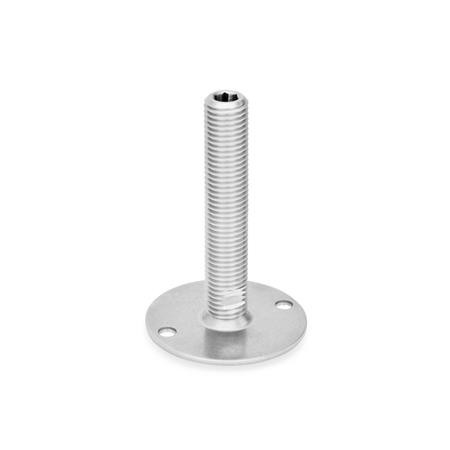

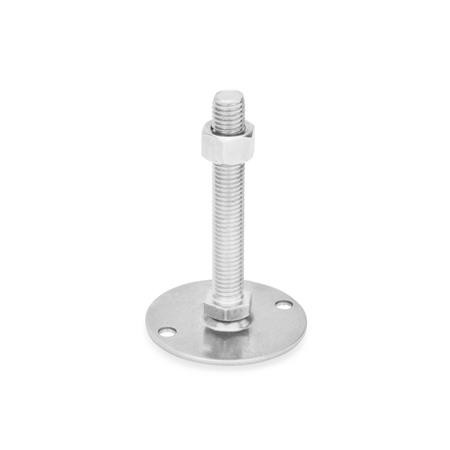

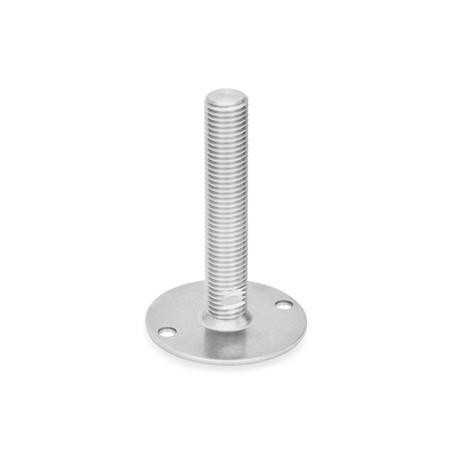

Type B0 - without rubber underlay, with 2 fixing holes

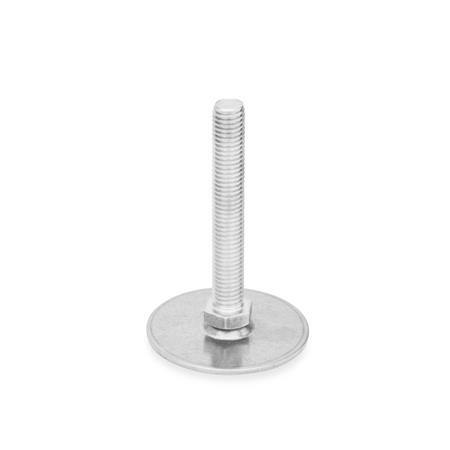

Version - without locknut, external hexagon below

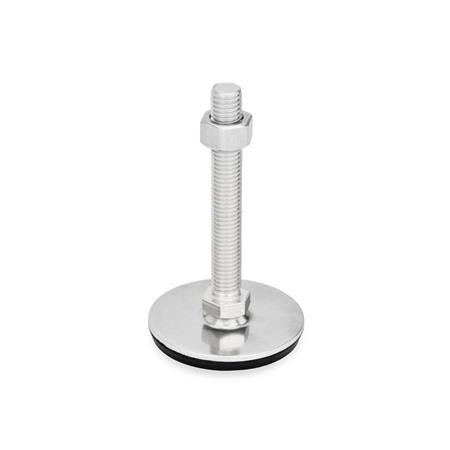

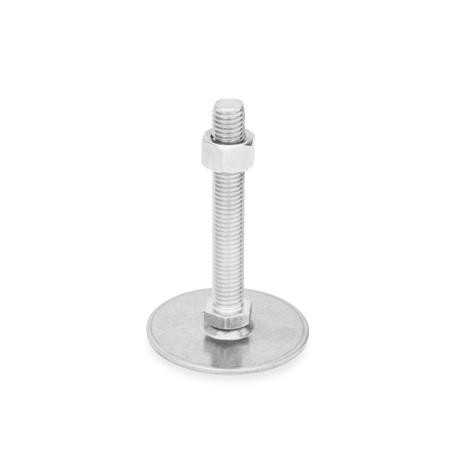

Version SK - with locknut, external hexagon below

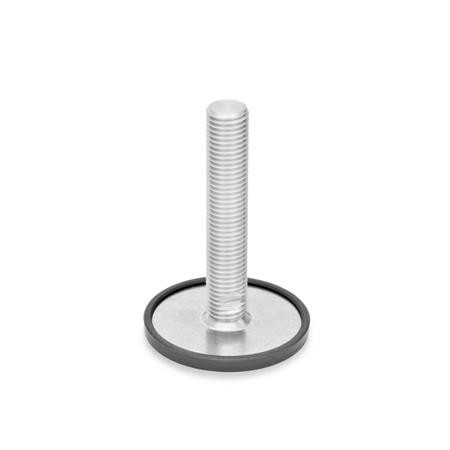

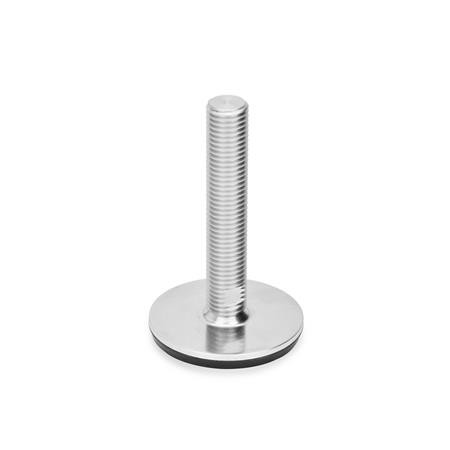

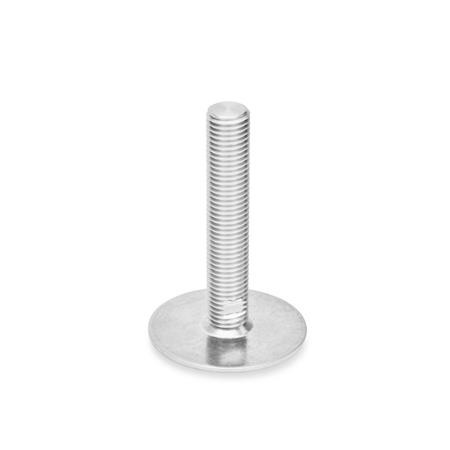

Version - without locknut, flat width below

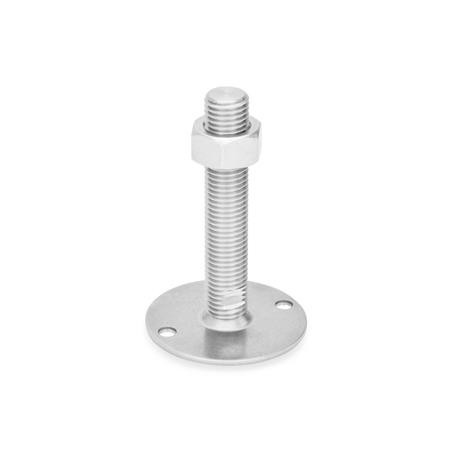

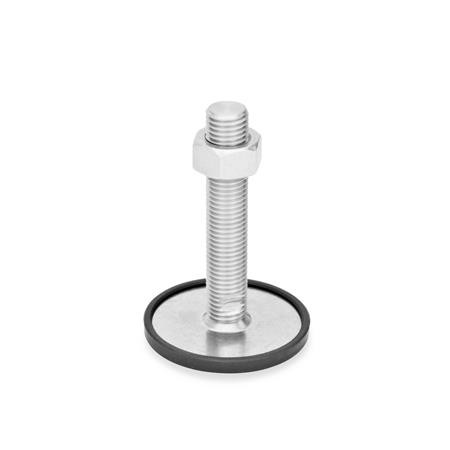

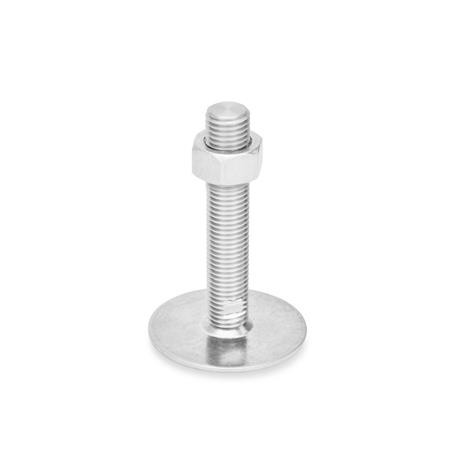

Version TK - with locknut, flat width below

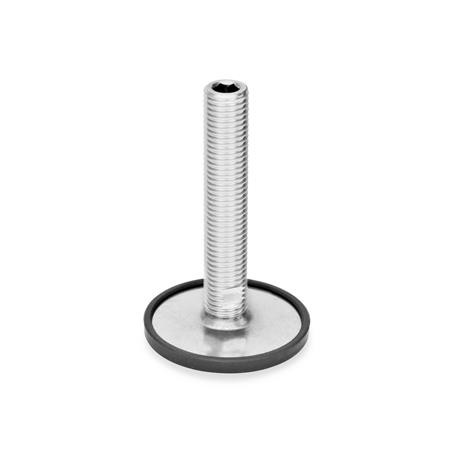

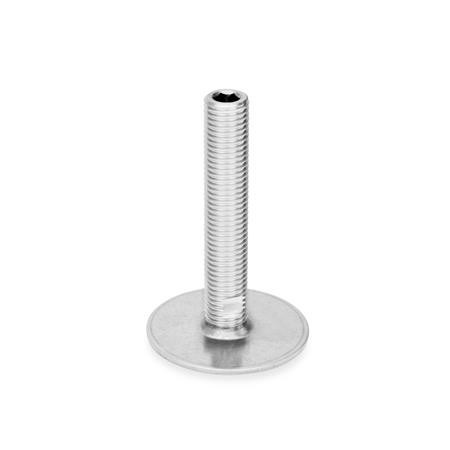

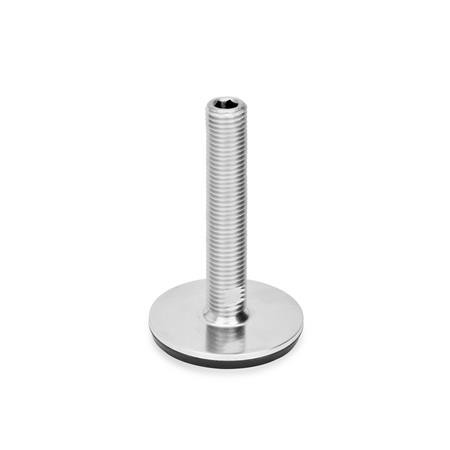

Version - without locknut, flat width below, internal hexagon above

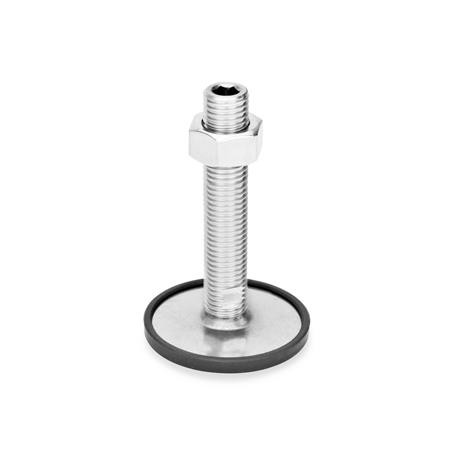

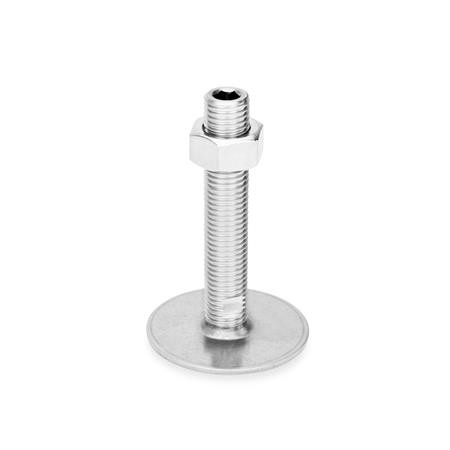

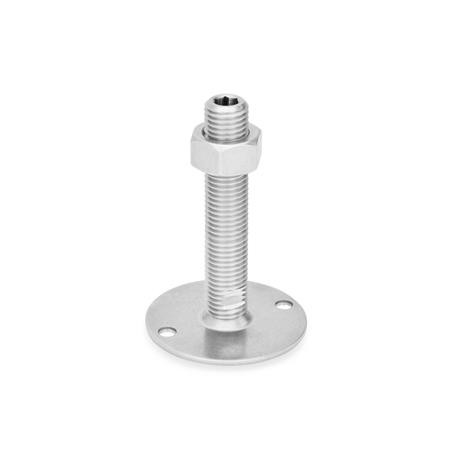

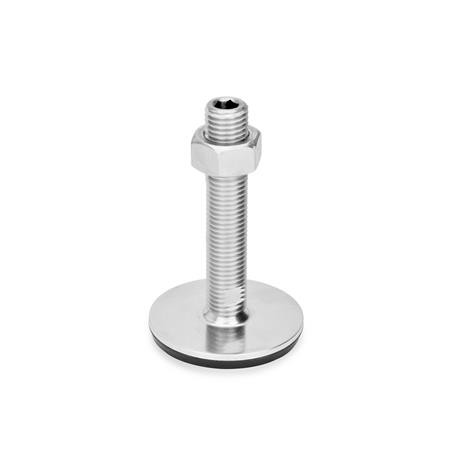

Version UK - with locknut, flat width below, internal hexagon above

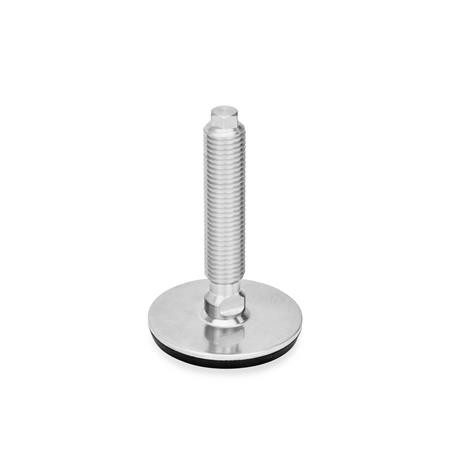

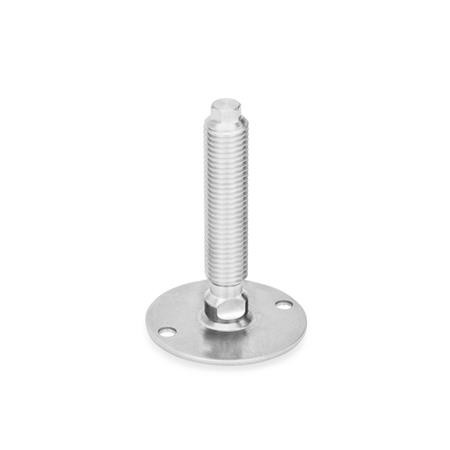

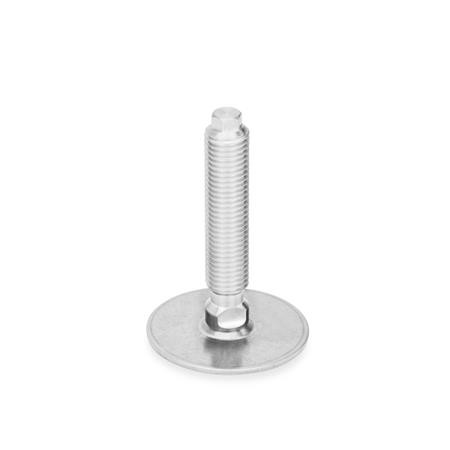

Version V - without locknut, flat width below, external hexagon above

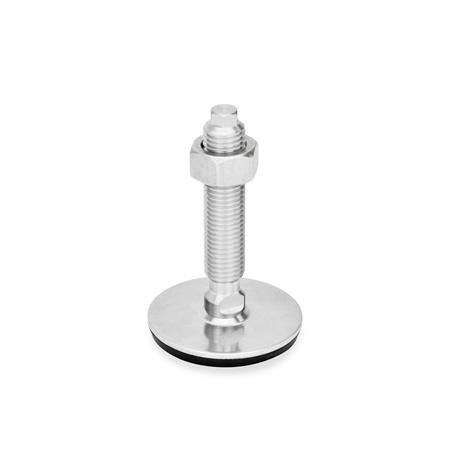

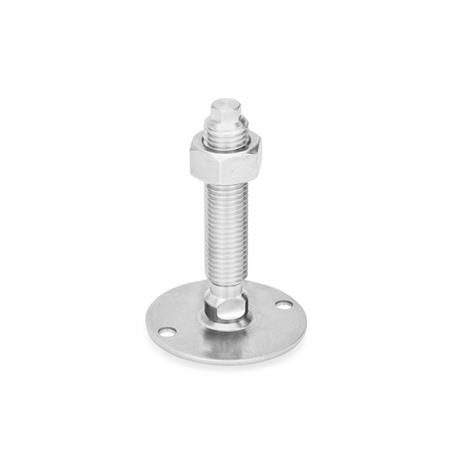

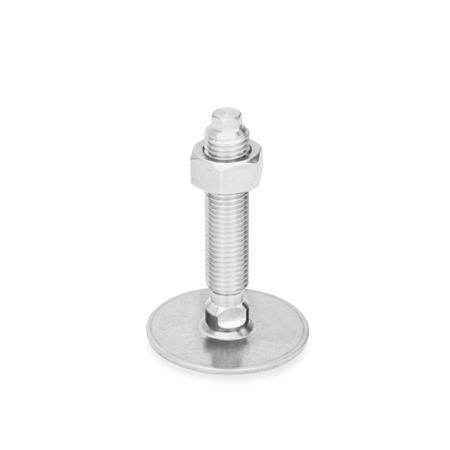

Version VK - without lock, flat width below, external hexagon above

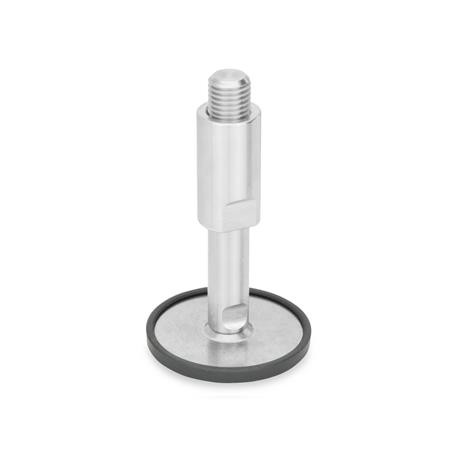

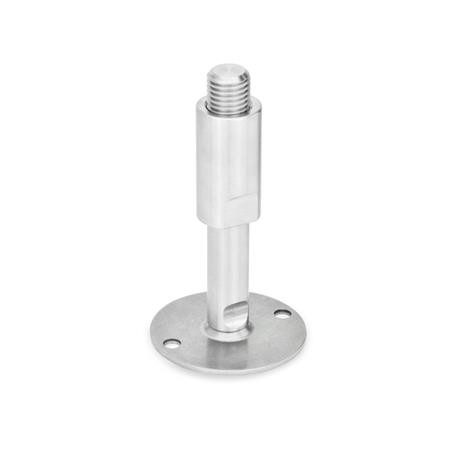

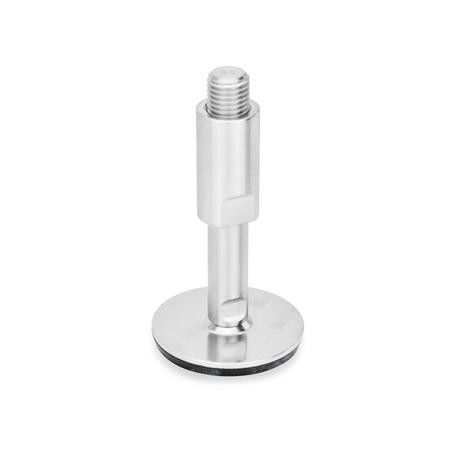

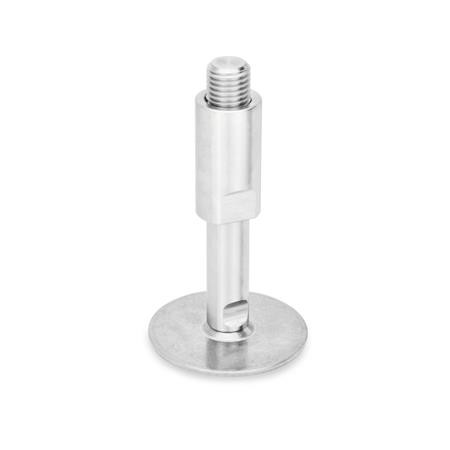

Version W - with adjustable sleeve

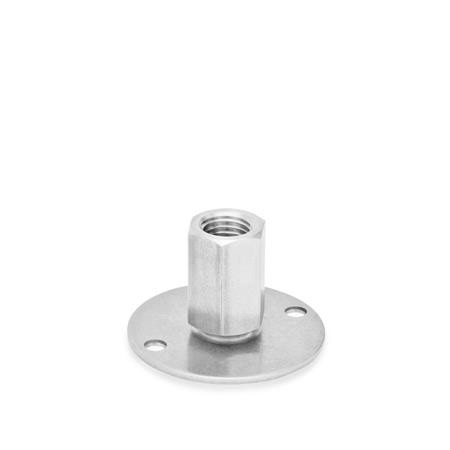

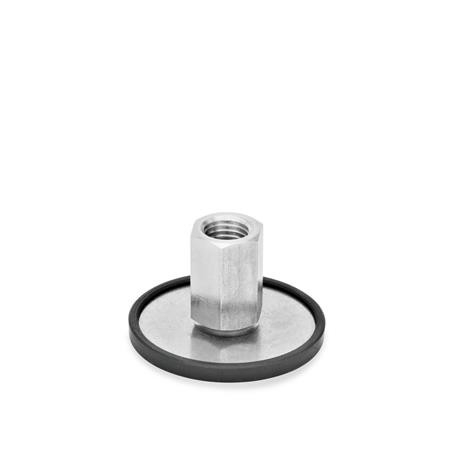

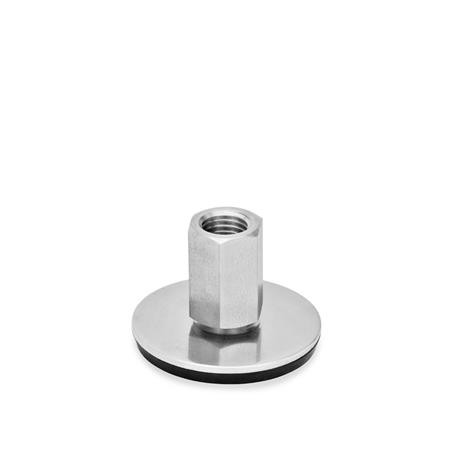

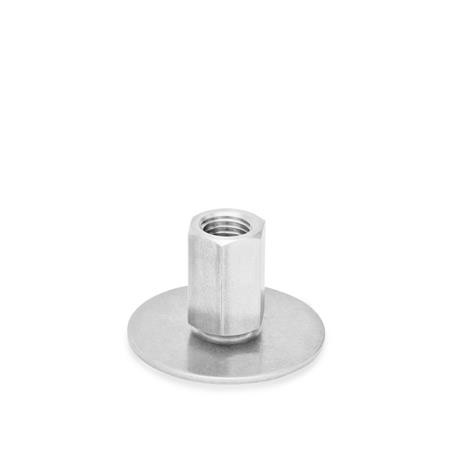

Version - with female thread

Select Values to Buy:

Tech Spec:



GN41 Levelling Foot, Stainless Steel, Optional and Lock Nut

These levelling feet, GN 41 are used for the levelling of machinary on uneven surfaces, and also assist with the reduction of noise and vibration.

Being manufactured from stainless steel, they are ideal for use in clean room environments, such as found in the food, pharmaceutical and medical industries and their associated processing and packaging.

They are delivered ready mounted and cannot be unassembled.

Specification

Base plate - Stainless Steel AISI 304

Threaded stem -Stainless Steel AISI 303

Hexagon nut ISO 4032 - Stainless Steel AISI 304

Rubber cap - clipped on, black, Santoprene® (TPE), 80 ≈ Shore A

Rubber underlay - vulcanised, black, Perbunan® (NBR), 70±5 Shore A

 RoHS compliant

Standard part number GN440.5 has been changed! Because of a change of the standard part number your input is no longer valid. Your search was automatically changed to the new standard part number GN41.
