GN425.8
Folding Handle Recess Tray Steel/ Stainless Steel
Please select desired options to reveal part number, price and availability
Options

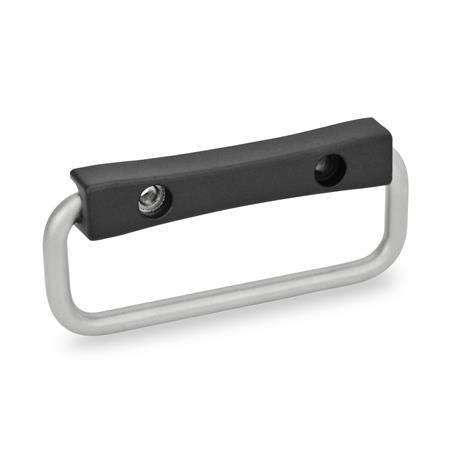

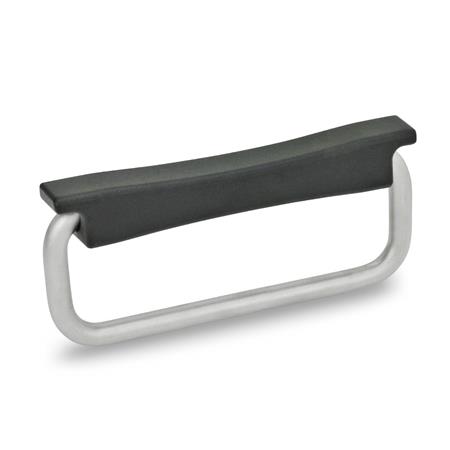

Type A - Thread for fixing from the back

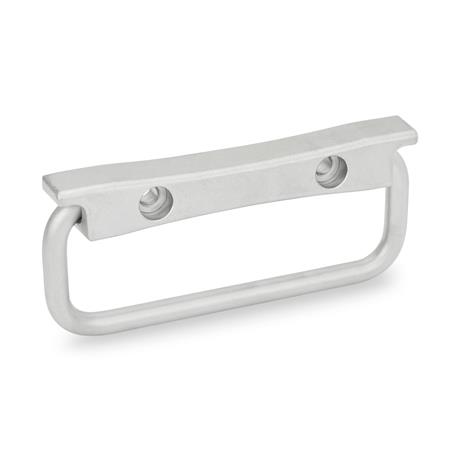

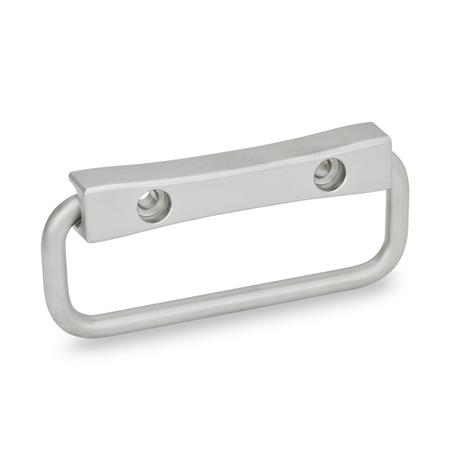

Type B - Through-hole for fixing from the operator's side

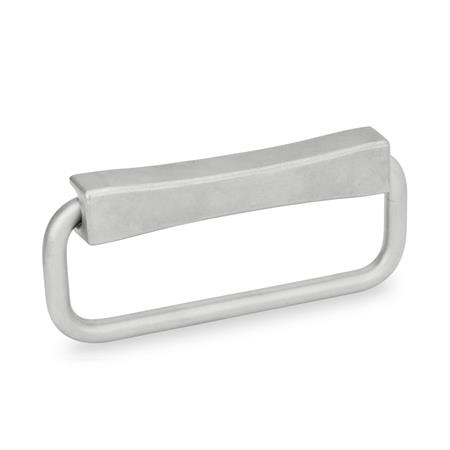

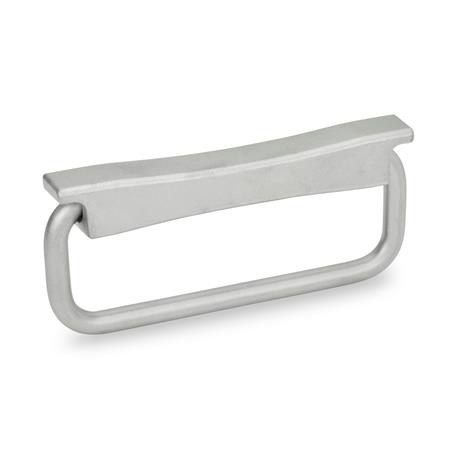

Type C - Fixed from the operator's side by means of welding

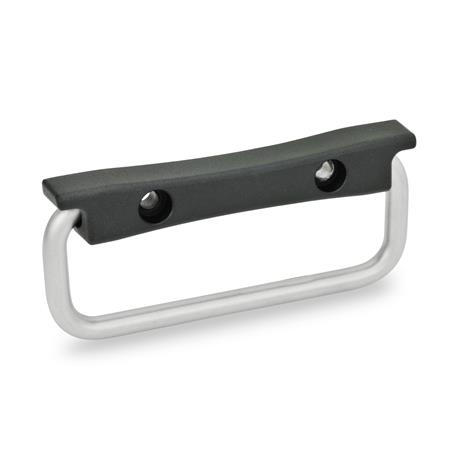

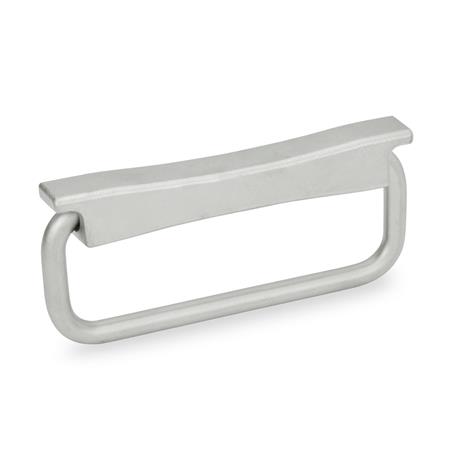

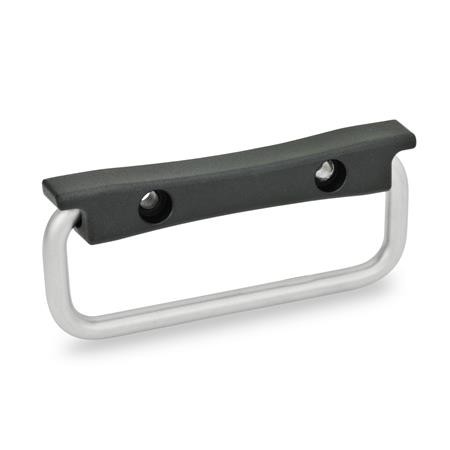

Identification no.1 - Handle 90° foldaway
Identification no.2 - Handle 90° foldaway, with retaining spring

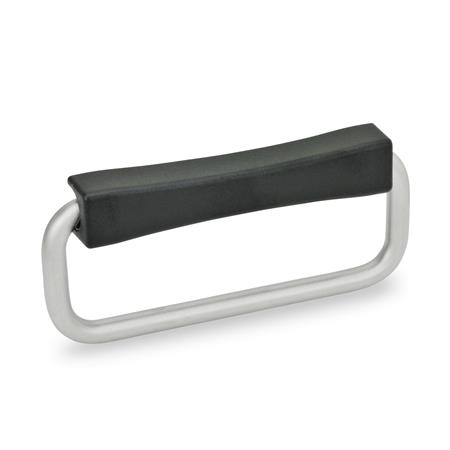

Identification no.3 - Handle 180° foldaway
Identification no.4 - Handle 180° foldaway, with retaining spring
Product Description
GN425.9 Stainless Steel Folding Handles
Folding handles GN 425.9 are used where the handle must only protrude a short distance in the resting position.
Folding handles with identification numbers 1 and 2 are suitable for side access, as these have a 90° limit stop. If used from above, identification numbers 3 and 4 with a handle which can fold freely through 180° are a better version.
The retaining springs of numbers 2 and 4 keep the handle in any position. This keeps the handle in a position which can be easily accessed and prevents noise as a result of vibration in the resting position.
The handle and the retaining springs are secured by mounting the attachment across the entire surface. All components are supplied unassembled.
