GN437.4 Hinge, Zinc Die Cast, with Detent

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A1 - Indexing position, -90, 0, 90 and 180, Holding torque 0,5 Nm

Type A2 - Indexing position, -90, 0, 90 and 180, Holding torque 1 Nm

Type A3 - Indexing position, -90, 0, 90 and 180, Holding torque 2,5 Nm

Type A4 - Indexing position, -90, 0, 90 and 180, Holding torque 4 Nm

Type C2 - Indexing position, -3 and 117, Holding torque 0,5 Nm

Type C2 - Indexing position, -3 and 117, Holding torque 1 Nm

Type C2 - Indexing position, -3 and 117, Holding torque 2,5 Nm

Type C2 - Indexing position, -3 and 117, Holding torque 4 Nm

Product Description

GN437.4 Hinge, Zinc Die Casting, with Detent

Hinges GN 437.4 with detent, hold door and covers in the given indexing position without additional mechanics.

This is particularly advantageous when machines and systems must be frequently opened and closed for loading and unloading, and it is also useful for servicing or repairs. Undesirable independent opening and closing is prevented.

The -3 of the type C2 moreover ensures that the door or cover presses slightly against the housing frame when closed.

Specification

• Hinge leafs - zinc die cast, powder coated, ZD

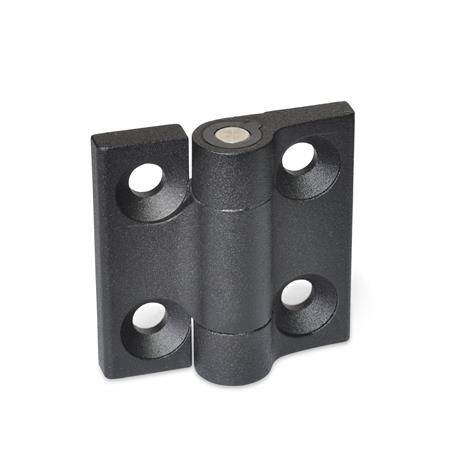

  • Black, RAL 9005, textured finish SW

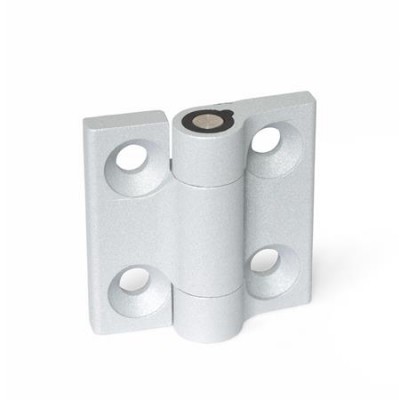

  • Silver. RA 9006, textured finish SR
• Locking elements / Cover cap
• plastic, polyacetal (POM) for id No. 1 / 2 operating temperature up to 80
• Stainless steel AISI 630 for id No. 3 / 4

• Pin - stainless steel AISI 303
• Pressure spring
  • Spring steel for id No. 1 / 2
  • Stainless steel AISI 301 for id no 3 / 4

Accessory

Spacer plates GN2370

Plates GN2372
