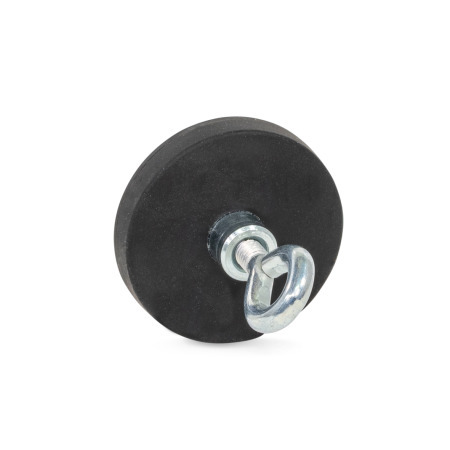

GN51.10 Retaining Magnet, Neodymium-Iron-Boron, with Hook / Eyelet, with Rubber Jacket

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

GN51.10 Retaining Magnet, Neodymium-Iron-Boron, with Hook / Eyelet, with Rubber Jacket

The retaining magnets GN 51.10 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberised magnetic surface.

The rubber coating protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.

Specification

• Magnet - NdFeB Neodymium, iron, boron, operating temperature up to 80º C
• Steel part - zinc plated
• Hook / eyelet - steel, zinc plated
• Rubber jacket - thermoplastic elastomer (TPE), black, hardness 80 Shore A SW

Accessories

Holding disks GN70
Adhesive disks GN70.1

On Request

Other colours
Other Shore hardnesses
